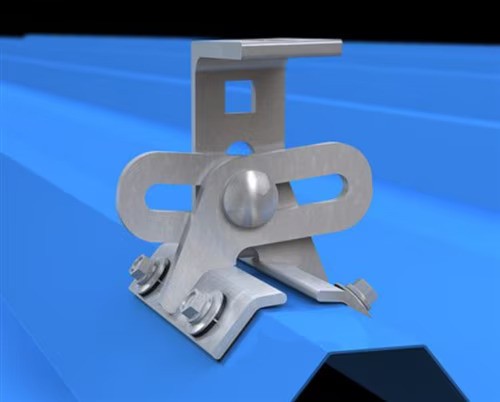

S-5! ProteaBracket-AL Aluminum Bracket

$21.77 USD
$21.77 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Trapezoidal Profile Compatibility: Specifically designed to attach PV direct-attach profiles or racking rails (including IronRidge XR and ClickFit) to exposed-fastener trapezoidal sheet metal roofs.
✔️ Adjustable Base Width: Features an adjustable attachment hinge/foot that expands to fit varying rib widths, heights, and angles across different metal deck profiles.
✔️ Pre-Applied EPDM Gasket Seal: Includes factory-installed, weather-resistant EPDM rubber gaskets at fastener penetration points to prevent water intrusion.
✔️ Direct Fastener Penetration: Secures into metal roofing sheets using self-drilling, self-tapping screws with sealing washers, transferring loads into the roof sheet without requiring wood rafter alignment.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    S-5!, ProteaBracket, Aluminum, for Metal Trapezoidal Rib, includes L-Flange, Bolt and 4 x Self-Tap SS screws, ProteaBracket-AL

    • SKU: 260-0588
    • Manufacturer Part #: ProteaBracket-AL
    • Item Weight: 0.395 lb
    • Dimensions (LxWxH): 3 x 3 x 2.75 inches

    Specifications:

    • 34% lighter than similar stainless steel alternatives – saves on shipping
    • Stronger L-Foot
    • L-Foot allows for side-mount rails in its vertical orientation OR bottom-mount rails or PVKIT in its horizontal orientation
    • Corrosion-resistant materials
    • Adjustable – fits rib profiles up to 3″
    • Peel-and-Stick prevents accidental shifting during installation
    • Fully pre-assembled
    • 4 self-piercing screws included
