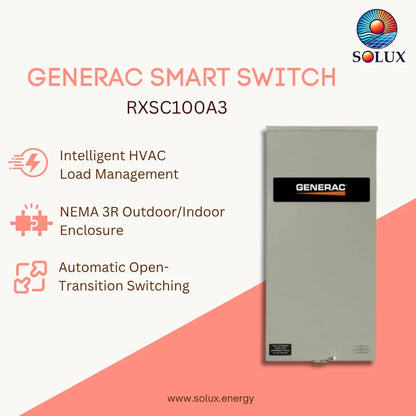

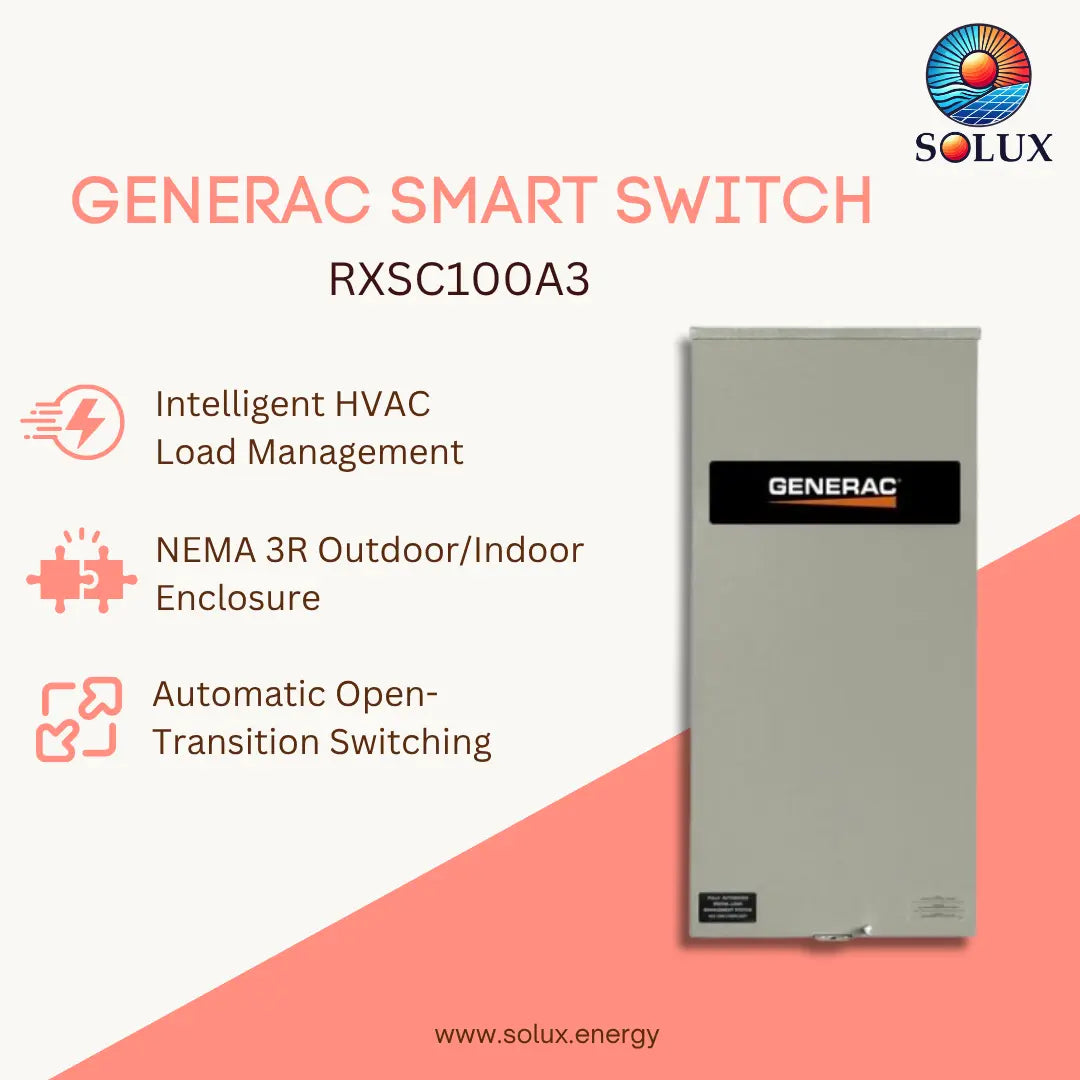

Generac RXSC100A3 100 Amp 120/240 Smart Switch (NEMA 3R CUL)

Generac 100A 120/240V 1-Phase Non-Service Entrance Smart Switch (NEMA 3R)

The Generac RXSC100A3 Smart Switch is a 100A non-service entrance automatic transfer switch engineered for single-phase standby generator systems operating at 120/240V. Housed in a weatherproof NEMA 3R steel enclosure, this switch uses a heavy-duty Generac contactor to perform smooth, automatic open-transition transfer between utility power and backup power.

Equipped with an integrated Smart A/C Module (SACM), the unit manages up to four 24 VAC HVAC loads out of the box without requiring external hardware. System managers can expand control to eight additional high-draw loads using external Smart Management Modules (SMM), enabling smaller generator sizing while maintaining full-home resilience backed by a 5-year limited warranty.

Features & Benefits:

• Intelligent Load Management - Manage up to four HVAC loads with no additonal hardware needed, providing a more efficient system, and allowing you to reduce the size of the generator needed to protect your home.
• NEMA 3R Outdoor Rated Enclosure - Designed to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch from rain, snow, ice, and debris.
• Automatic open-transition switching between utility and generator power
• NEMA/UL Type 3R enclosure suitable for indoor or outdoor applications
• Heavy-duty contactor designed for reliable long-term operation
• Integrated Smart A/C Module (SACM) manages up to 4 individual 24 VAC HVAC loads without additional hardware
• Can manage up to 8 additional loads when used with external Smart Management Modules
• Generator controller handles voltage sensing, timing, exercising, and transfer commands
• Manual transfer capability allows the switch to be operated without power applied
• 5 Year Limited Warranty
