Description

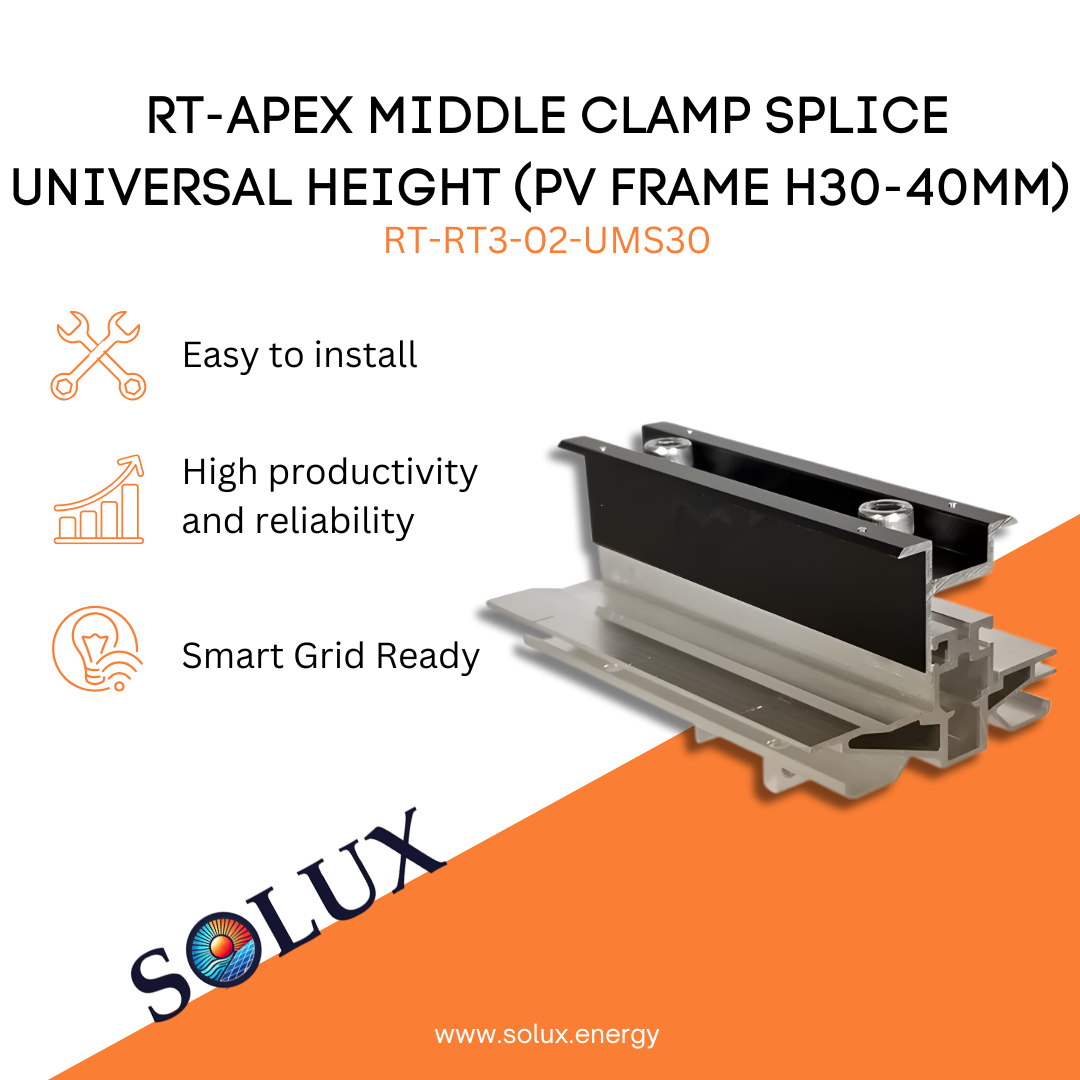

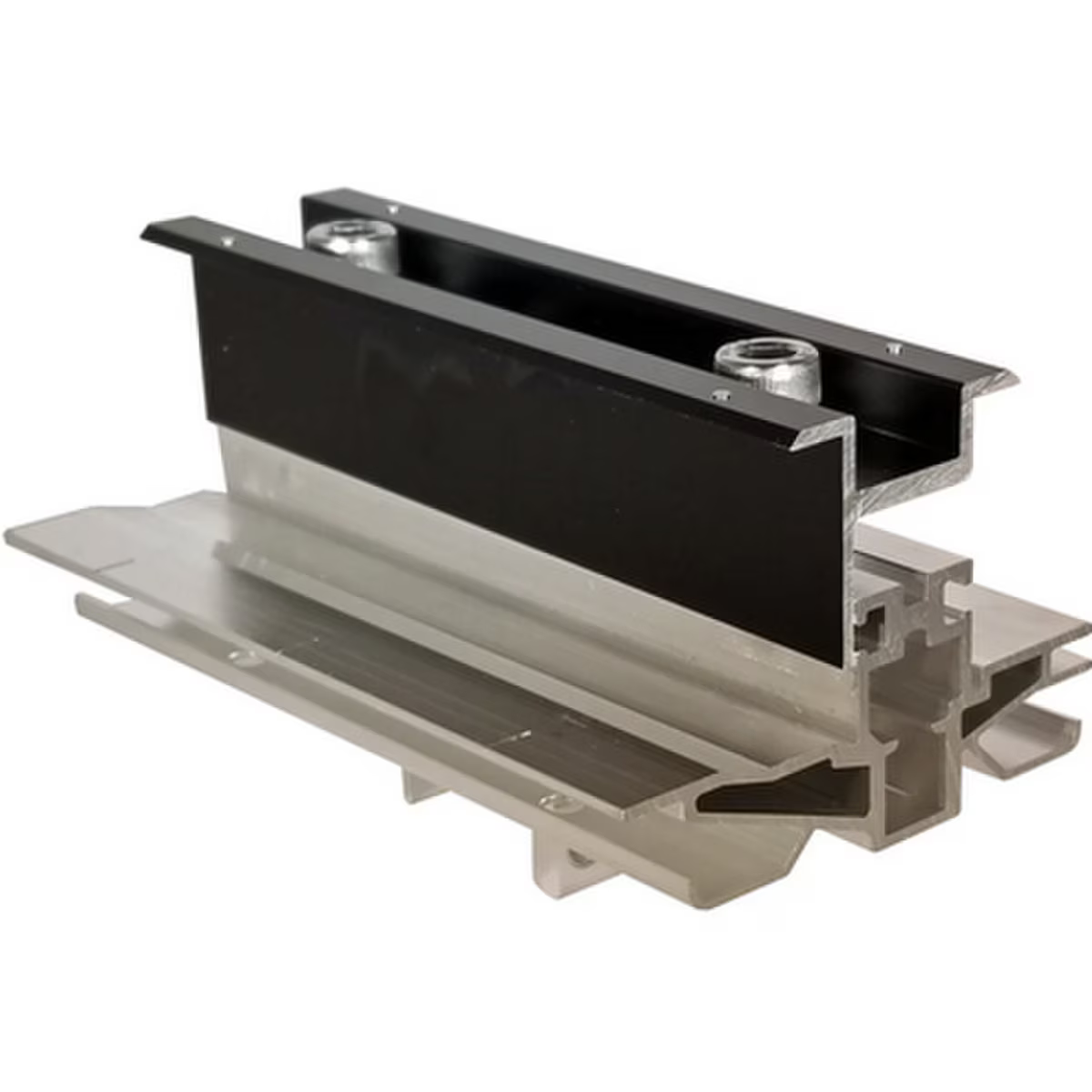

Roof Tech RT-Apex Middle Clamp Splice (RT3-02-UMS30)
Structural support and panel securing in one high-performance component. The RT-Apex Middle Clamp Splice is designed to both bridge two solar modules and securely fasten them to the RT-Apex rail-less mounting system. Featuring a universal height design, it ensures precise alignment and robust electrical bonding across the array.
Product Highlights:
- Dual Functionality: Acts as both a structural splice and a middle clamp to streamline installation.
- Universal Clamping: Accommodates PV frame heights ranging from 30mm to 40mm, (some sources says 46mm).
- One-Step Leveling: Features slide-in mounting for rapid, seamless array integration.
- Integrated Grounding: Provides automatic electrical bonding between modules upon installation.
- Certified Strength: Engineered to withstand wind speeds up to 180 mph and snow loads up to 90 PSF.
Logistics & Ordering Info:
- Manufacturer Part Number: RT3-02-UMS30
- Shipping Weight: 18 lb
- Shipping Dimensions: 5 x 10 x 10 in
- Case Qty: 12
- Pallet Qty: 56
-
Downloads

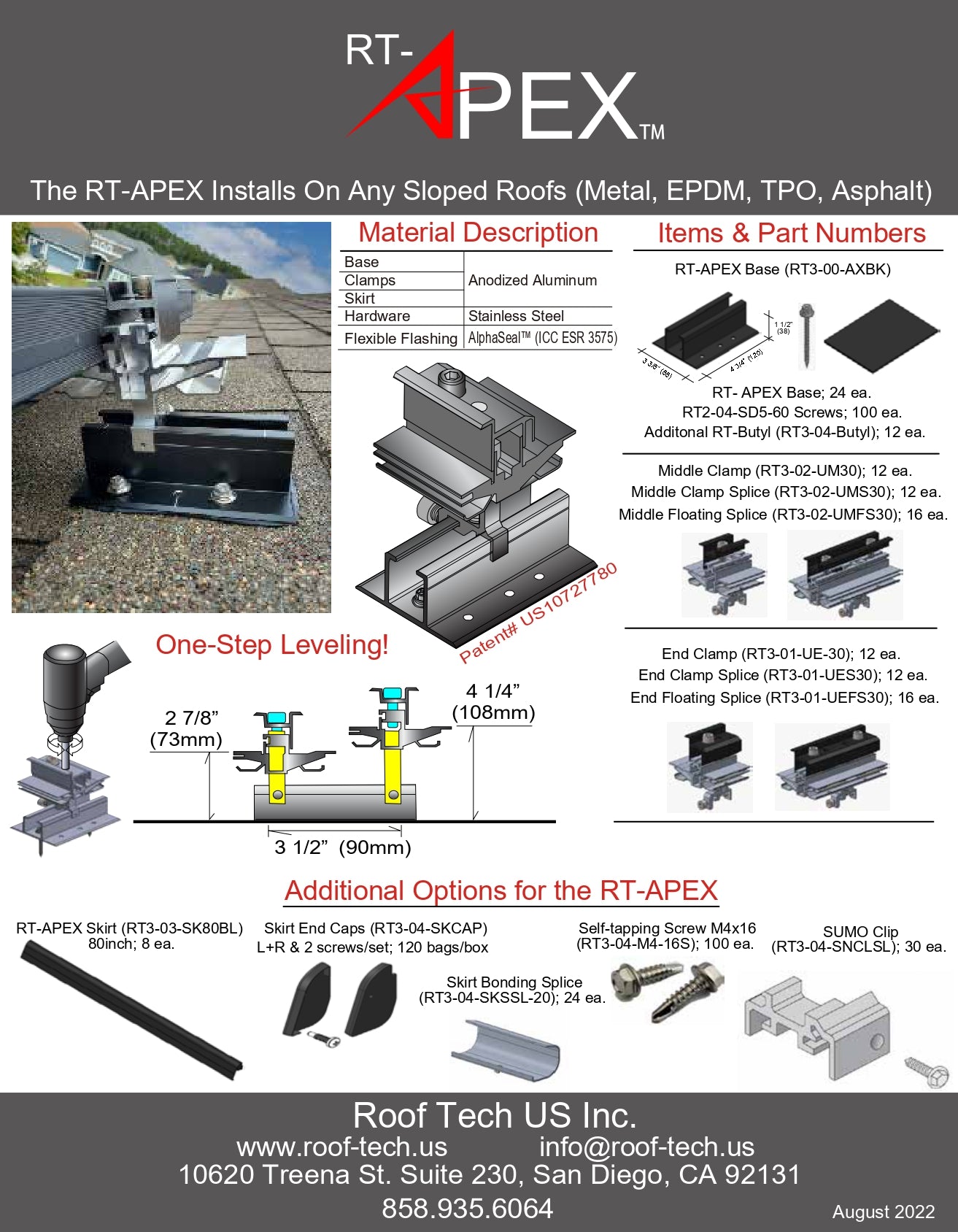

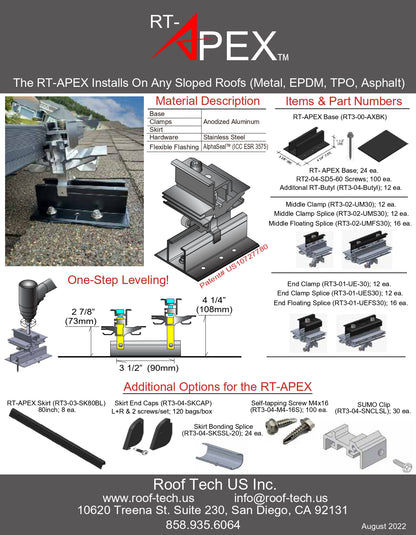

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
