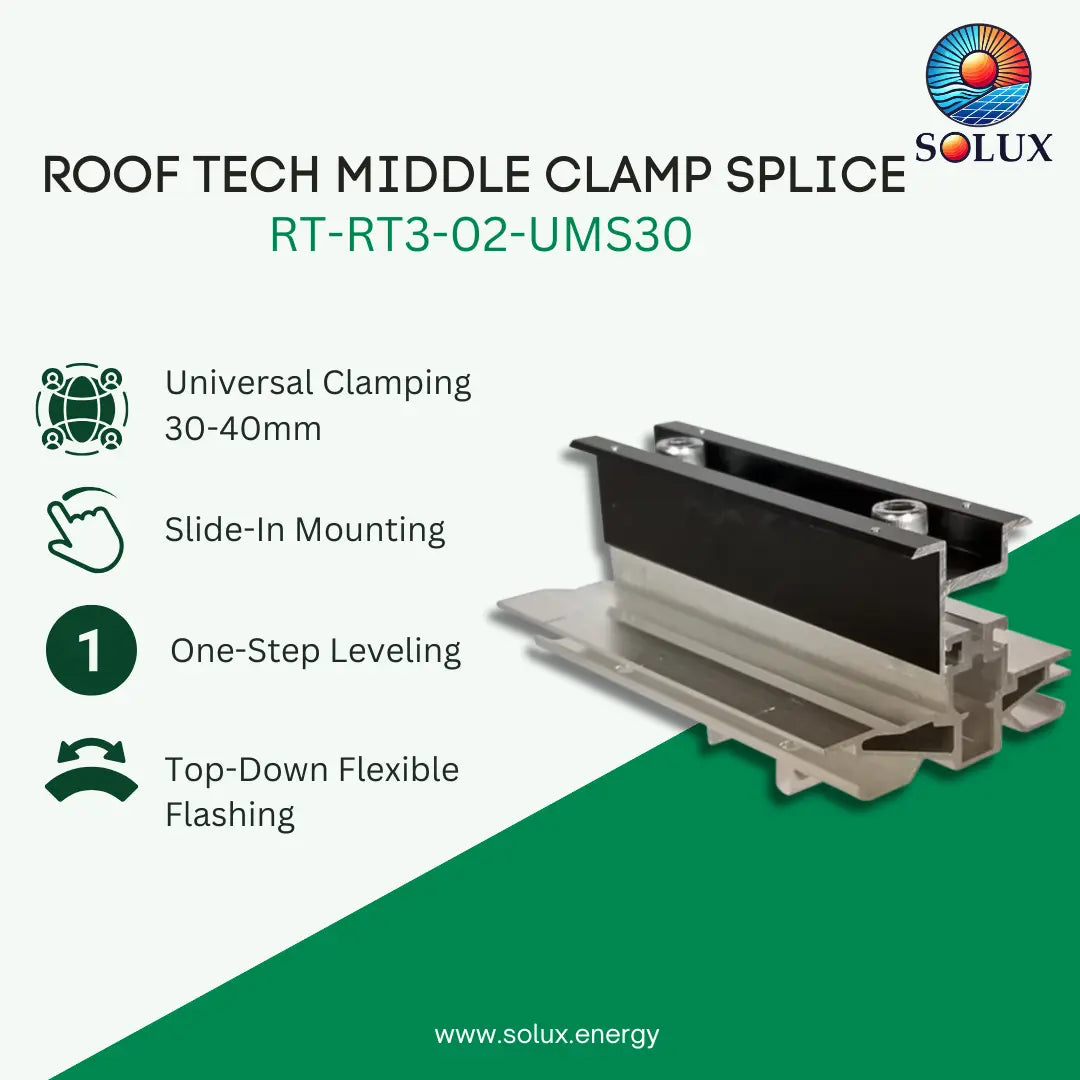

Roof Tech RT-RT3-02-UMS30 Middle Clamp Splice

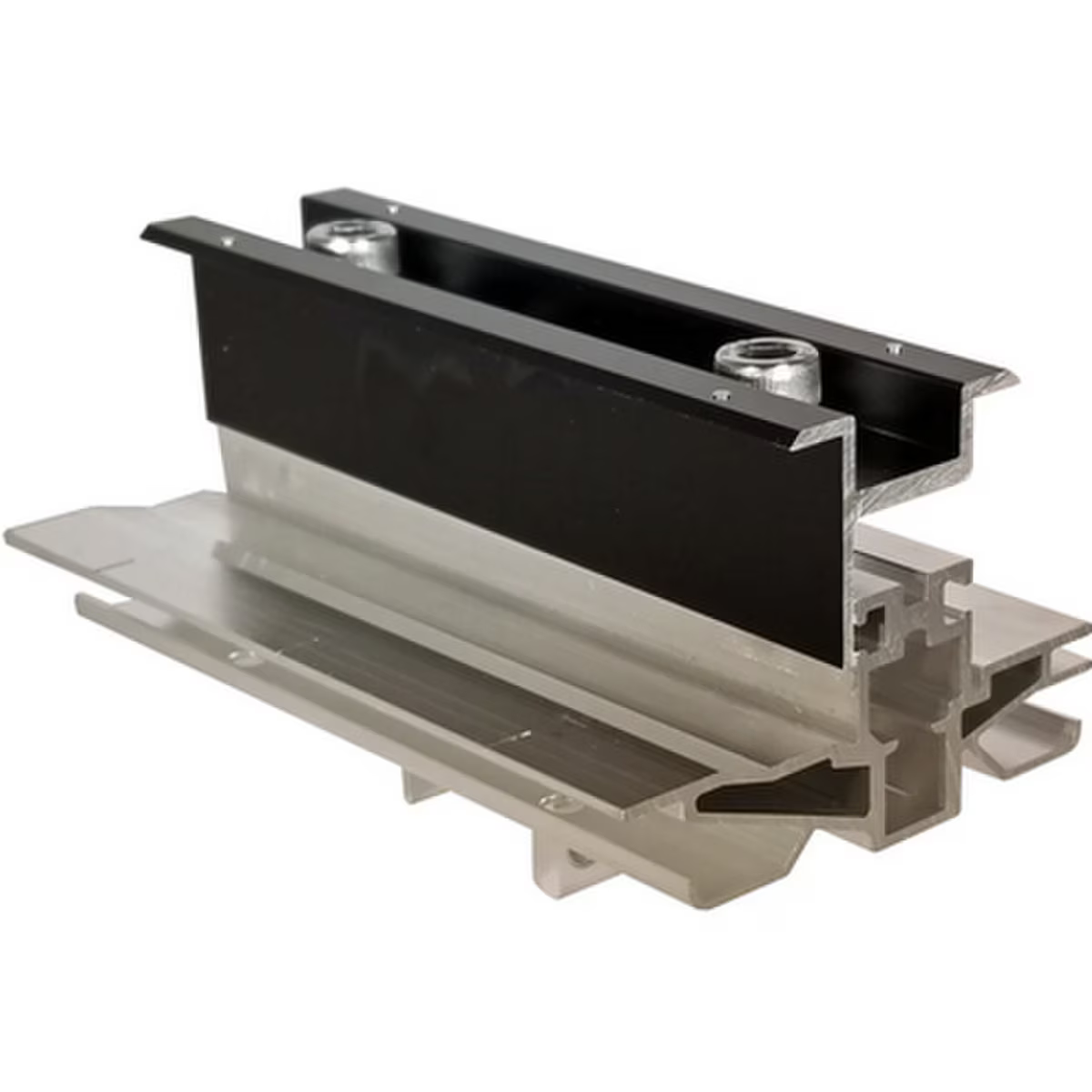

Roof Tech RT-APEX Universal Middle Clamp Splice (RT3-02-UMS30)

The Roof Tech RT-APEX Universal Middle Clamp Splice (RT3-02-UMS30) is a dual-function mounting component designed for the RT-APEX rail-less residential solar system. It acts as both a structural splice to join adjacent solar panels and a mid-clamp to lock modules securely to the roof attachment.

Engineered with a universal clamping range, this component adjusts to fit solar module frame heights between 30 mm and 40 mm (and up to 46 mm depending on array configuration). It features slide-in mounting for fast alignment and integrated grounding pins that automatically establish electrical continuity across panels upon tightening.

Product Highlights:

• Dual Functionality: Acts as both a structural splice and a middle clamp to streamline installation.
• Universal Clamping: Accommodates PV frame heights ranging from 30mm to 40mm, (some sources says 46mm).
• One-Step Leveling: Features slide-in mounting for rapid, seamless array integration.
• Integrated Grounding: Provides automatic electrical bonding between modules upon installation.
• Certified Strength: Engineered to withstand wind speeds up to 180 mph and snow loads up to 90 PSF.

Logistics & Ordering Info:

• Manufacturer Part Number: RT3-02-UMS30
• Shipping Weight: 18 lb
• Shipping Dimensions: 5 x 10 x 10 in
• Case Qty: 12
• Pallet Qty: 56
