Roof Tech : RT-RT3-02-UMFS30

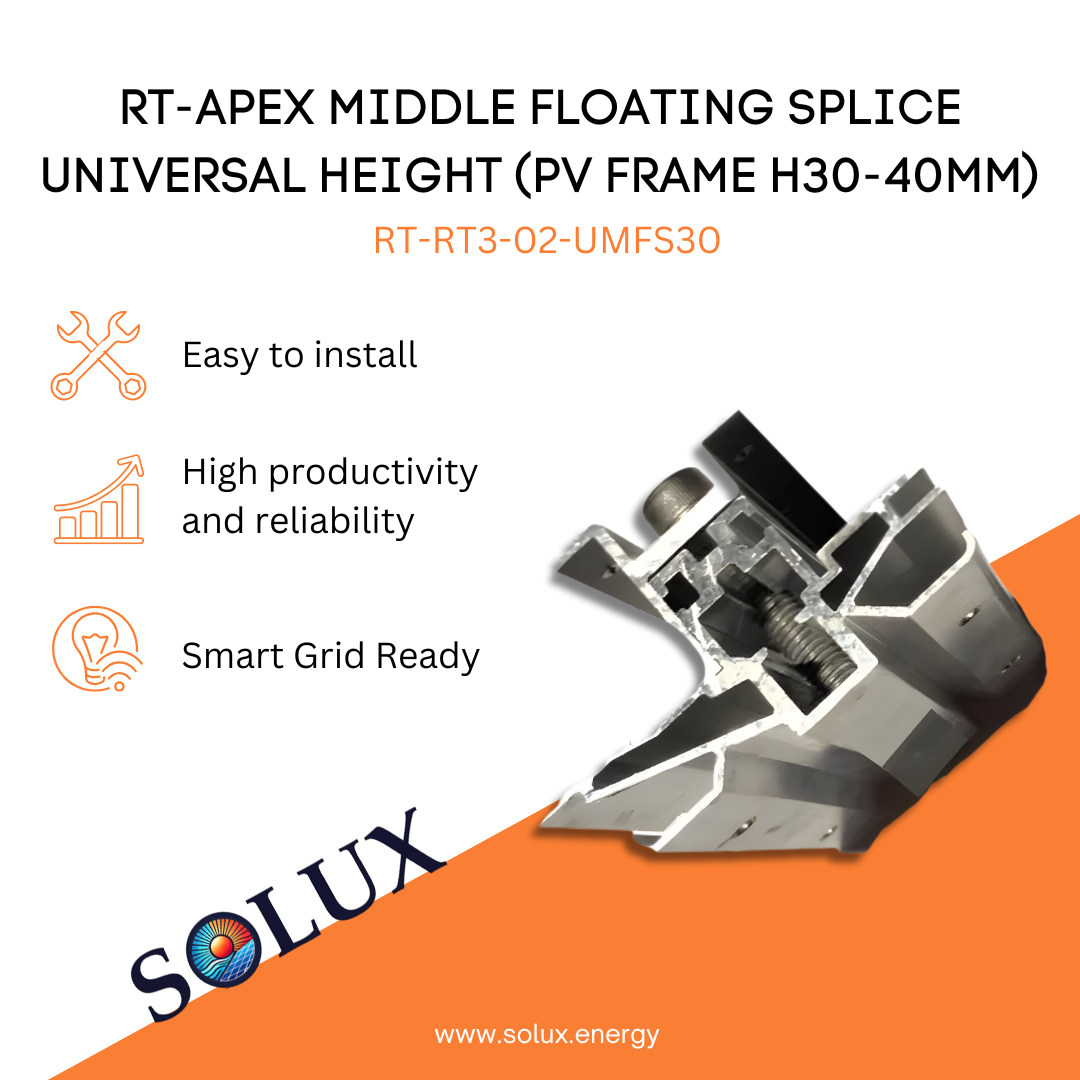

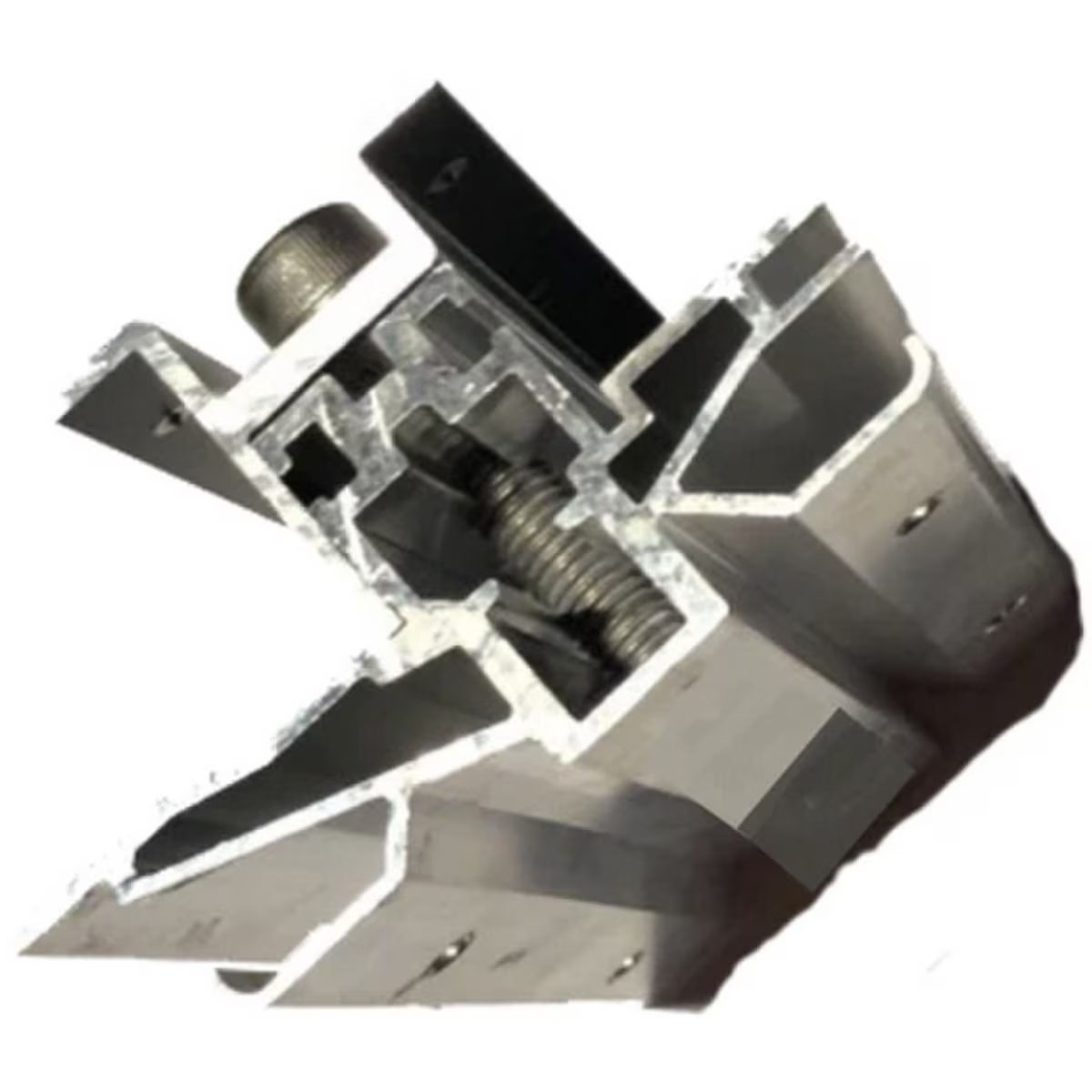

Roof Tech RT-Apex Mid Floating Splice (RT3-02-UMFS30)

Structural continuity with thermal protection for rail-less solar arrays. The Mid Floating Splice is designed to join module sections within the RT-Apex system, providing a secure structural connection while allowing for the natural thermal expansion and contraction of the array. This prevents mechanical stress on the modules and ensures long-term system integrity.

Product Highlights:

• Thermal Management: Floating design accommodates movement from temperature fluctuations without compromising the array.
• Universal Clamping: One-size-fits-all design for PV frame heights from 30mm to 46mm.
• Rapid Install: Features one-step leveling and slide-in mounting for high-efficiency installations.
• Integrated Bonding: Provides automatic electrical continuity across spliced sections.
• Engineered Strength: Certified for wind speeds up to 180 mph and snow loads up to 90 PSF.

Logistics & Ordering Info:

• Manufacturer Part Number: RT3-02-UMFS30
• Shipping Weight: 19 lb
• Shipping Dimensions: 5 x 10 x 10 in
• Case Qty: 2
• Pallet Qty: 56
