Roof Tech RT-RT3-02-UMFS30 Middle Floating Splice

Roof Tech RT-APEX Mid Floating Splice (RT3-02-UMFS30)

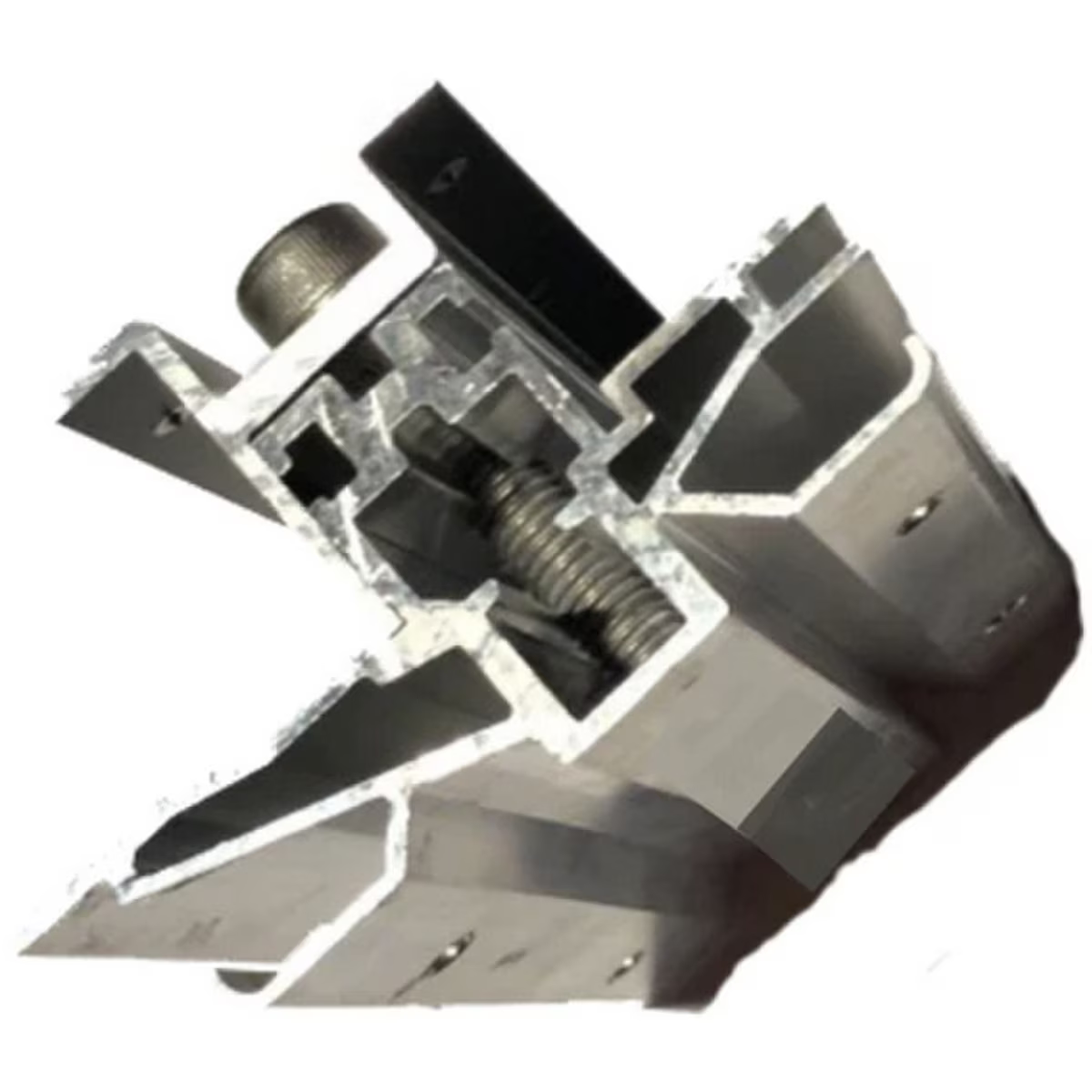

The Roof Tech RT-APEX Mid Floating Splice (RT3-02-UMFS30) is a structural joining component designed for the RT-APEX rail-less residential solar mounting system. It connects adjacent solar modules within an array while accommodating natural thermal expansion and contraction caused by temperature changes.

By allowing slight thermal movement without sacrificing structural strength, the mid floating splice prevents mechanical strain on solar panel frames and glass over time. It features a universal clamping design that fits module frame heights from 30 mm to 46 mm, along with integrated bonding pins for automatic electrical grounding across spliced sections.

Product Highlights:

• Thermal Management: Floating design accommodates movement from temperature fluctuations without compromising the array.
• Universal Clamping: One-size-fits-all design for PV frame heights from 30mm to 46mm.
• Rapid Install: Features one-step leveling and slide-in mounting for high-efficiency installations.
• Integrated Bonding: Provides automatic electrical continuity across spliced sections.
• Engineered Strength: Certified for wind speeds up to 180 mph and snow loads up to 90 PSF.

Logistics & Ordering Info:

• Manufacturer Part Number: RT3-02-UMFS30
• Shipping Weight: 19 lb
• Shipping Dimensions: 5 x 10 x 10 in
• Case Qty: 2
• Pallet Qty: 56
