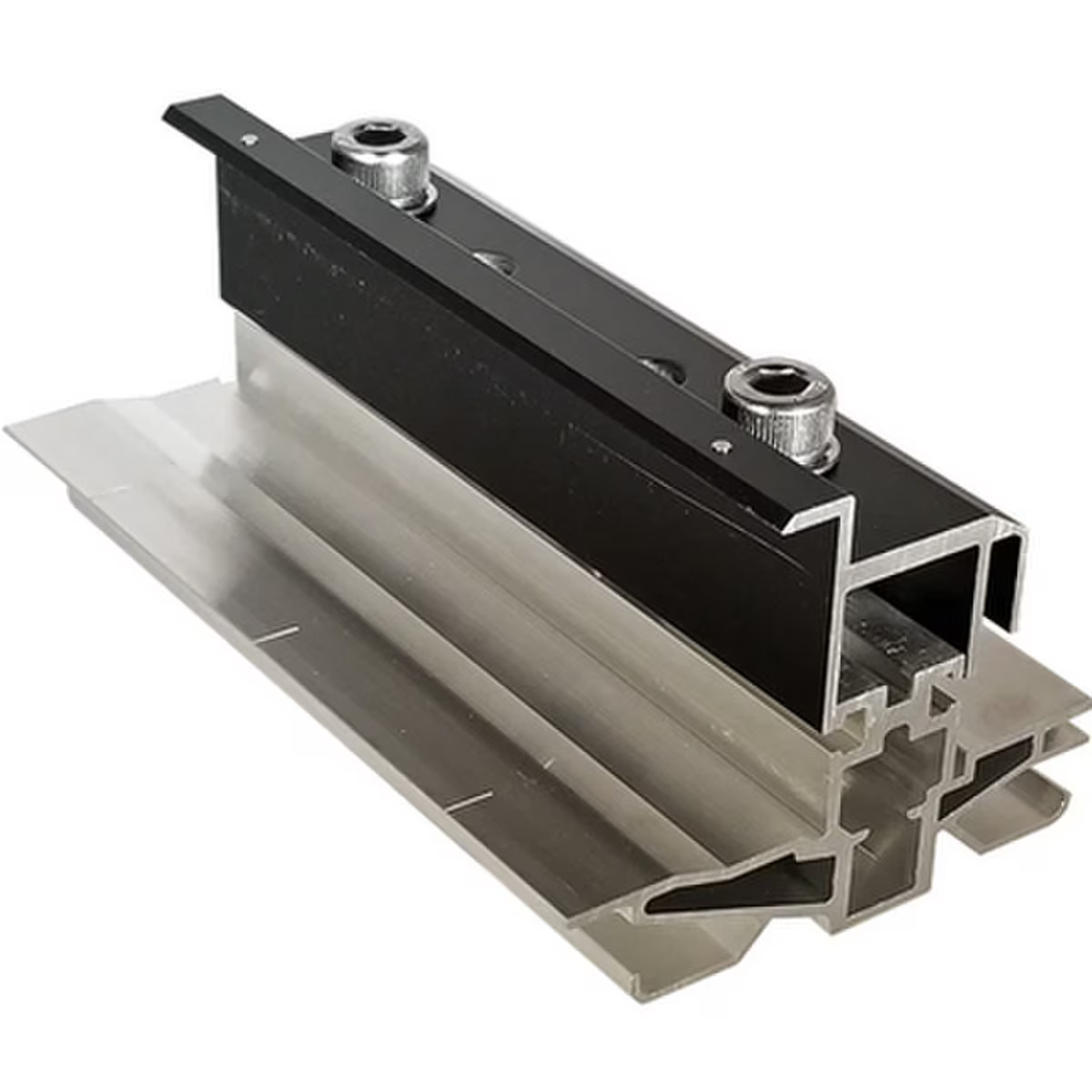

Roof Tech RT-APEX End Clamp Splice (RT3-01-UES30)
The Roof Tech RT-APEX End Clamp Splice (RT3-01-UES30) is a perimeter mounting bracket engineered for the RT-APEX rail-less residential solar system. It secures the outer edges of a solar array while serving as a structural splice to bridge adjacent solar modules.
Equipped with Roof Tech's proprietary AlphaSeal™ technology utilizing self-flashing polybutylene mastic (PBM), this component creates a permanent, watertight roof connection without requiring traditional metal flashings. Its universal clamping mechanism accommodates solar module frame heights between 30 mm and 40 mm, featuring one-step leveling and slide-in mounting for fast roof assembly.
Product Highlights:
- Dual-Purpose Design: Functions as both a secure end clamp and a structural splice for array integrity.
- Universal Clamping: Fits PV frame heights from 30mm to 40mm (compatible with most modern modules).
- AlphaSeal™ Protection: Self-flashing PBM (polybutylene mastic) creates a permanent, leak-proof seal on any sloped roof.
- Efficient Leveling: Features one-step leveling and slide-in mounting for rapid, precise installation.
- Certified Resilience: Engineered for wind speeds up to 180 mph and snow loads up to 90 PSF.
Logistics & Ordering Info:
- Manufacturer Part Number: RT3-01-UES30
- Shipping Weight: 20 lb
- Shipping Dimensions: 9.5 x 19.5 x 10.5 in
- Case Qty: 12
- Pallet Qty: 56
-
Downloads
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
