Roof Tech RT-RT3-01-UE-30 Universal End Clamp

Roof Tech RT-APEX Universal End Clamp (RT3-01-UE-30)

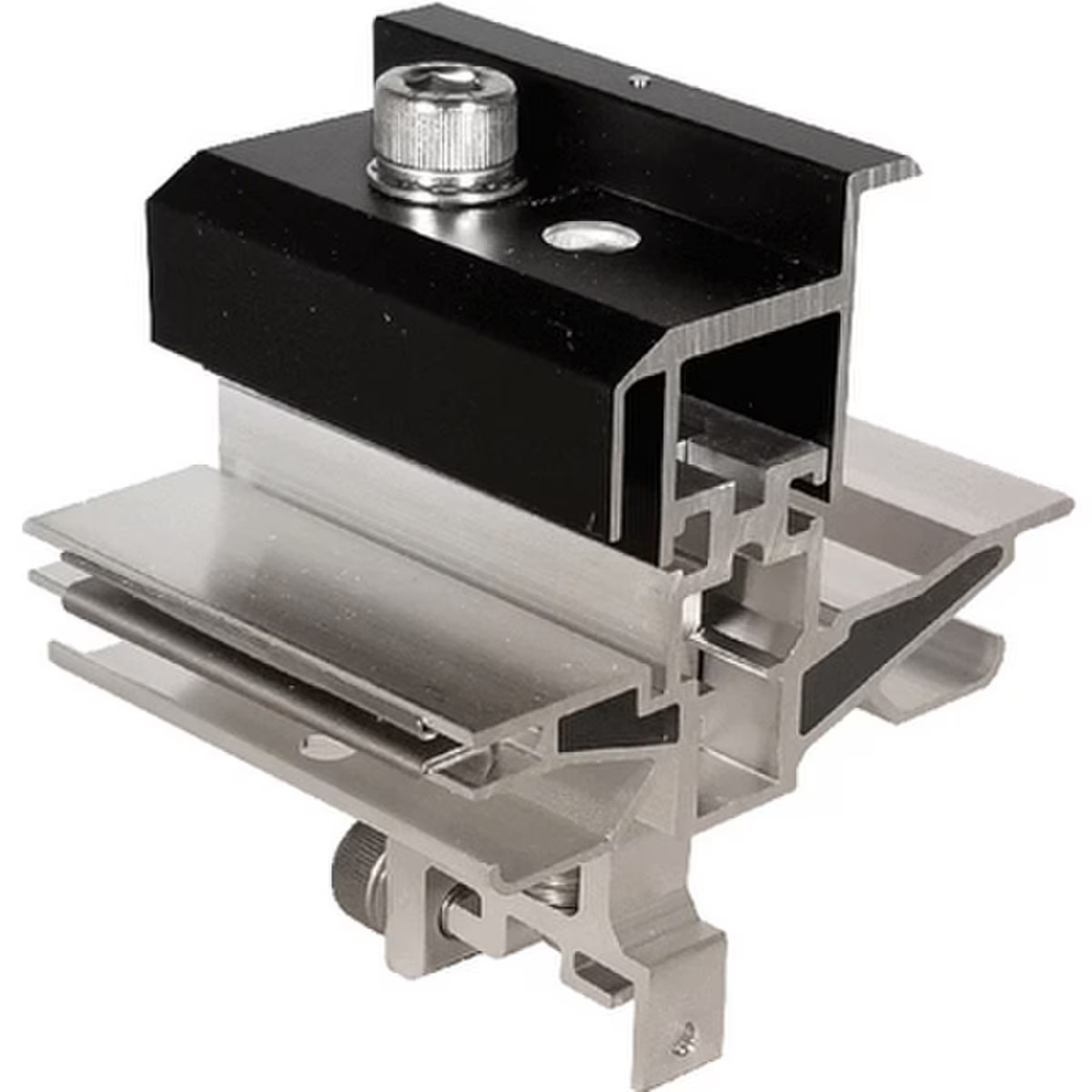

The Roof Tech RT-APEX Universal End Clamp (RT3-01-UE-30) is a perimeter fastening bracket designed specifically for the RT-APEX rail-less residential solar system. It secures the exposed outer edges of solar panels directly to the roof structure while providing long-term structural hold and weather-tight protection.

Equipped with Roof Tech's integrated AlphaSeal™ technology, this end clamp features self-flashing flexible polybutylene mastic (PBM) that creates a permanent, leak-proof seal on sloped roofs without requiring traditional metal flashings or shingle prying. Its universal height mechanism fits solar module frame thicknesses between 30 mm and 46 mm, featuring one-step leveling and slide-in mounting for rapid roof installation.

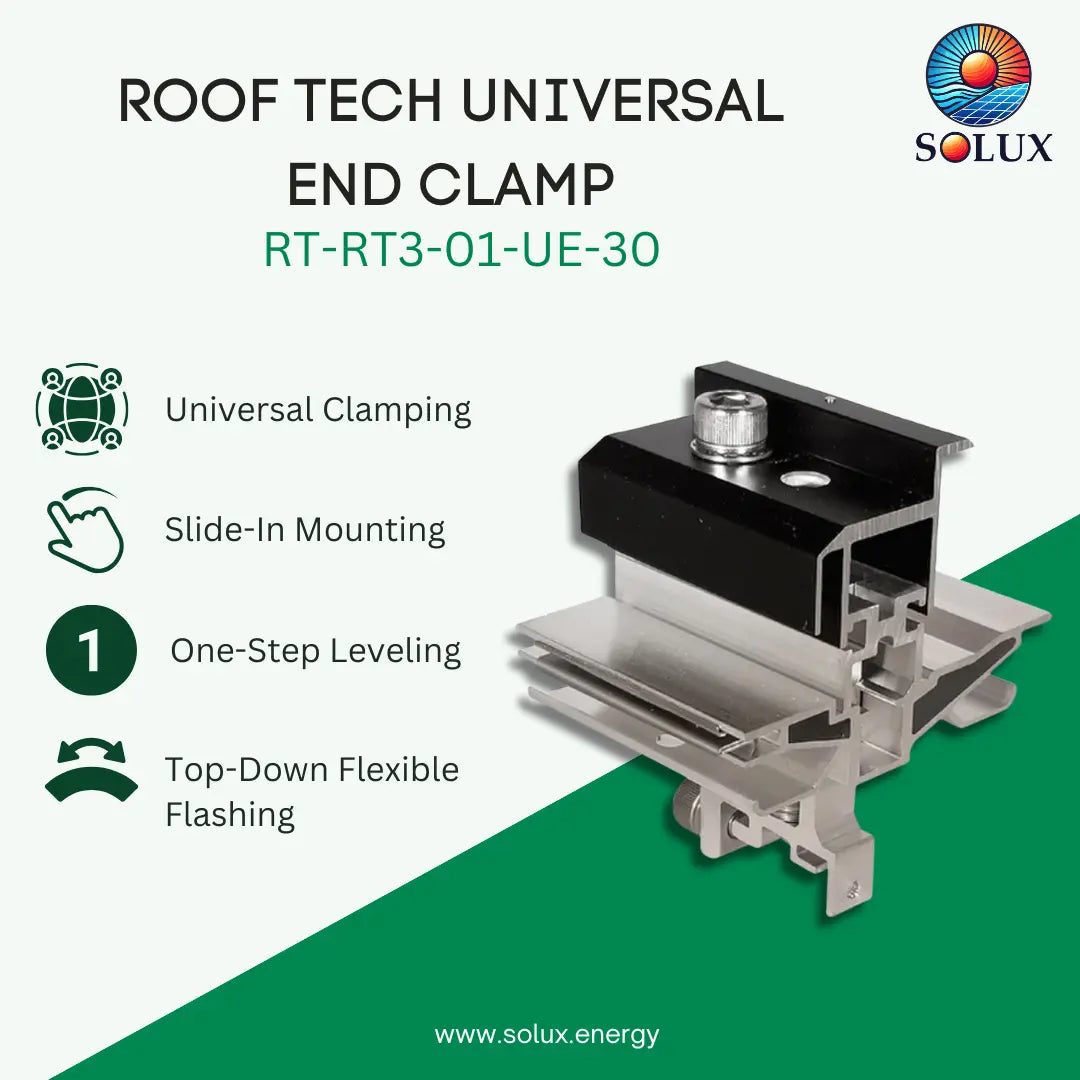

Product Highlights:

• Universal Clamping: One-size-fits-all design accommodates PV frame heights from 30mm to 46mm.
• AlphaSeal™ Technology: Integrated self-flashing PBM mastic eliminates the need for prying shingles or additional sealants.
• Rapid Install: Features one-step leveling and a slide-in mechanism for fast, precise array alignment.
• Compact & Durable: High-grade black anodized aluminum construction provides superior corrosion resistance.
• Certified Strength: Engineered for extreme conditions, supporting wind speeds up to 180 mph and snow loads up to 90 PSF.

Logistics & Ordering Info:

• Manufacturer Part Number: RT3-01-UE-30
• Shipping Weight: 11 lb
• Shipping Dimensions: 8.5 x 19.5 x 8 in
• Case Qty: 3
• Pallet Qty: 96
