RSS Transmitter

RSS Transmitter

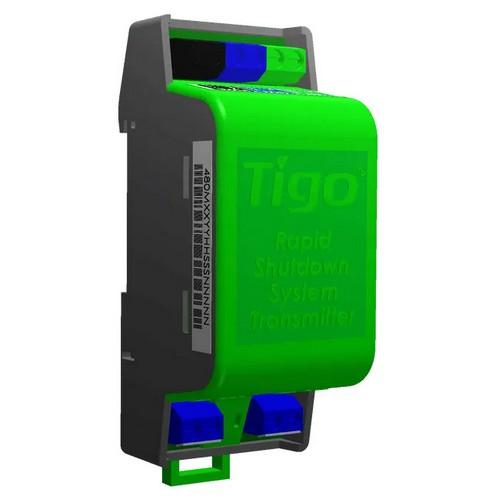

The Tigo Energy 490-00000-51 is a single-core Rapid Shutdown System (RSS) transmitter with Pure Signal technology. It sends a continuous power-line communication (PLC) signal to compatible Tigo rapid-shutdown devices, allowing solar panels to operate normally while the signal is present and initiating module-level rapid shutdown when the signal is lost.

Technical Specifications:Model: 490-00000-52

• Model: 490-00000-51
• Product Type: Single-Core Rapid Shutdown System (RSS) Transmitter
• Input Voltage: 12 V DC ±2%
•  Input Current: 1 A
• Maximum Power Consumption: 5.5 W
•  Average Power Consumption: 0.85 W
• Standby Power: 0.06 W
• Maximum String Voltage: 1500 V DC
• Maximum Sync Cable Length: 30 m (100 ft)
• Power consumption: 5.5 W maximum / 0.85 W average
• Standby power: 0.06 W
• Dimensions: 3.58 × 1.50 × 1.63 inches
• Transmitter Dimensions: 3.58 × 1.50 × 1.63 inches (H × W × D)
