Description
APsmart Dual Core Transmitter PLC Outdoor Kit
The APsmart Rapid Shutdown System Transmitter-PLC is part of a rapid shutdown solution whenpairedwithAPsmart RSD-S-PLC, a PV module rapid shutdown unit. While powered on, the Transmitter-PLCsends asignal tothe RSD-S-PLC units to keep their PV modules connected and supplying energy.
RSD-S-PLC units automatically enter rapid shutdown mode when the Transmitter-PLC is switchedoff andresumeenergy production when power is restored to the Transmitter-PLC. This solution complies withNEC690.12specifications for 2017&2020 and supports the SunSpec signaling for rapid shutdown.

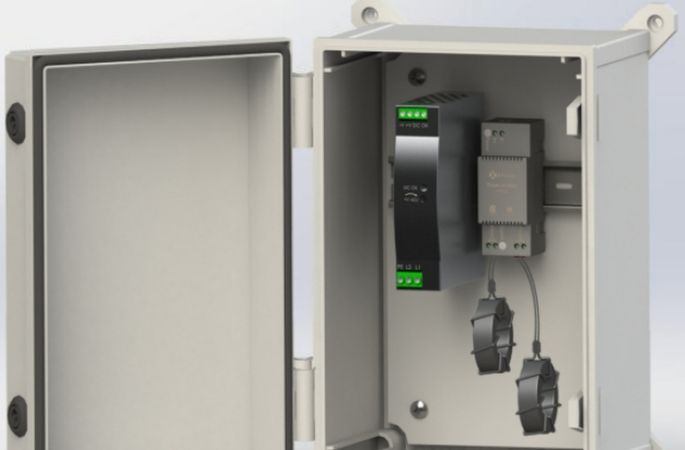

Transmitter-PLC Outdoor Kit includes a Transmitter-PLC with one or two cores, outdoor enclosure, 85-264VACor180-550VAC power supply. It could be used in residential or commercial project.Technical Specifications:
- Manufacturer Part Number: 408005
- Shipping Weight: 6.39 lb
- Shipping Dimensions: 12.09 x 8.94 x 7.83 in
- Case Qty: 10 Pcs
- Input Voltage: 12 VDC
- Input Current: 0.8A
- Communication: PLC
- Residential: (optional） 85-264VAC Input, 12VDC Output, 90 mmx 17.5 mmx58.4mm
- Commercial: (optional） 180-550VAC Input, 12VDC Output, 125.2 mmx 32 mmx102mm
- Max. Current: 150A Per core
- Max. System Voltage: 1500VDC
- Internal Opening for Wires/Outside Dimensions: ~29mm/65mm
- Max. Supported PV Modules per String: 30 modules
- Enclosure Environmental Rating: IP65
-
Downloads
Download Spec Sheet
