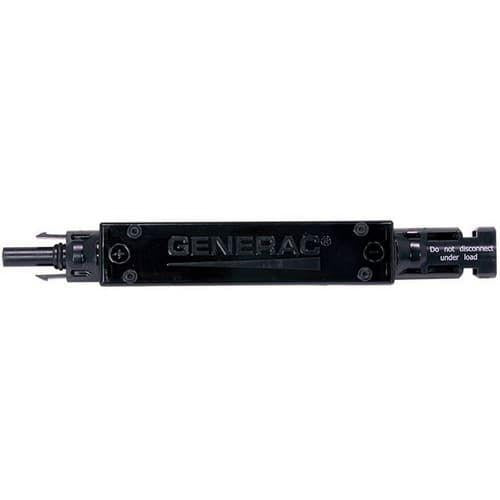

Generac RS802 SnapRS Gen2 RS802 Inline PV Disconnect for NEC 2017

Generac RS802 SnapRS Gen2 RS802 Inline PV Disconnect for NEC 2017

Generac SnapRS are a simple way to satisfy rapid shutdown compliance for solar + storage systems. Generac SnapRS are2017/2020 NEC 690.12 compliant, don't require any extra hardware to mount, and need no pairing or fussy digital communications.

Technical Specifications:

• PV MODULE MAX VOC: 75 V
• EFFICIENCY: 99.8%*
• MAX INPUT CURRENT: 15 A
• MAX TOTAL QTY IN SUBSTRING: 10
• SHUTDOWN TIME: < 10 Seconds
• ENCLOSURE RATING: NEMA 6P
• OPERATING TEMPERATURE - FAHRENHEIT (CELSIUS: -40 to 158 °F (-40 to 70 ºC)
• CERTIFICATIONS: UL1741
• PROTECTIONS: PVRSE
• WEIGHT - LB (KG): 0.17 (0.08)
• DIMENSIONS, L x W x H - IN (MM): 7" x 1" x 1" / (177.8 x 25.4 x 25.4)
• WARRANTY: 25 Years
