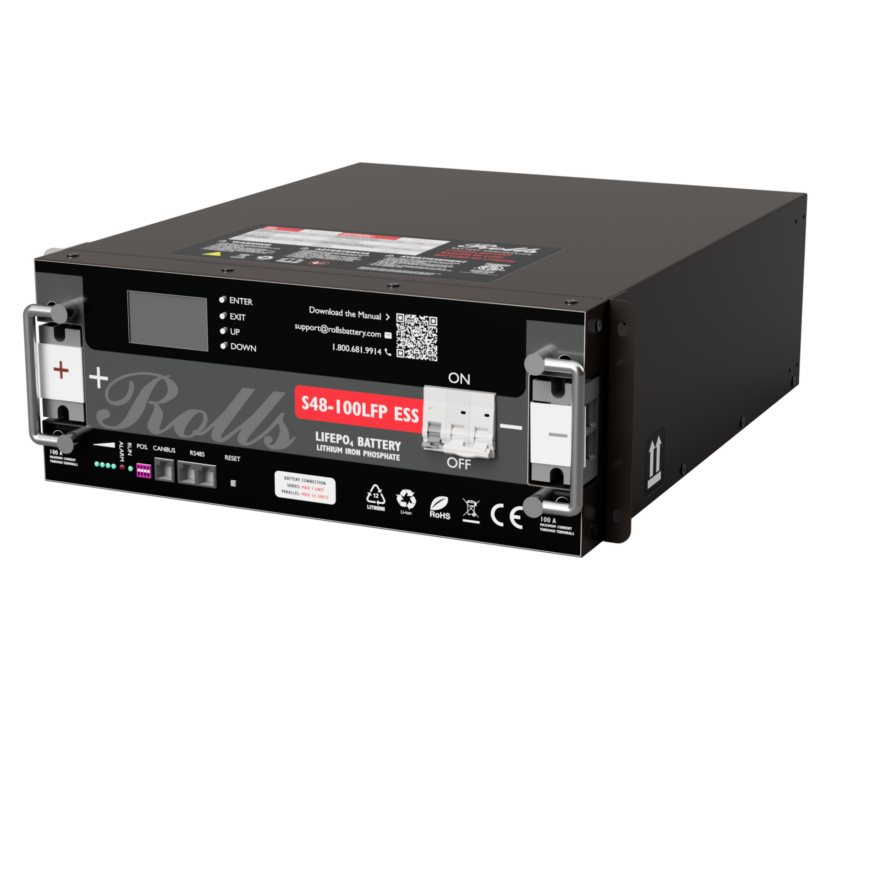

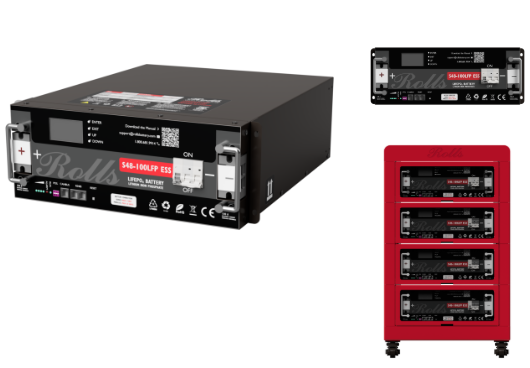

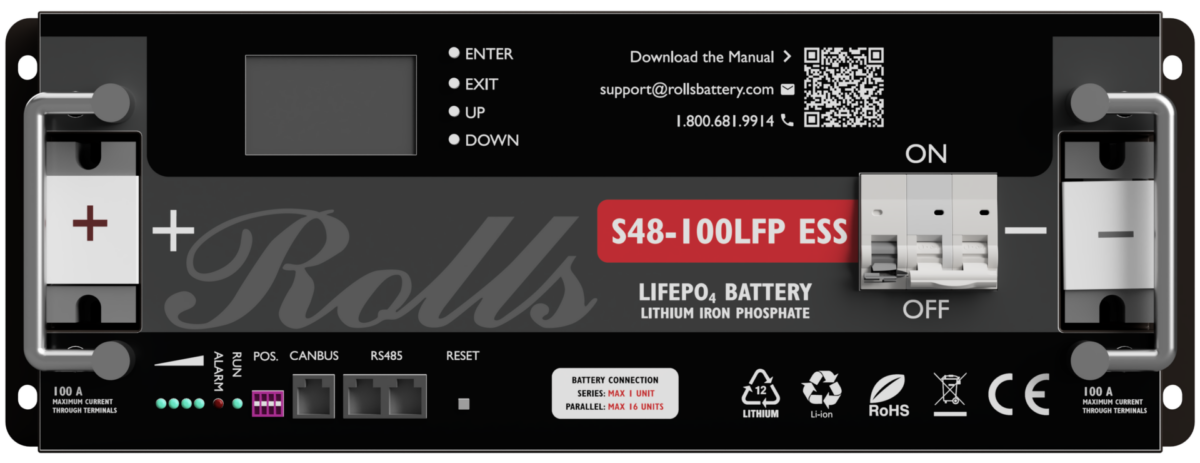

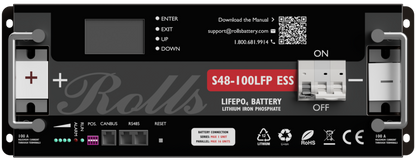

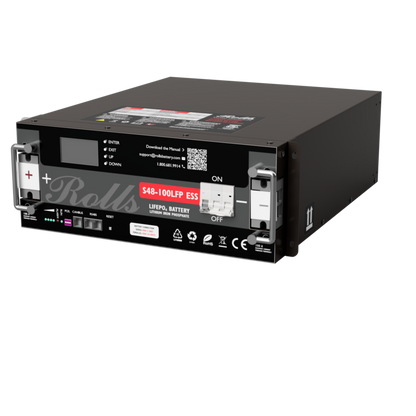

Rolls Surrette S48-100LFP ESS 48VDC 100Ah Lithium Battery

Rolls Surrette Battery S48-100LFP ESS

Safety

• Cylindrical LiFePO4 cells [4Ah, 26700] (UL 1642)(UL 1973*)
• IEC62133 (cell), IEC62619(cell), UN38.3 (cell/pack)
• ROHS (cell), CE system certification, IP54 Rating

Battery Management System (BMS)

• Integrated hardware BMS inside
• Independent charge & discharge protection, secondary protection
• Short-Circuit Protection, Over-Voltage Protection, Low-Voltage Protection, Over-Current Protection, Low-Temperature Protection, Over-Temperature Protection

Technical Specifications:

• Weight: 50.5 kg (111.30 lbs)
• Length: 555 mm (21.8")
• Width: 442 mm (17.4")
• Height Including Terminals: 173 mm (6.8")
• Handles: Built-in
• Internal BMS Model: 16S75A
• Expected Cycle Life: >6000 @ 80% DOD, >3000 @ 100% DOD
• Series Connection: 1
• Parallel Connection: 16
• Connectivity: 2x RS-485, 1 x CAN bus
• Compatible Inverters, Communication Types and Protocols: See Operating Manual
