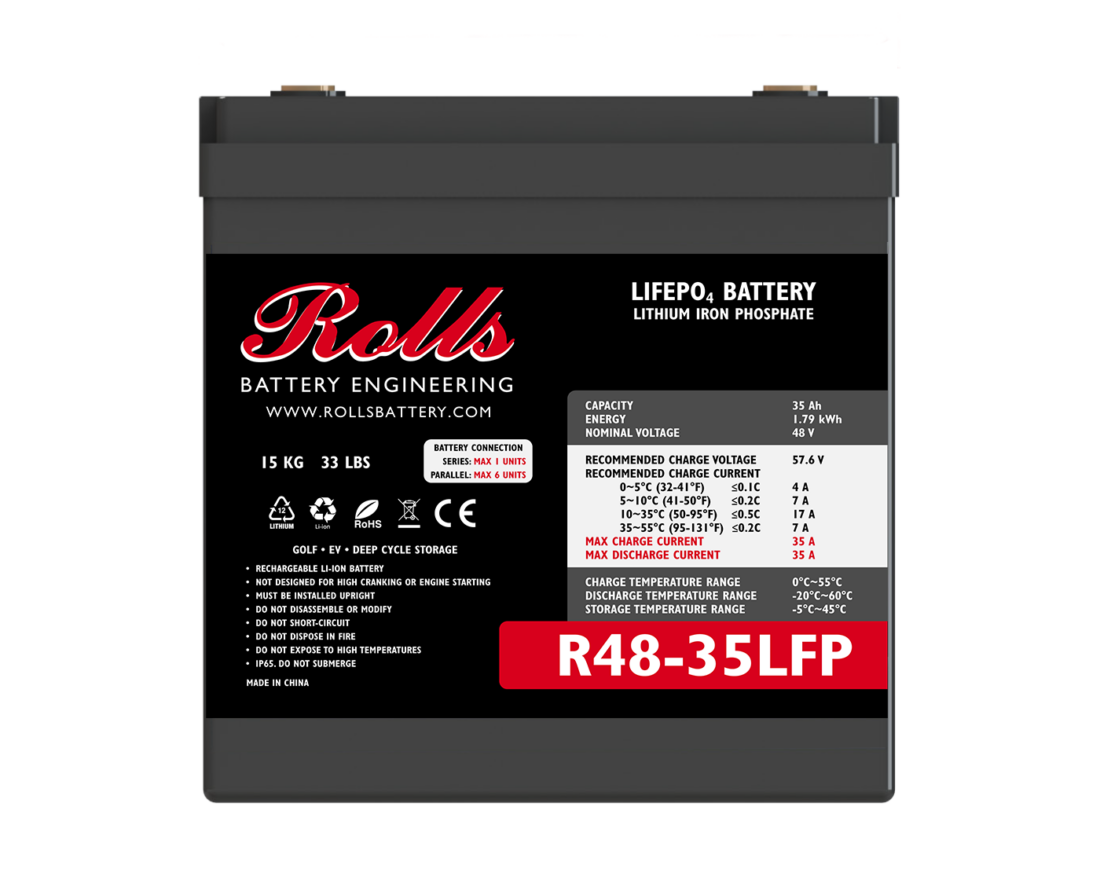

Rolls Surrette R48-35LFP 35Ah Lithium Battery

Rolls Surrette R48-35LFP 35Ah Lithium Battery

Safety

• Certificate / Compliance: Cylindrical LiFePO4 cells (UL1642)
• Safety Standard: IEC62133 (cell), IEC62619(cell), UN38.3 (cell/pack)
• Transportation: UN 38.3 – Batteries, wet, non-spillable
• Battery Standard: ISO 9001 - Quality management
• ROHS (cell), CE system certification, IP65 Rating

Design

• Standard-size (BCI) ABS container for easy VRLA replacement
• Fast charge/discharge performance
• Maintenance-free operation
• Bluetooth Connectivity & dedicated IOS & Android App

Battery Management System (BMS)

• Integrated hardware BMS inside
• Independent charge & discharge protection
• Short-Circuit Protection, Over-Voltage Protection, Low-Voltage Protection, Over-Current Protection, Low-Temperature Protection, Over-Temperature Protection

Technical Specifications:

• Series : R-SERIES LFP
• Length: 521 mm / 20.5"
• Volts: 48VDC
• BCI Group: GC2
• Terminal Type: M8
• Nominal Capacity: 35 AH
• Total Energy: 1.79 kWh

• Weight: 15 kg / 33 lbs
• Length: 260 mm / 10.24"
• Width: 180 mm / 7.09"
• Height: 265 mm / 10.43"
• Height Incl. Term.: 270 mm / 10.63"
• Container: ABS
• Cover: ABS
• Handles: Nylon Strap
• Internal BMS Model: 16S60A
• Expected Cycle Life:>6000 @ 80% DOD, >3000 @ 100% DOD
• Series Connection: 1 UNITS MAX
• Parallel Connection: 6 UNITS MAX
• Included Hardware: M8 stainless bolts & washers
• Charge Voltage Range: 56.0 - 58.4V
• Recommended End of Discharge Voltage: 48.0 VV
• End of Discharge Protection Voltage: 40.0 V
• Recommended Charge Voltage: 57.6 V
• Max Continuous Charge Current: 17 A
• Max Continuous Discharge Current: 35 A
• Surge Current Limit: 200 A (300ms)
• Charge Temperature Range: 0°C~55°C (32~131°F)
• Discharge Temperature Range: -20°~60°C (-4~140°F)
• Storage Temperature Range: -5°~45°C (23~113°F)
