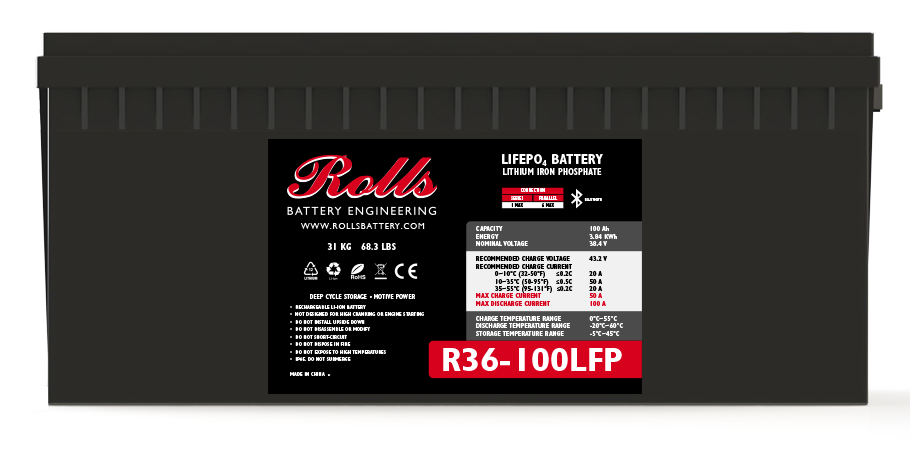

Rolls Surrette R36-100LFP 100 Ah Lithium Battery

Rolls Surrette R36-100LFP 100 Ah Lithium Battery

Safety

• Certificate / Compliance: Cylindrical LiFePO4 cells (UL1642)
• Safety Standard: IEC62133 (cell), IEC62619(cell), UN38.3 (cell/pack)
• Transportation: UN 38.3 – Batteries, wet, non-spillable
• Battery Standard: ISO 9001 - Quality management
• ROHS (cell), CE system certification, IP65 Rating

Battery Management System (BMS)

• Integrated hardware BMS inside
• Independent charge & discharge protection
• Short-Circuit Protection, Over-Voltage Protection, Low-Voltage Protection, Over-Current Protection, Low-Temperature Protection, Over-Temperature Protection

Technical Specifications:

• Series : R-SERIES LFP
• Length: 521 mm / 20.5"
• Volts: 36
• BCI Group: 4D
• Terminal Type: M8
• Nominal Capacity: 100 AH
• Total Energy: 3.84 kWh
• Nominal Voltage: 38.4 V
• Weight: 31 kg / 68.3 lbs
• Length: 521 mm / 20.5"
• Width: 238 mm / 9.37"
• Height: 218 mm / 8.58"
• Height Incl. Term.: 221 mm / 8.7"
• Container: ABS
• Cover: ABS
• Handles: Rope / Plastic Handle
• Internal BMS Model: 12S100A
• Expected Cycle Life: >6000 @ 80% DOD, >3000 @ 100% DOD
• Series Connection: 1 UNITS MAX
• Parallel Connection: 6 UNITS MAX
• Included Hardware: M8 stainless bolts & washers
• Charge Voltage Range: 42.0 - 43.8V
• Recommended End of Discharge Voltage: 36.0 V
• End of Discharge Protection Voltage: 30.0 V
• Recommended Charge Voltage: 43.2 V
• Max Continuous Charge Current: 50 A
• Max Continuous Discharge Current: 100 A
• Surge Current Limit: 700 A (300ms)
• Charge Temperature Range: 0°C~55°C (32~131°F)
• Discharge Temperature Range: -20°~60°C (-4~140°F)
• Storage Temperature Range: -5°~45°C (23~113°F)
