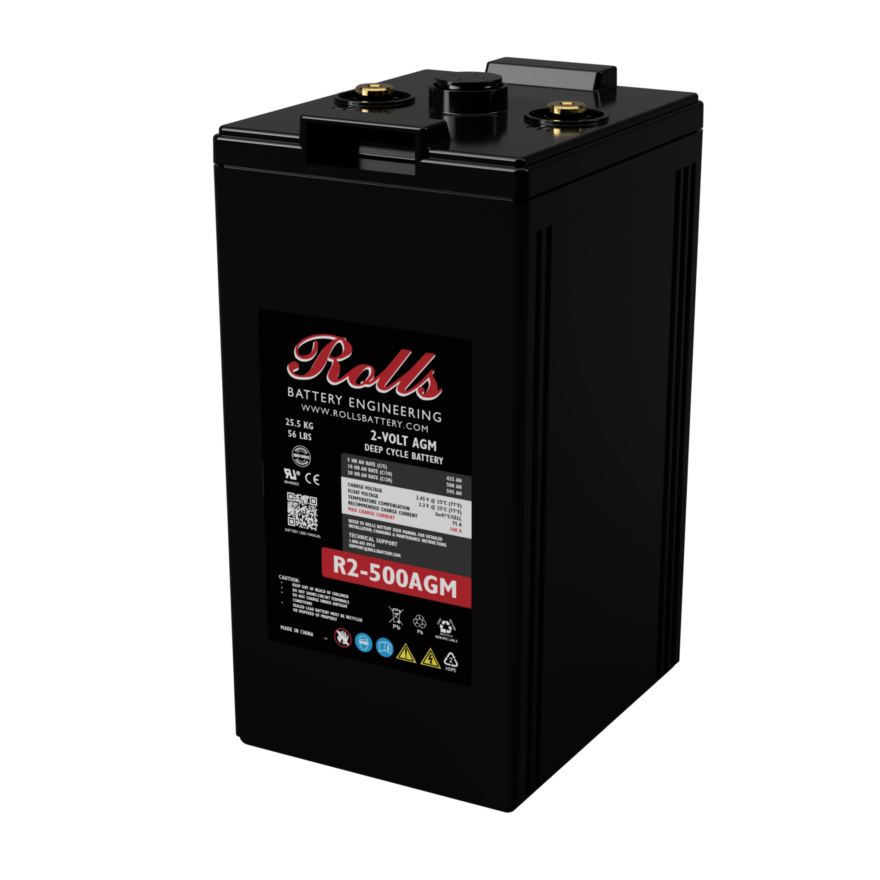

Rolls Surrette R2-500AGM 2VDC 530 Ah AGM Battery

Rolls Surrette R2-500AGM 2VDC 530 Ah  AGM Battery

Safety

• Certificate / Compliance: UL Recognized (USA), MH48952, to UL 1989
• Safety Standard: UL 1989 – Standby Batteries
• Transportation: UN2800 – Batteries, wet, non-spillable
• Battery Standard: IEC 60896-21 / IEC 60896-22 (VRLA battery standards)

Battery Management System (BMS)

• BMS: External/System-Level
• Battery voltage
• Charge/discharge current
• Battery temperature
• State of charge (SOC)
• High/low-voltage alarms
• Overcharge and over-discharge protection
• Battery-bank status and alarms

Technical Specifications:

• Weight: 25.5 kg / 56 lbs
• Length: 211 mm /8.31"
• Width: 171 mm / 6.73"
• Height Incl. Term: 342 mm / 13.5"
• Container: ABS
• Cover: ABS
• Handles: Integrated Top Mount
• Battery Type: AGM VRLA
• Series: VRLA AGM-R
• Volts:  2
• Cells: 1
• Terminal Type: F10(M8)
• Included Hardware: M8 stainless bolts & washers
• Size & Threa: M8
• Charge Voltage Range: 2.45 V/cell @ 25°C (77°F)
• Float Voltage Range: 2.3 V/cell @ 25°C (77°F)
• Recommended Charge Current: 75 A
• Maximum Charge Current: 100 A
• Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
• Internal Resistance: .60 mΩ
