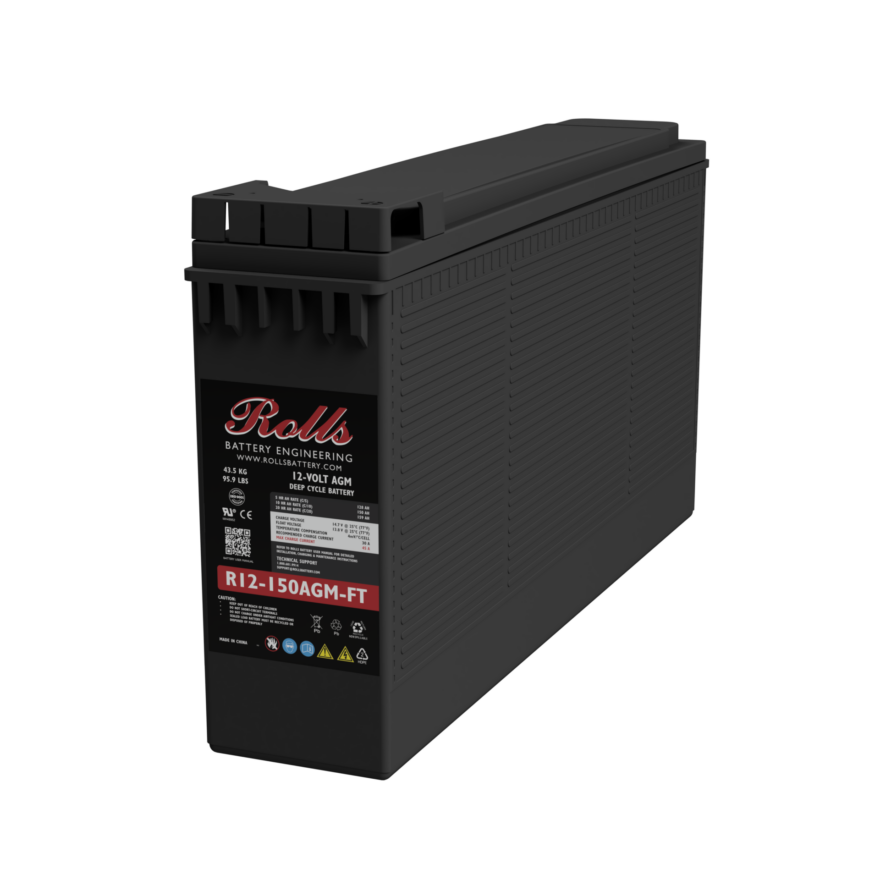

Rolls Surrette R12-150AGM-FT 12VDC 159 Ah AGM Battery

Rolls Surrette R12-150AGM-FT 12VDC 159 Ah  AGM Battery

Safety

• Certificate / Compliance: UL Recognized (USA), UL94 HB
• Safety Standard: UL94 HB – Standby Batteries
• Transportation: UN2800 – Batteries, wet, non-spillable
• Battery Standard: IEC 60896-21 / IEC 60896-22 (VRLA battery standards)

Battery Management System (BMS)

• Plastics are UL94 HB (UL94 V0 available)
• Valve regulated design with integral flame arrestor
• Non-hazardous, Non-spillable

Technical Specifications:

• Weight: 43.5 kg / 96 lbs
• Length: 565 mm / 22.2"
• Width: 110 mm / 4.33"
• Height Incl. Term: 288 mm / 11.3"
• Container: ABS
• Cover: ABS
• Handles: Rope / Plastic Handle
• Battery Type: AGM VRLA
• Series: VRLA AGM-R
• Volts: 12
• Terminal Type: F9(M8)
• Size & Thread: M8
• Included Hardware: M8 stainless bolts & washers
• Charge Voltage Range: 14.7V @ 25°C (77°F)
• Float Voltage Range: 13.8V @ 25°C (77°F)
• Recommended Charge Current: 30 A
• Maximum Charge Current: 45 A
• Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
• Internal Resistance: 5 mΩ
