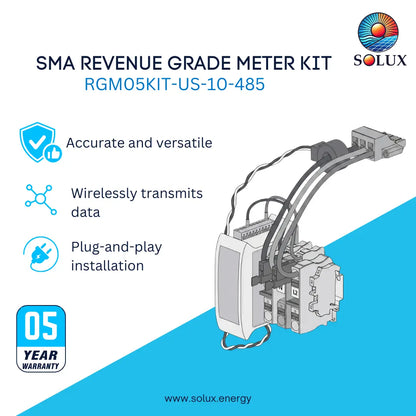

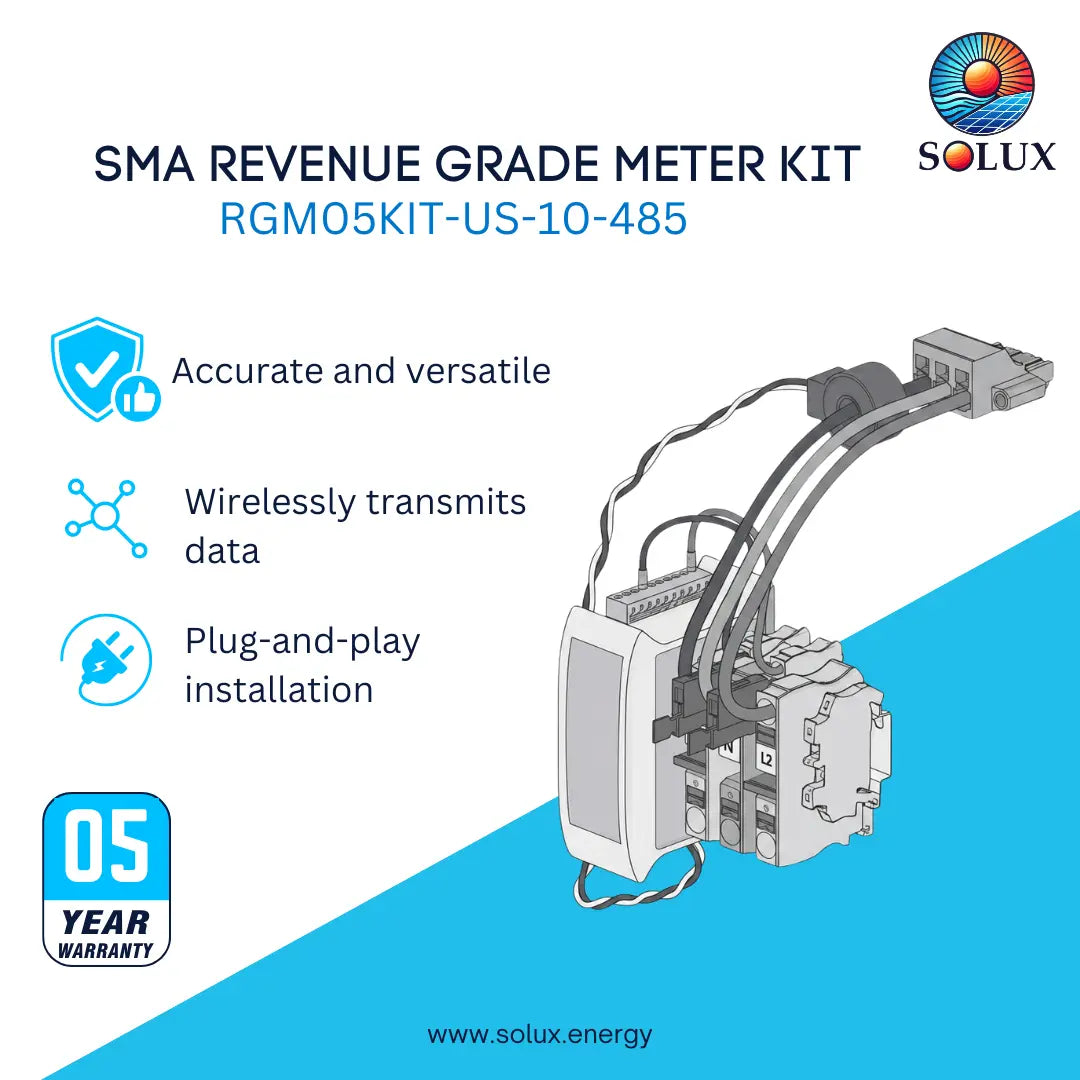

SMA Revenue Grade Meter RS485 Bundle - Includes RS485 Comm Module (MD.485-US-40)

SMA Revenue Grade Meter RS485 Bundle - Includes RS485 Comm Module (MD.485-US-40)

This product enables seamless energy utilization tracking, allowing users to monitor their solar energy systems effectively. The SMA Solar RGM05KIT-US-10-485 provides crucial data that facilitates better energy management and optimizes solar energy performance, ultimately enhancing user experience.

Technical Specifications

• Compatible inverter models:SMA SBx.x-1SP-US-41, SMA SBx.x-1SP-US-40
• Compatible inverter firmware: 2.04.74.R or later
• ANSI C12.20 measurement accuracy: 0.5%
• Operating voltage range: 45 - 65 Hz
• Rated CT current: 50 A
• Measurement category: Category III – 300 V AC
• Grids supported, single phase 2-wire: 208 V WYE, 208 V Delta (no neutral), 240/120 V Split phase, 240 V Delta (no neutral)
• Power consumption (typ.): <2 VA
• Dimensions (HxWxD): 100 x 100 x 85 mm / (3.94 x 3.94 x 3.35 in)
• Weight: 0.4 kg (0.88 lb)
• Protection Rating: NEMA 1 (IP40)
• Mounting type: DIN rail (included in kit)
• Supported communication interfaces: Modbus RTU (SunSpec Certified)
