Description
Rolls Surrette Battery R12-110AGM
Designed in compliance with applicable BCI,DIN,BS and IEC standards. Tested in compliance to BCI and IEC standards.
Technical Specifications:
- Weight: 30 kg / 66 lbs
- Length: 328 mm / 12.91"
- Width: 172 mm / 6.77"
- Height Incl. Term.: 220 mm / 8.66"
- Container: ABS
- Cover: ABS
- Handles: Rope / Plastic Handle
- Series: AGM-R
- Volts: 12
- Design: Grp 31
- Cells: 6
- Terminal Type: F12(M8) and TP08 Adapter [+21mm]
- Included Hardware: M8 stainless bolts & washers & TP08 adapter
- Size & Thread: M8
- Charge Voltage Range: 14.7V @ 25°C (77°F)
- Float Voltage Range: 13.8V @ 25°C (77°F)
- Recommended Charge Current: 20 A
- Maximum Charge Current: 35 A
- Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
- Internal Resistance: 9 mΩ
- Cold Crank Amps (CCA) 0°F / -18°C: 760
- Marine Crank Amps (MCA) 32°F / 0°C: 910
- Reserve Capacity (RC @ 25A): 205 Minutes
- Reserve Capacity (RC @ 75A): 65 Minutes
- Capacity AMP @ 20 Hour Rate: 110 Ah
-
Downloads

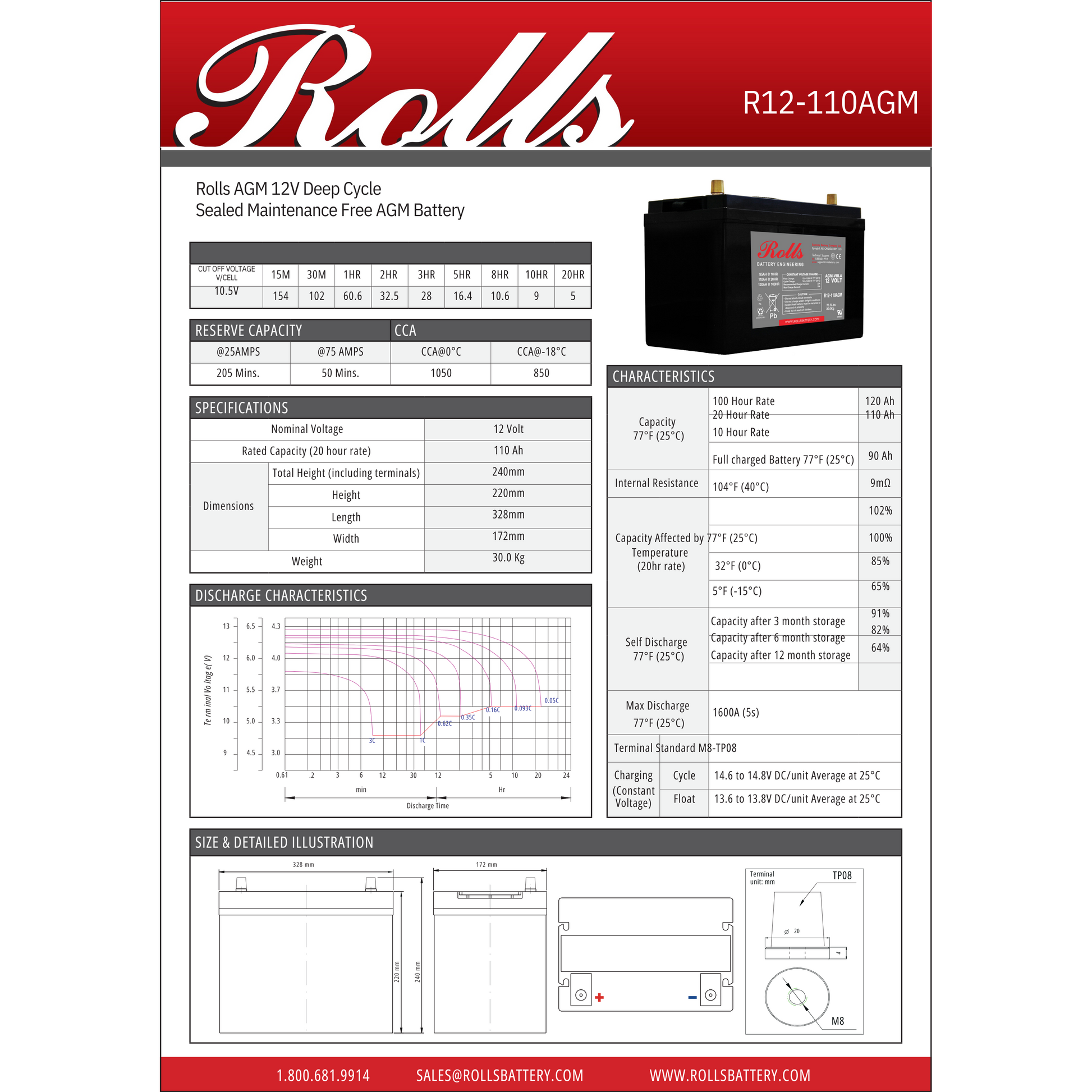

Datasheet
✔️ Download Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
1 Year Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
