Description

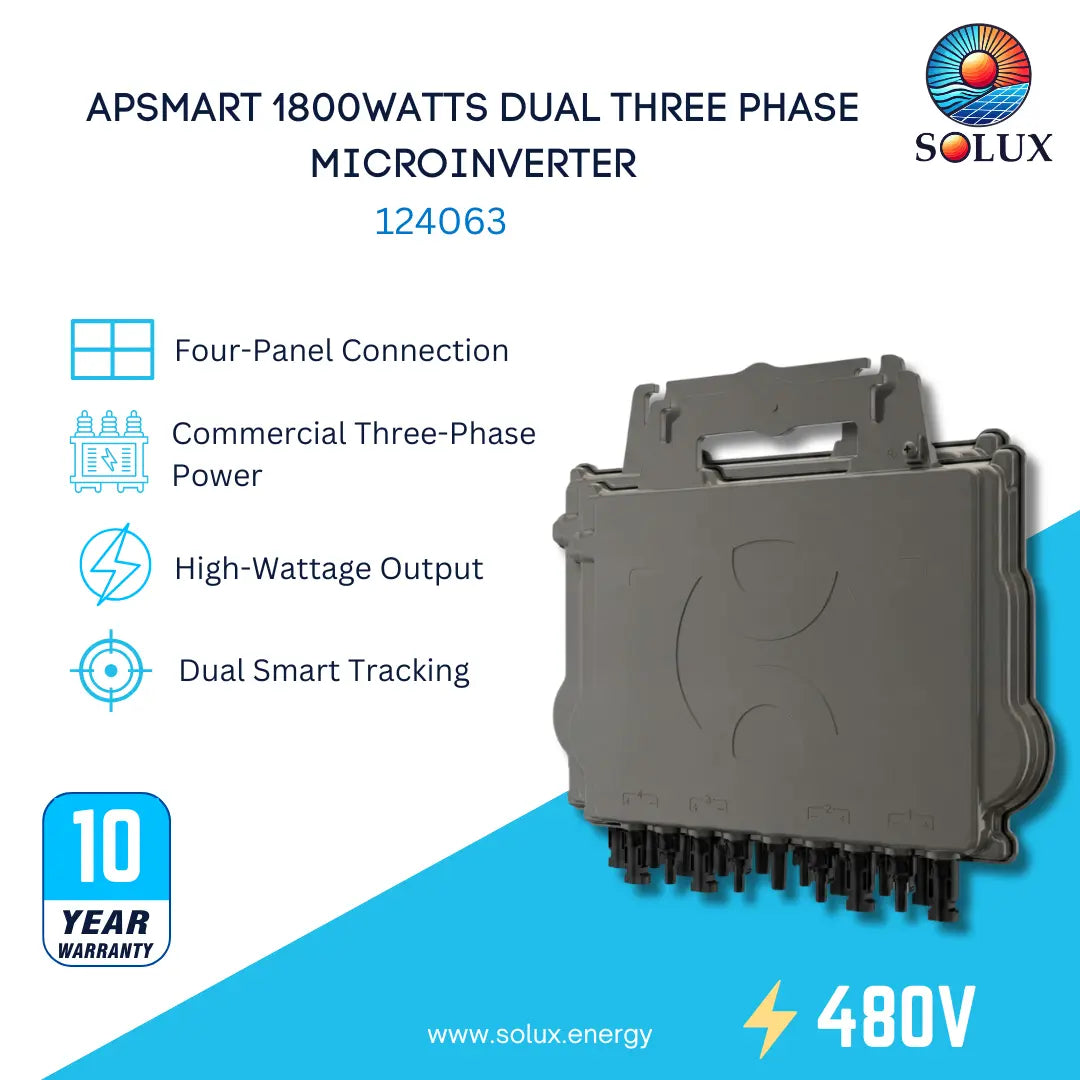

APSmart 124063 QT2-480V-5-WIRE 1800Watts Dual Three Phase Microinverter (Supports 315-670Watts per panel)
Designed for 3-phase grid connection (208V or 480V). Single unit connects to 4 modules, 2 MPPTs, module-level DC voltage. Maximum continuous AC output power 1728VA @ 208V, 1800VA @ 480V. Engineered to harness today’s high-capacity PV modules (Maximum input current 20A).
Technical Specifications.
- Operating Voltage Range: 26V-60V
- Maximum Units per 30A branch: 11
- AC Bus Cable: 10AWG
- Peak Efficiency: 96.5%
- Nominal MPPT Efficiency: 99.5%
- Dimensions (W x H x D): 359mm X 242mm X 46mm
- Weight: 13 lbs (6kg)
- DC Connector Type: Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
- Enclosure Environmental RatingP: Type 6
-
Resources
Datasheet
✔️ Datasheet
Quick Installation Guide
✔️ Quick Installation Guide
Warranty
10 Years Standard
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
