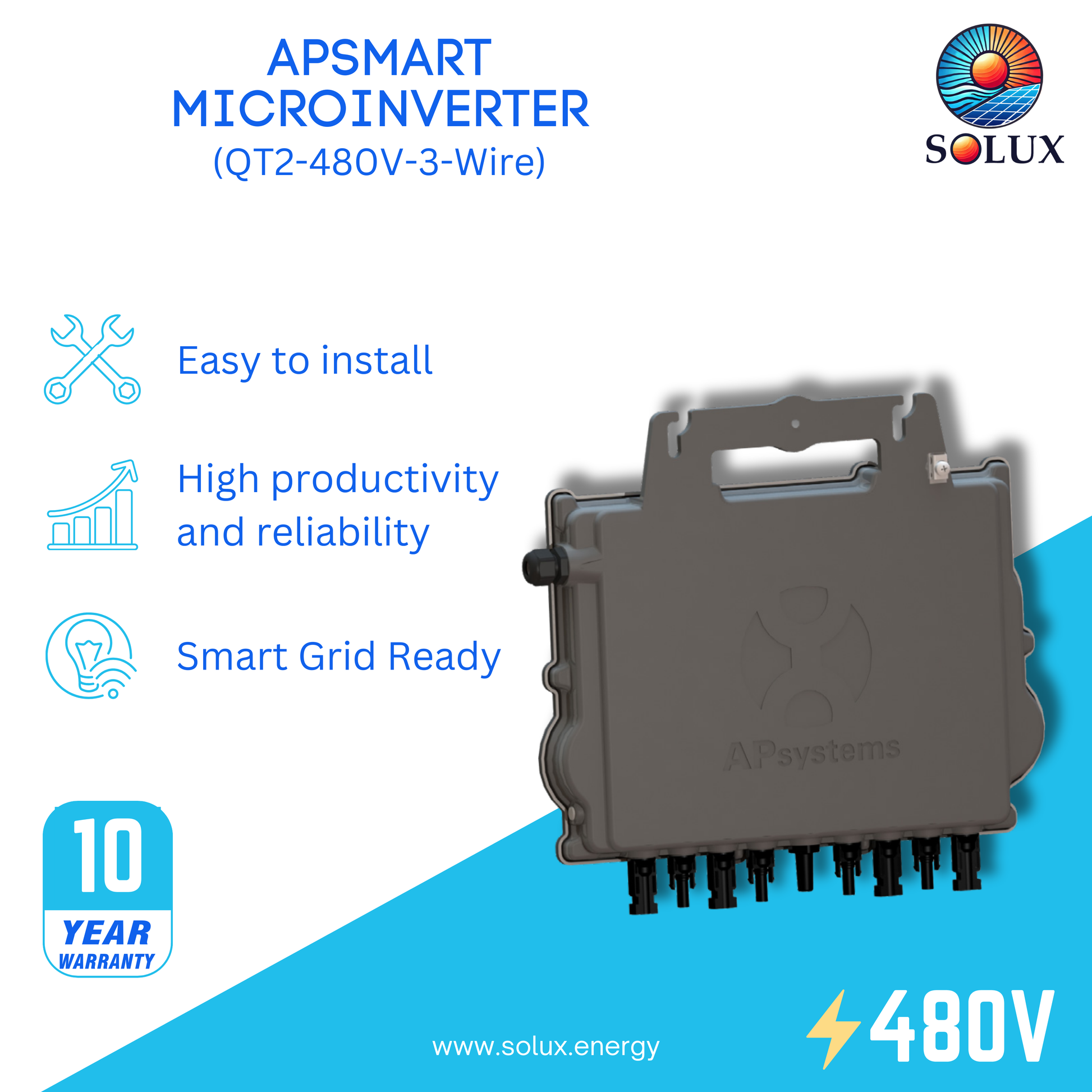

APSmart QT2-480V-3-WIRE 1800Watts Dual Three Phase Microinverter (Supports 315-670Watts per panel)

APsystems QT2-480V-3-WIRE 1800Watts Dual Three Phase Microinverter

Designed for 3-phase grid connection 480V.
Single unit connects to 4 modules, 2 MPPTs, module-level DC voltage.
Maximum continuous AC output power @ 480V.
Engineered to harness today’s high-capacity PV modules (Maximum input current 20A).
Integrated safety protection relay.
Adjustable power factor
Balancing 3-phase output
Compatible with both △ and Y 3-phase grid

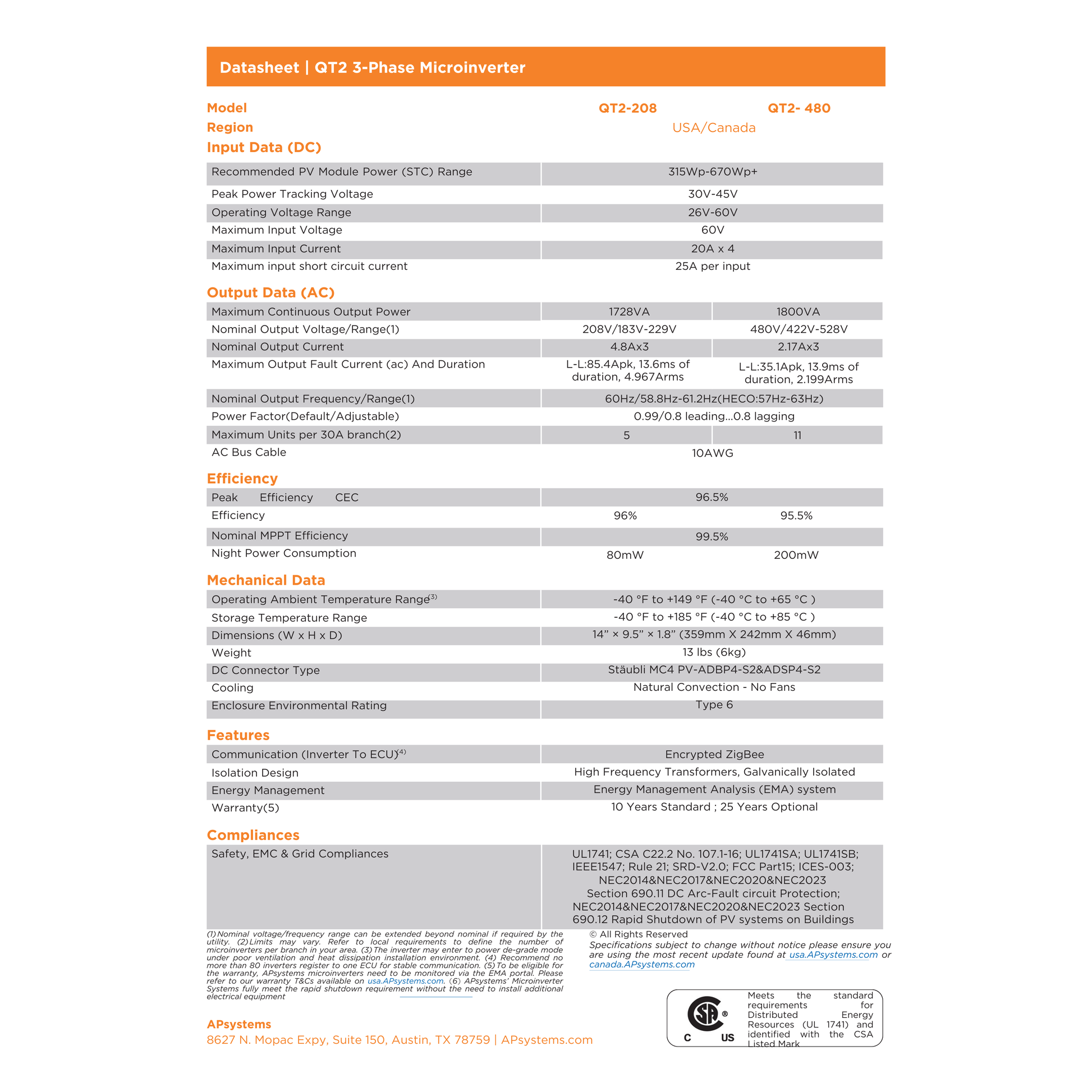

Technical Specifications:

• Recommended PV Module Power (STC) Range: 315Wp-670Wp+
• Peak Power Tracking Voltage: 30V-45V
• Operating Voltage Range: 26V-60V
• Maximum Input Voltage: 60V
• Maximum Input Current: 20A x 4
• Maximum input short circuit current: 25A per input
• Maximum Continuous Output Power: 1800VA
• Nominal Output Voltage/Range: 480V/422V-528V
• Nominal Output Current: 2.17Ax3
• Maximum Output Fault Current (ac) And Duration: L-L:35.1Apk, 13.9ms of duration, 2.199Arms
• Nominal Output Frequency/Range: 60Hz/58.8Hz-61.2Hz(HECO:57Hz-63Hz)
• Maximum Units per 30A branch: 11
• AC Bus Cable: 10AWG
• Peak Efficiency: 96.5%
• CEC Efficiency: 95.5%
• Nominal MPPT Efficiency: 99.5%
• Night Power Consumption : 200mW
• Dimensions (W x H x D): 359mm X 242mm X 46mm
• Weight: 13 lbs (6kg)
• DC Connector Type; Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
• Cooling: Natural Convection - No Fans
• Enclosure Environmental Rating: Type 6
