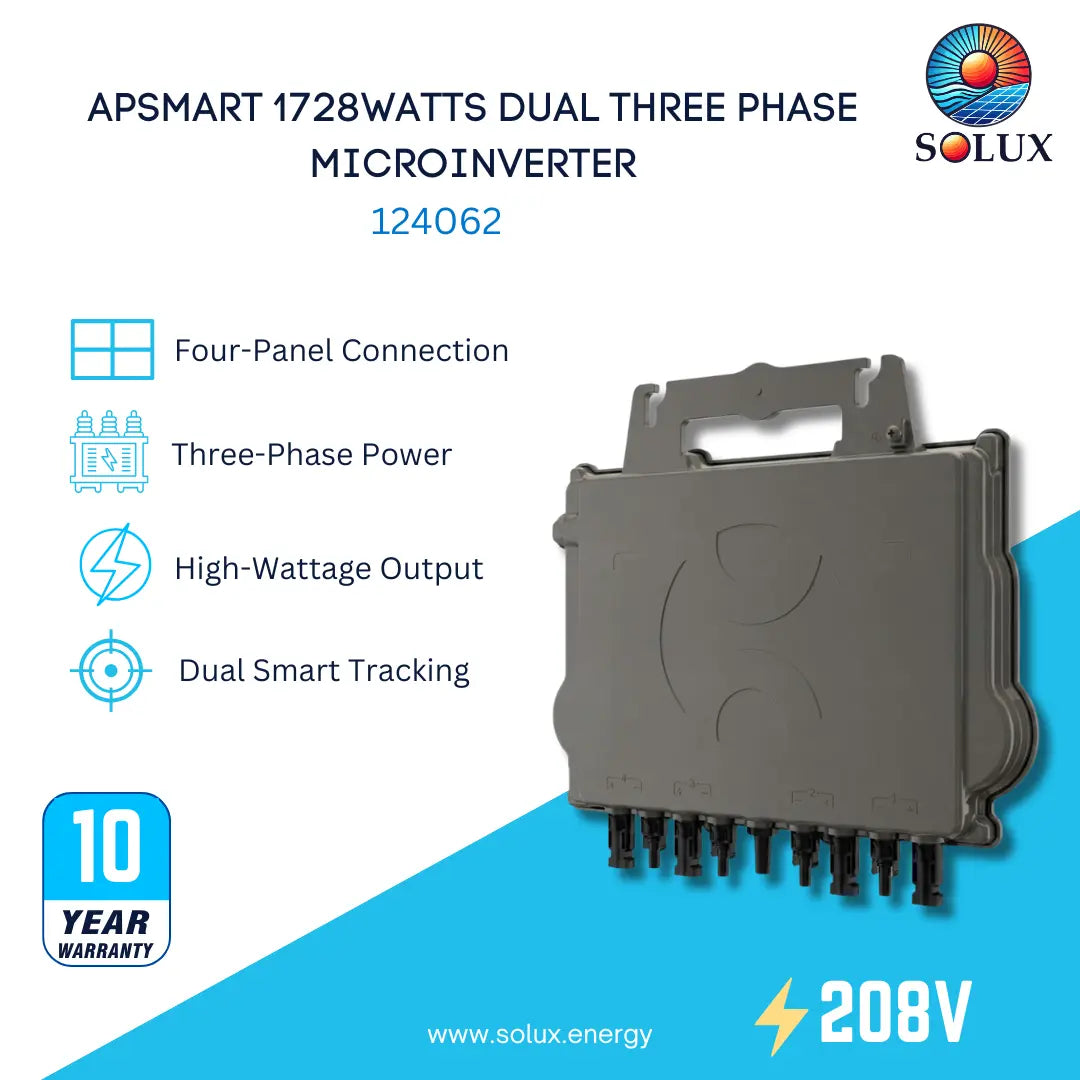

APSmart QT2-208V-5-WIRE 1728Watts Dual Three Phase Microinverter (Supports 315-670 Watts per panel)

APSmart QT2-208V-5-WIRE 1728Watts Dual Three Phase Microinverter

Designed for 3-phase grid connection (208V or 480V).
Single unit connects to 4 modules, 2 MPPTs, module-level DC voltage.
Maximum continuous AC output power 1728VA @ 208V, 1800VA @ 480V. Engineered to harness today’s high-capacity PV modules (Maximum input current 20A).
Integrated safety protection relay.
Adjustable power factor
Balancing 3-phase output
Compatible with both △ and Y 3-phase grid

Technical Specifications.

• Recommended PV Module Power (STC) Range: 315Wp-670Wp+
• Peak Power Tracking Voltage: 30V-45V
• Operating Voltage Range: 26V-60V
• Maximum Input Voltage: 60V
• Maximum Input Current: 20A x 4
• Maximum input short circuit current: 25A per input
• Maximum Continuous Output Power: 1728VA
• Nominal Output Voltage/Range: 208V/183V-229V
• Nominal Output Current: 4.8Ax3
• Maximum Units per 30A branch: 5
• AC Bus Cable: 10AWG
• Peak Efficiency: 96.5%
• CEC Efficiency: 96%
• Nominal MPPT Efficiency: 99.5%
• Night Power Consumption: 80mW
• Dimensions (W x H x D): 359mm X 242mm X 46mm
• Weight: 13 lbs (6kg)
• DC Connector Type: Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
• Cooling: Natural Convection - No Fans
• Enclosure Environmental RatingP: Type 6
