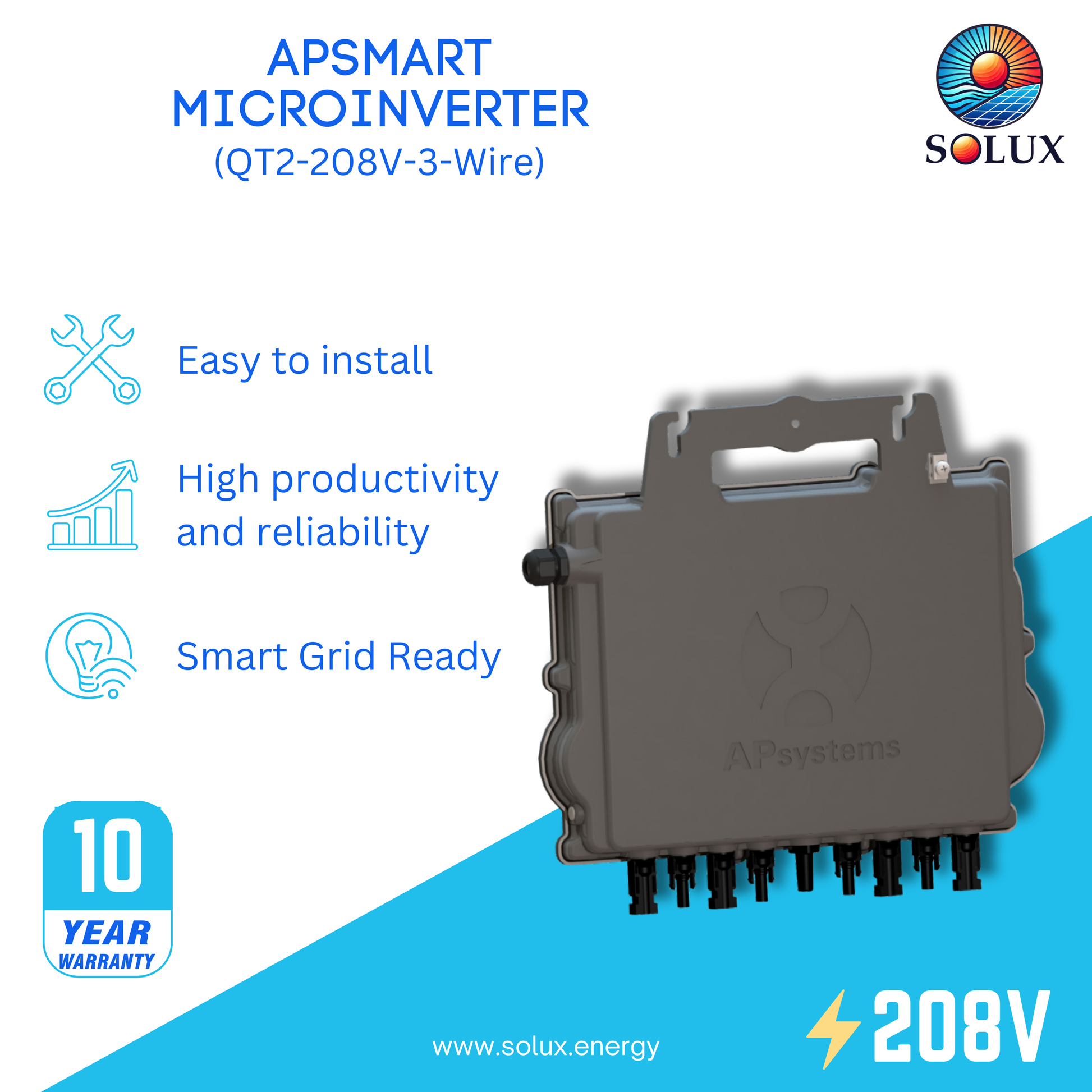

APSmart QT2-208V-3-WIRE 1728Watts Dual Three Phase Microinverter (Supports 315-670Watts per panel)

Maximize Your 3-Phase Power with QT2 Quad

Designed for 3-phase grid connection.
Single unit connects to 4 modules, 2 MPPTs, module-level DC voltage.
Maximum continuous AC output power 1728VA @ 208V.
Engineered to harness today’s high-capacity PV modules (Maximum input current 20A).
Integrated safety protection relay
Adjustable power factor
Balancing 3-phase output
Compatible with both △ and Y 3-phase grid

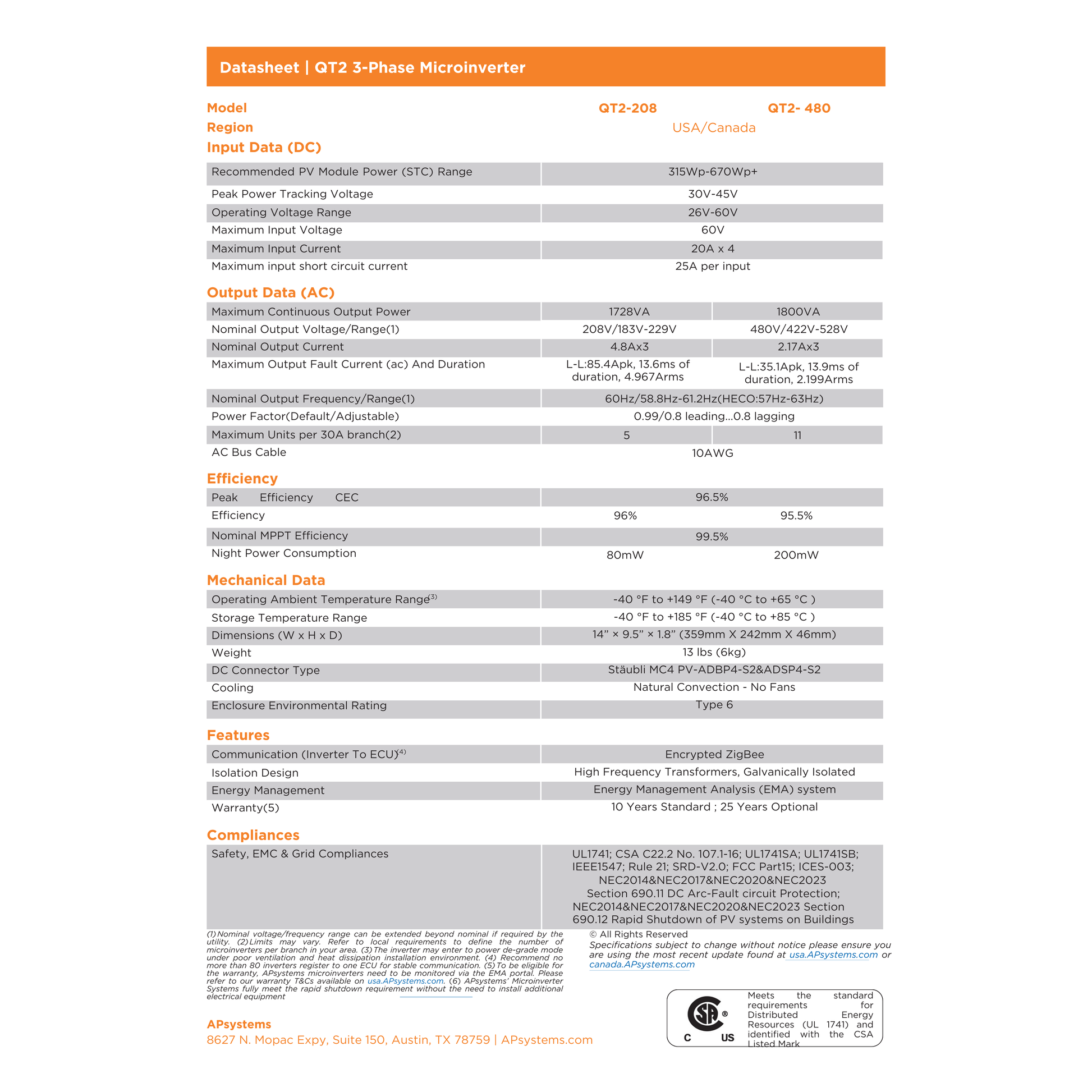

TECHNICAL SPECIFICATIONS

• Recommended PV Module Power (STC) Range: 315Wp-670Wp+
• Peak Power Tracking Voltage: 30V-45V
• Operating Voltage Range: 26V-60V
• Maximum Input Voltage: 60V
• Maximum Input Current: 20A x 4
• Maximum input short circuit current: 25A per input
• Maximum Continuous Output Power: 1728VA
• Nominal Output Voltage/Range: 208V/183V-229V
• Nominal Output Current: 4.8Ax3
• Maximum Output Fault Current (ac) And Duration: L-L:85.4Apk, 13.6ms of duration, 4.967Arms
• Nominal Output Frequency/Range: 60Hz/58.8Hz-61.2Hz(HECO:57Hz-63Hz)
• Power Factor(Default/Adjustable): 0.99/0.8 leading...0.8 lagging
• Maximum Units per 30A branch: 5
• AC Bus Cable: 10AWG
• Peak Efficiency: 96.5%
• CEC Efficiency: 96%
• Nominal MPPT Efficiency: 99.5%
• Night Power Consumption: 80mW
• Dimensions (W x H x D): 359mm X 242mm X 46mm
• Weight: 13 lbs (6kg)
• DC Connector Type: Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
• Cooling: Natural Convection - No Fans
• Enclosure Environmental Rating: Type 6
