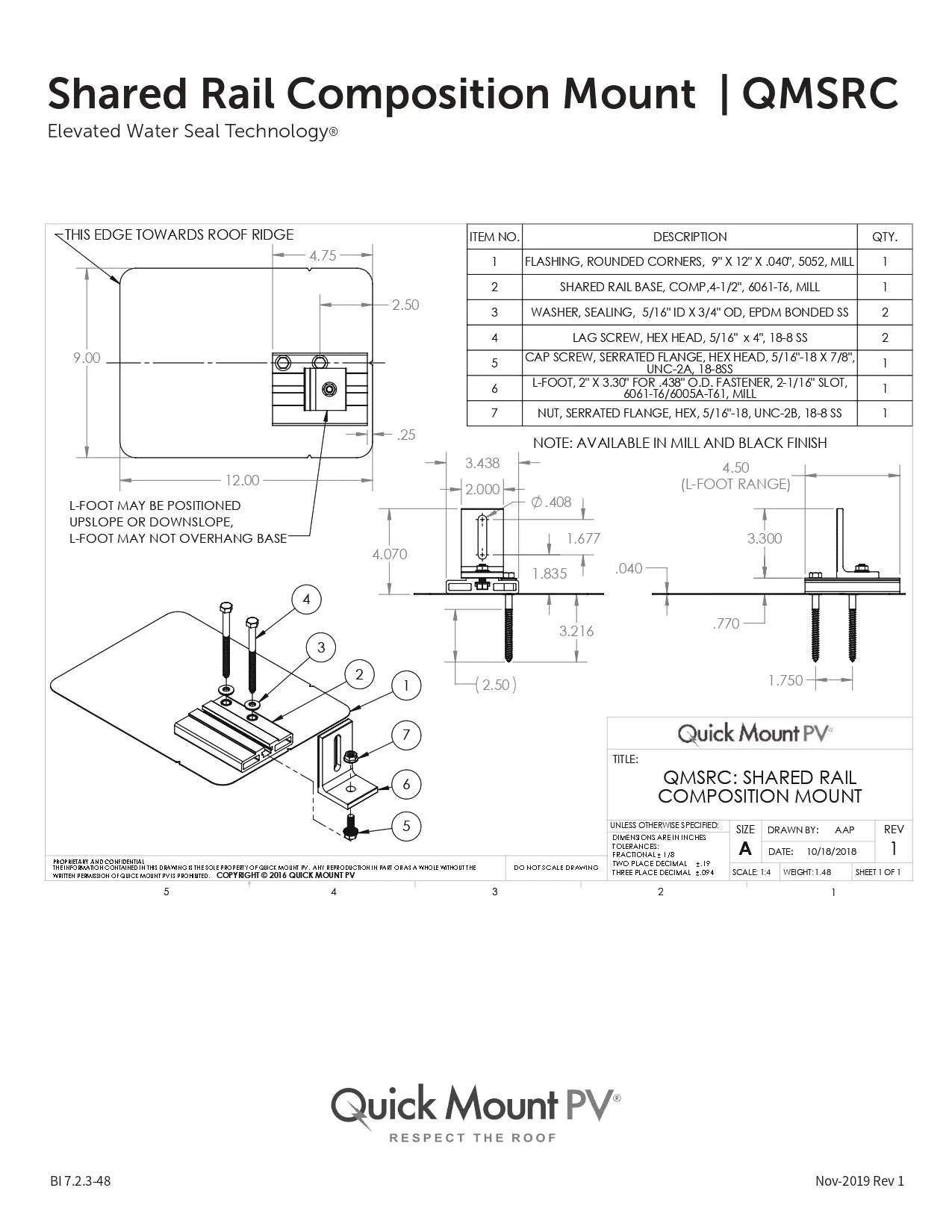

  • Technical engineering drawing for the QMSRC-B-12 Fewer Roof Penetrations (Shared Rail Composition Mount), detailing a 9" x 12" flashing plate with rounded corners and an integrated shared rail base. The diagram includes dimensional views showing a 3.438-inch total height, a 4.50-inch L-foot adjustment range, and an exploded view of the assembly including dual lag screws, sealing washers, and a 6061-T6 aluminum L-foot.

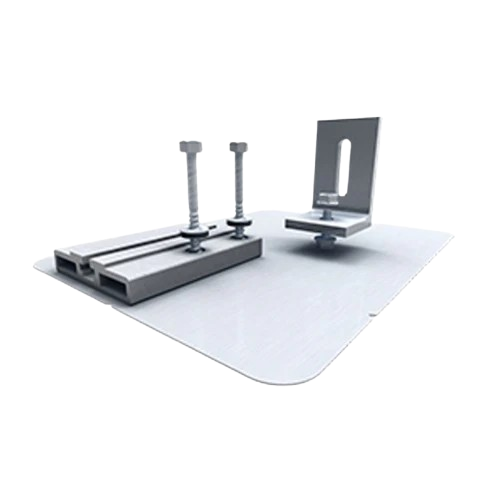

  • Product image of QMSRC-B-12: 3D rendering of a silver aluminum solar mounting assembly featuring a flat square flashing plate, an L-foot bracket with a vertical slot, and a separate rail attachment base secured with two vertical bolts.
1 3

QuickMount Shared Rail Mount, Comp, Black

$20.82 USD
$20.82 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

The Shared Rail Composition Mount with L-foot and lags is designed to work with rail systems in shared-rail and modified shared-rail configurations. Shared rail systems cut down the number of rails, penetrations and components needed so systems are less expensive, lighter, and simpler to design. The use of Quick Mount PV’s Shared Rail Composition Mount assists with alignment of the rows of rail by providing 4.5 inches of north / south adjustability of the L-foot. The Shared Rail Composition Mount features a 9 x 12-inch aluminum flashing with alignment guides and rounded corners to easily slide under shingles and speed installation on the roof.
All orders are subject to product availability. We verify stock before processing and will notify customers if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

QuickMount

  • Description

    QuickMount Shared Rail Mount, Comp, Black

    The Shared Rail Composition Mount with L-foot and lags is designed to work with rail systems in shared-rail and modified shared-rail configurations. Shared rail systems cut down the number of rails, penetrations and components needed so systems are less expensive, lighter, and simpler to design. The use of Quick Mount PV’s Shared Rail Composition Mount assists with alignment of the rows of rail by providing 4.5 inches of north / south adjustability of the L-foot. The Shared Rail Composition Mount features a 9 x 12-inch aluminum flashing with alignment guides and rounded corners to easily slide under shingles and speed installation on the roof.

    • Manufacturer Part Number: QMSRC-B-12
    • Manufacturer Warranty: 25 Years

  • Downloads

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    ✔️ Quick Installation Guide

    Warranty

    ✔️ Warranty

Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
