Quick Mount QMR-HEC-A-20 Hidden End Clamp Mill

$5.13 USD
$5.13 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Component Type: Hidden / Concealed Solar Module End Clamp
✔️ Manufacturer: IronRidge / Quick Mount PV
✔️ Part / Catalog Number: QMR-HEC-A-20 / IR-QMR-HEC-A-20
✔️ Series: QRail® Series Accessories
✔️ Application: Secures the outer end modules of a solar PV array from underneath, keeping the clamping hardware completely hidden beneath the panel frame for a sleek, flush, hardware-free aesthetic along the array perimeter.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

QuickMount

  • Description

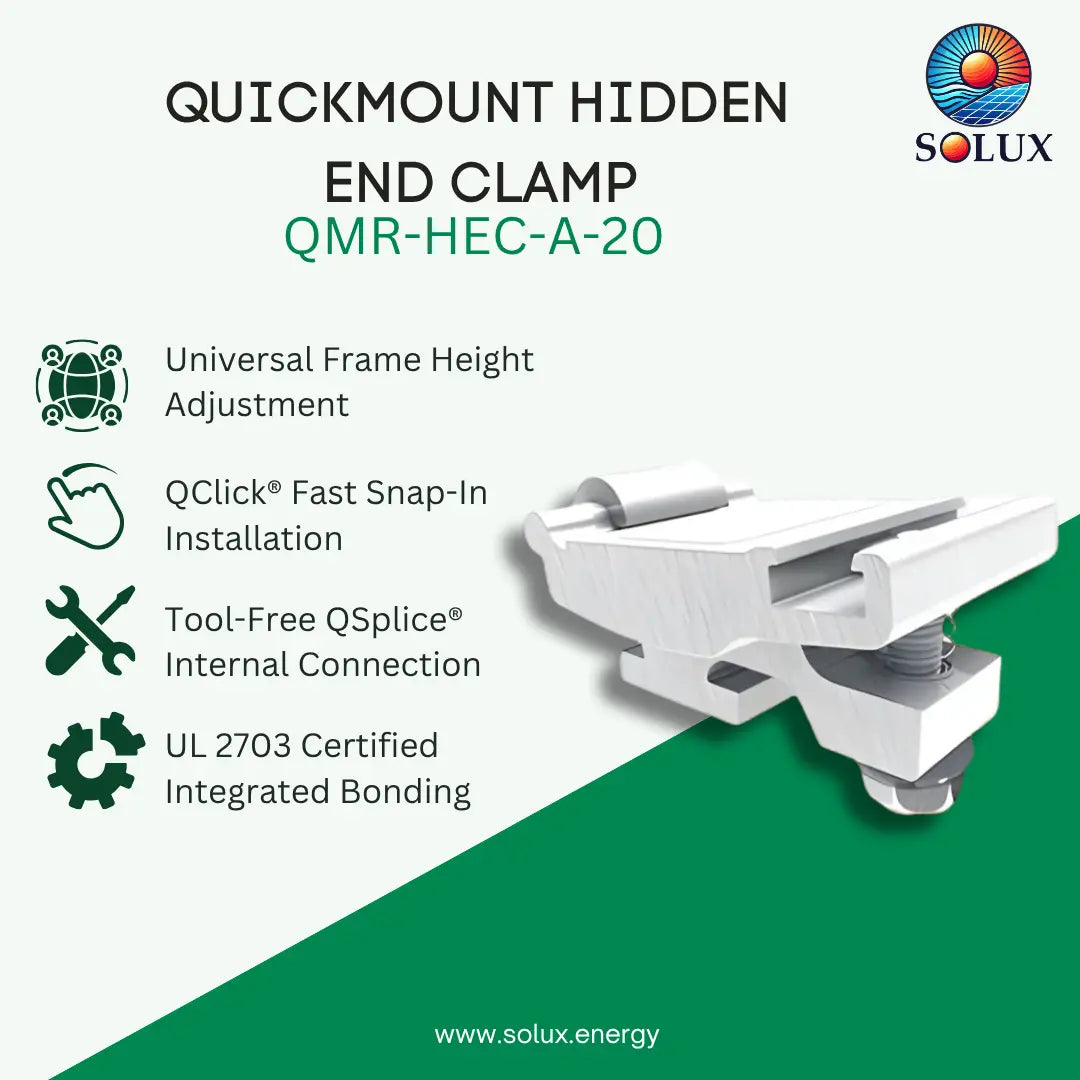

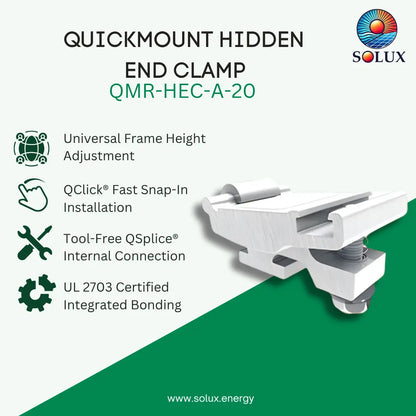

    Quick Mount Hidden End Clamp, Mill

    The QMR-HEC-A-20 Hidden End Clamp (Mill finish) is a specialized solar panel mounting accessory designed for clean, low-profile end clamping of framed photovoltaic (PV) modules in rail-based solar mounting systems. It’s part of the QRail® Series of mounting components used to securely affix modules while minimizing visible hardware around the array edges.

    • Manufacturer Part Number: QMR-HEC-A-20
    • Manufacturer Warranty: 25 Years
    • Finish: Mill finish

  • Resources

    Datasheet

    No Datasheet file resource available. Email support@solux.energy for file request.

    Quick Installation Guide

    No Quick Installation guide available. Email support@solux.energy for file request.

    Warranty

    No Warranty file resource available. Email support@solux.energy for file request.
