QuickMount QM-TLF5-M1 5 Degree Fixed Tilt L-Foot Mill

QuickMount PV 5-Degree Fixed Tilt Leg - Mill Finish (QM-TLF5-M1)

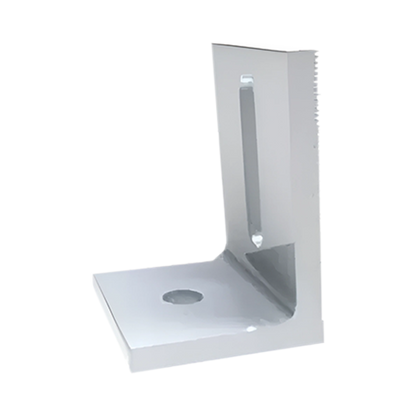

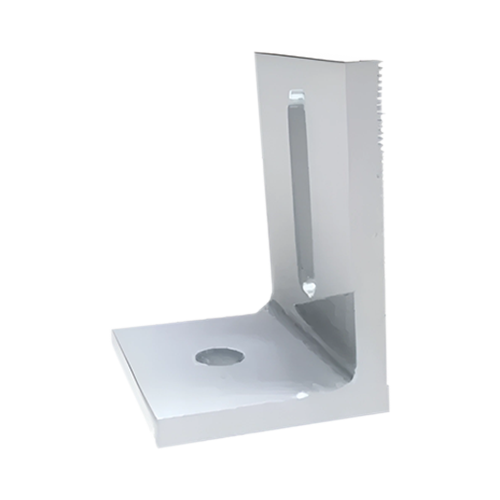

The QuickMount 5-Degree Fixed Tilt L-Foot (QM-TLF5-M1) is a structural attachment bracket designed to establish a fixed 5-degree tilt angle for solar PV modules on flat and low-slope roof surfaces. Part of the Fixed Tilt and QBase Roof Attachment System accessories, this component elevates panels relative to the roof plane to optimize solar energy production and facilitate natural rainwater drainage.

Manufactured from high-strength aluminum in a mill finish, it provides a rigid interface between roof attachment points (such as QBase posts) and solar racking rails.

• Tilt Angle: 5 Degrees
• Finish Color: Mill Finish Aluminum (-M1)
• Material: High-strength, weather-resistant 6000-series aluminum alloy
• Compatibility: Integrates seamlessly with Quick Mount PV posts (like QBase), flashing systems, and standard racking rails (such as IronRidge XR or QRail profiles)
