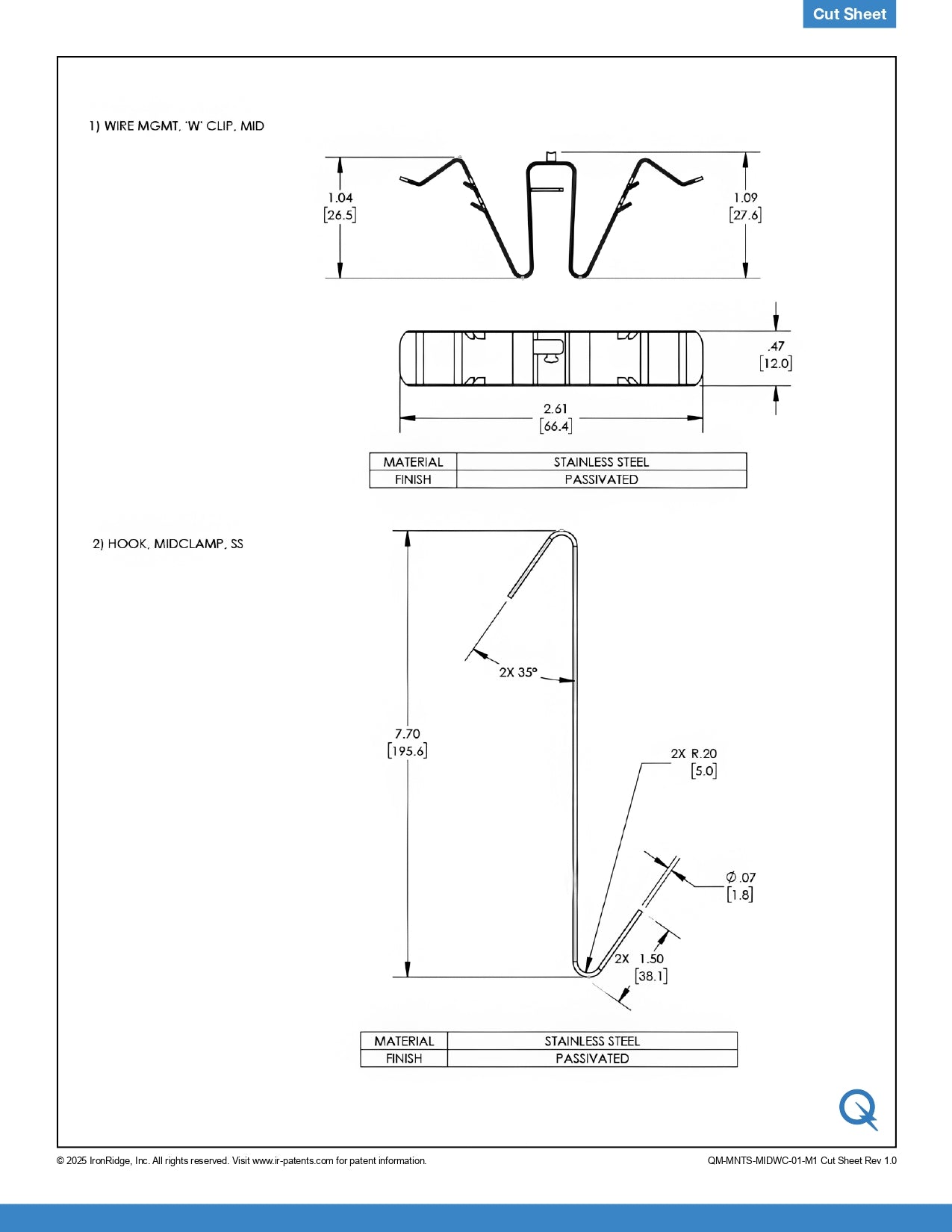

  • Technical specification sheet showing dimensioned line drawings of a wire cup and hook with material and finish notes for stainless steel, on a white page with a blue Q logo.

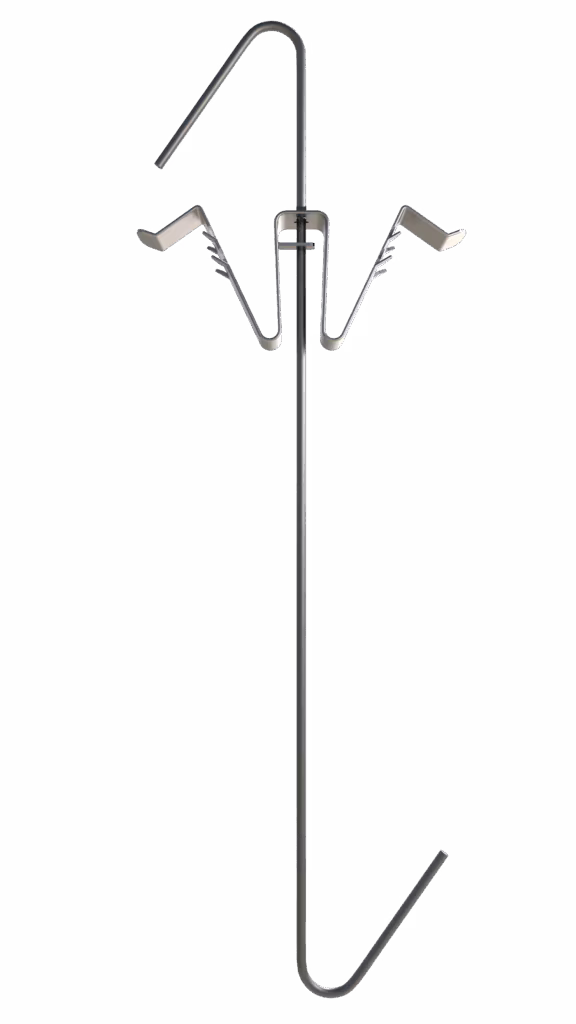

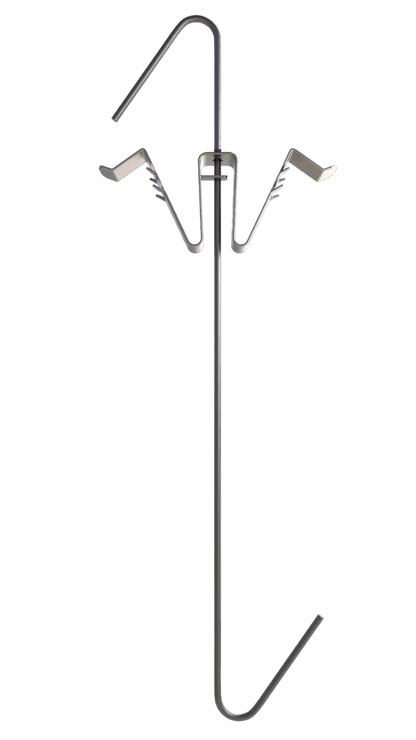

  • A dark gray metal garden stake or trellis support with a central mounting bracket and two angled side supports, shown against a plain white background.
1 3

IronRidge QM-MNTS-MIDWC-01-M1 Quick Mount Mantis Series Wire Clip

$76.20 USD
$76.20 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Mid-Panel Wire Retention: Clips directly onto standard solar module frames (under the lip/flange) to route, secure, and manage PV wires and microinverter/optimizer trunk cables between panels.
✔️ Code & NEC Compliance: Elevates array wiring away from sharp module edges and roof surfaces to protect conductor insulation from environmental degradation, high temperatures, and physical abrasion.
✔️ Tool-Free Fastening: Snaps into place by hand onto module frame edges, streamlining layout speed and cable routing during module installation.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Ironridge

  • Description

    QuickMount Mantis Mid Panel Wire Clip, Universal (Bag of 50)

    Keep your solar panel wires organized and safe with the QuickMount Mantis Mid Panel Wire Clip  QM-MNTS-MIDWC-01-M1). Loose wiring under an array can sag onto hot roof shingles, leading to wire damage or short circuits. This universal clip snaps easily onto module frames to hold PV cables tightly in place, keeping your installation clean and protected.

    Designed for the QuickMount Mantis series, these clips make wire management simple without needing special tools. Each bag comes with 50 clips to handle large array rows quickly.

    Technical Specifications:

    • Manufacturer Part #: QM-MNTS-MIDWC-01-M1
    • Item Weight: 0.034 lb
    • Dimensions (LxWxH): 3.5 x 3 x 2 inches
    • Manufacturer Product Line: Mantis

  • Resources

    Installation Manual

    ✔️ Download Installation Manual

    Cut Sheet

    ✔️ Download Cut Sheet

    Warranty

    No warranty file resource available. Email support@solux.energy for file request.

Download Cut Sheet of Mantis Mid Panel Wire Clip
