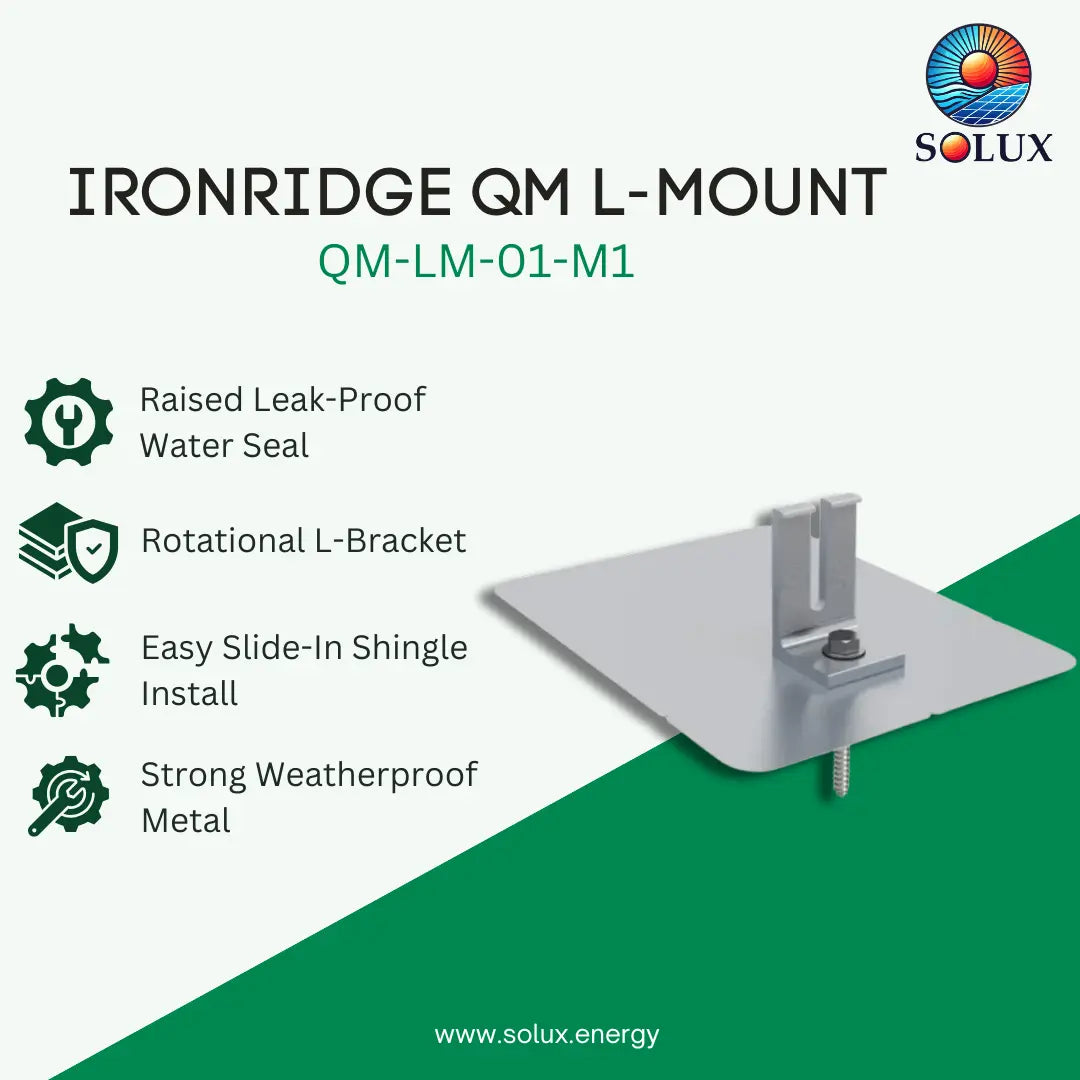

  • SOLUX Ironridge QM L-Mount product graphic showing a silver metal bracket with a screw post, alongside feature callouts for raised leak-proof water seal, rotational L-bracket, slide-in shingle install, and weatherproof metal.

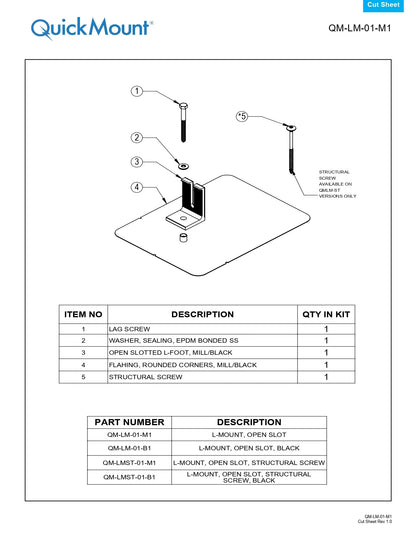

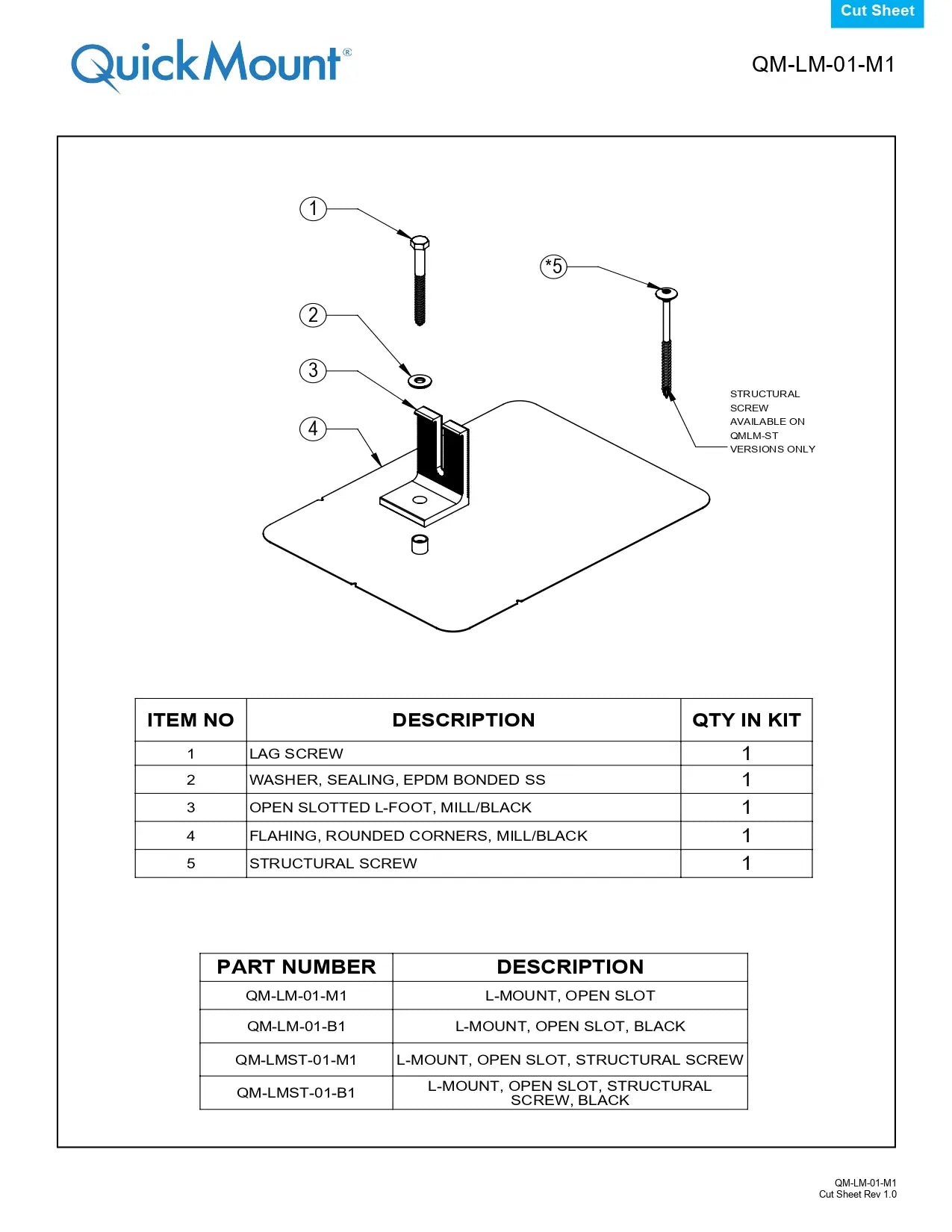

  • QuickMount cut sheet diagram for QM-LM-01-M1, showing a line drawing of the hardware kit components with numbered callouts and two tables listing included items and part descriptions.

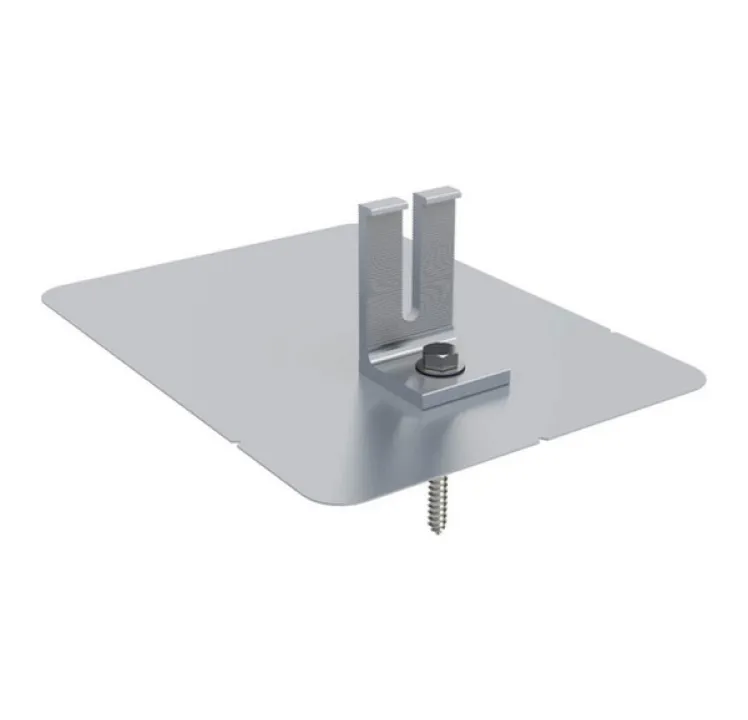

  • A square metal mounting plate with a central bracket and a visible screw through a bolt, shown on a plain white background.
1 3

IronRidge QM-LM-01-M1 L-Mount, 9” x 12”, Mill

$9.67 USD
$9.67 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Component Type: Composition Shingle Roof Mount & Flashing Kit
✔️ Manufacturer: IronRidge / Quick Mount PV
✔️ Part / Catalog Number: QM-LM-01-M1
✔️ Series: L-Mount Series
✔️ Application: Provides a elevated, waterproof mounting point on composition/asphalt shingle roofs for attaching solar racking rails.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

IronRidge

  • Description

    IronRidge QM L-Mount 9" x 12" - Mill Finish (QM-LM-01-M1)

    The IronRidge QM L-Mount (QM-LM-01-M1) is an all-in-one roof attachment system engineered to provide a secure, watertight mounting point on composition and asphalt shingle roofs. Utilizing QuickMount QBlock elevated water-seal technology, it creates an elevated anchor point that diverts water away from roof penetrations while supporting solar racking rails.

    Built with an aluminum 9" x 12" flashing plate and a heavy-duty L-foot in a natural mill finish, the L-Mount facilitates fast, code-compliant installations across residential and commercial composition shingle solar projects.

    • Manufacturer: IronRidge
    • Part #: QM-LM-01-M1
    • Catalog #: QM-LM-01-M1
    • Type: L-Mount
    • Color: Mill

  • Resources

    Datasheet

    ✔️ Datasheet

    Installation Guide

     No installation file resource available. Email support@solux.energy for file request.

    Warranty

    ✔️ 25-year Warranty


Download Spec Sheet of QuickMount L-Mount, Mill
