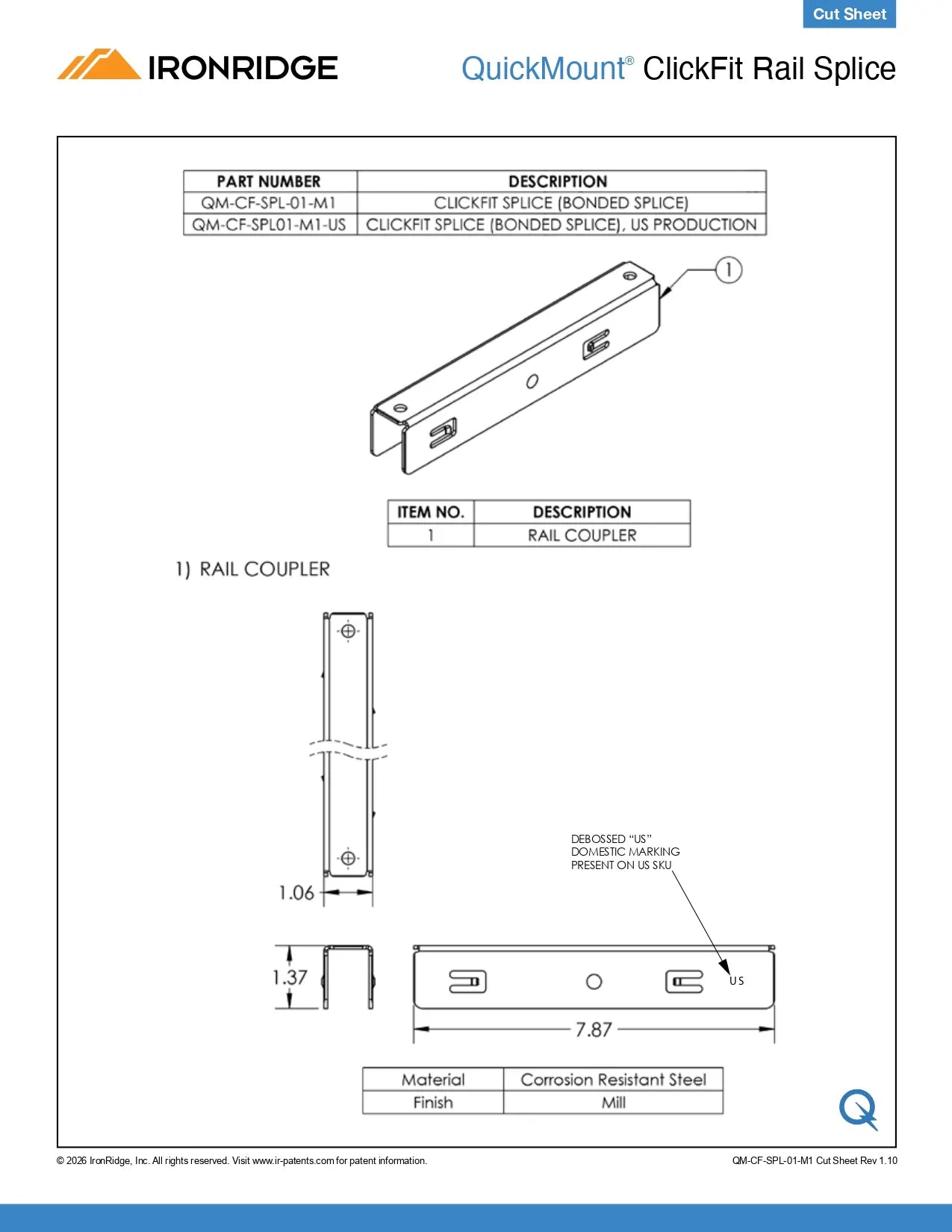

  • Technical specification sheet for an IronRidge QuickMount ClickFit Rail Splice, showing line drawings of the rail coupler with dimensions, part number QM-CF-SPLC-M1, and material specified as corrosion resistant steel.
  • A silver metal mounting bracket with pre-drilled holes and a rectangular slot cutout, shown on a plain white background.
1 3

Quick Mount QM-CF-SPL01-M1-US 171.5" - Mill (Domestic Content)

$8.08 USD
$8.08 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Tool-Less Snap-In Assembly: Slides directly into the internal profile of adjacent ClickFit rail ends, snapping securely into place without self-tapping screws or extra hardware.
✔️ Integrated Equipment Grounding: Certified to UL 2703 standards, incorporating bonding pins that pierce rail metal surfaces to establish continuous electrical grounding across spliced rail sections.
✔️ Structural Continuity: Provides structural support across rail joins while accommodating thermal expansion and contraction across array rows.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

QuickMount

  • Description

    QuickMount QM ClickFit Bonded Splice - Mill (QM-CF-SPL01-M1-US)

    Connect ClickFit rails seamlessly with the QuickMount Domestic ClickFit Bonded Splice (MPN: QM-CF-SPL01-M1-US). Splicing mounting rails usually requires separate grounding straps or extra hardware, slowing down roof work. Made in the USA, this mill-finish aluminum splice slides directly into rail ends to lock sections together while providing built-in electrical bonding.

    Engineered by QuickMount (an IronRidge company), it speeds up array assembly and ensures a continuous ground path across extended rail spans.

    Technical Specs:

    • Manufacturer Part #: QM-CF-SPL01-M1-US
    • Item Weight: 0.596 lb
    • Dimensions (LxWxH): 6 x 4 x 3 inches
    • Manufacturer Product Line: ClickFit

  • Resources

    Cut Sheet

    ✔️ Download Cut Sheet

    Installation Manual

    ✔️ Download Installation Manual

    Warranty

    No warranty file resource available. Email support@solux.energy for file request.


Download Cut Sheet of QM ClickFit Bonded Splice
