IronRidge Quick Mount QM-CF-LT-165M-US QM LTE Rail 165.4" - Mill Domestic

$61.71 USD
$61.71 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Tool-Free Snap Architecture: Engineered with ClickFit side and top channels that accept snap-in L-feet (QM-CF-LFT-01-M1), rail clickers (QM-CF-CLKR-01-M1), wire clamps (QM-CF-WCLMP-01-B1), and MLPE mounts (QM-CF-MLPE-01-M1) without standard T-bolts.
✔️ Integrated Equipment Grounding (UL 2703): UL 2703 listed rail profile that creates an integrated bonding pathway across splices (QM-CF-SPL01-M1-US), mid/end clamps (QM-CF-MID-01-B1), and module frames.
✔️ Lightweight Roof Loading Profile: Tailored for residential roof installations where standard snow and wind loads allow for a lighter aluminum profile, optimizing roof dead load and material costs.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

QuickMount

  • Description

    QuickMount ClickFit LTE Rail 165.4" - Mill, US Production (QM-CF-LT-165M-US)

    The QuickMount ClickFit LTE Rail (QM-CF-LT-165M-US) provides a domestic US-produced mounting beam engineered for residential solar arrays.

    Extruded in lightweight aluminum with an uncoated mill finish, this 165.4-inch (13 feet 9.4 inches) rail uses ClickFit snap-in technology to connect solar components quickly without extra loose hardware or pre-drilled holes.

    Technical Specs:

    • Manufacturer Part #: QM-CF-LT-165M-US
    • Item Weight: 5.981 lb
    • Dimensions (LxWxH): 6 x 4 x 3 inches
    • Manufacturer Product Line: ClickFit

  • Resources

    Installation Manual

    ✔️ Download Installation Manual

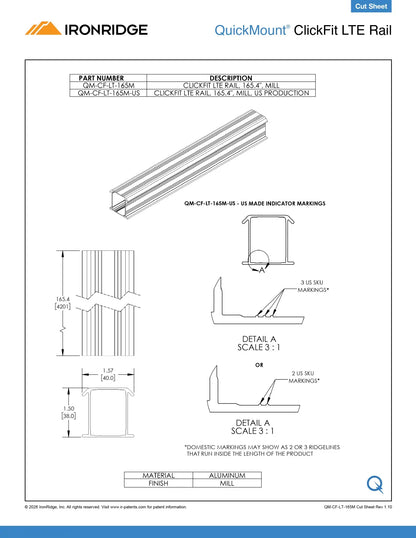

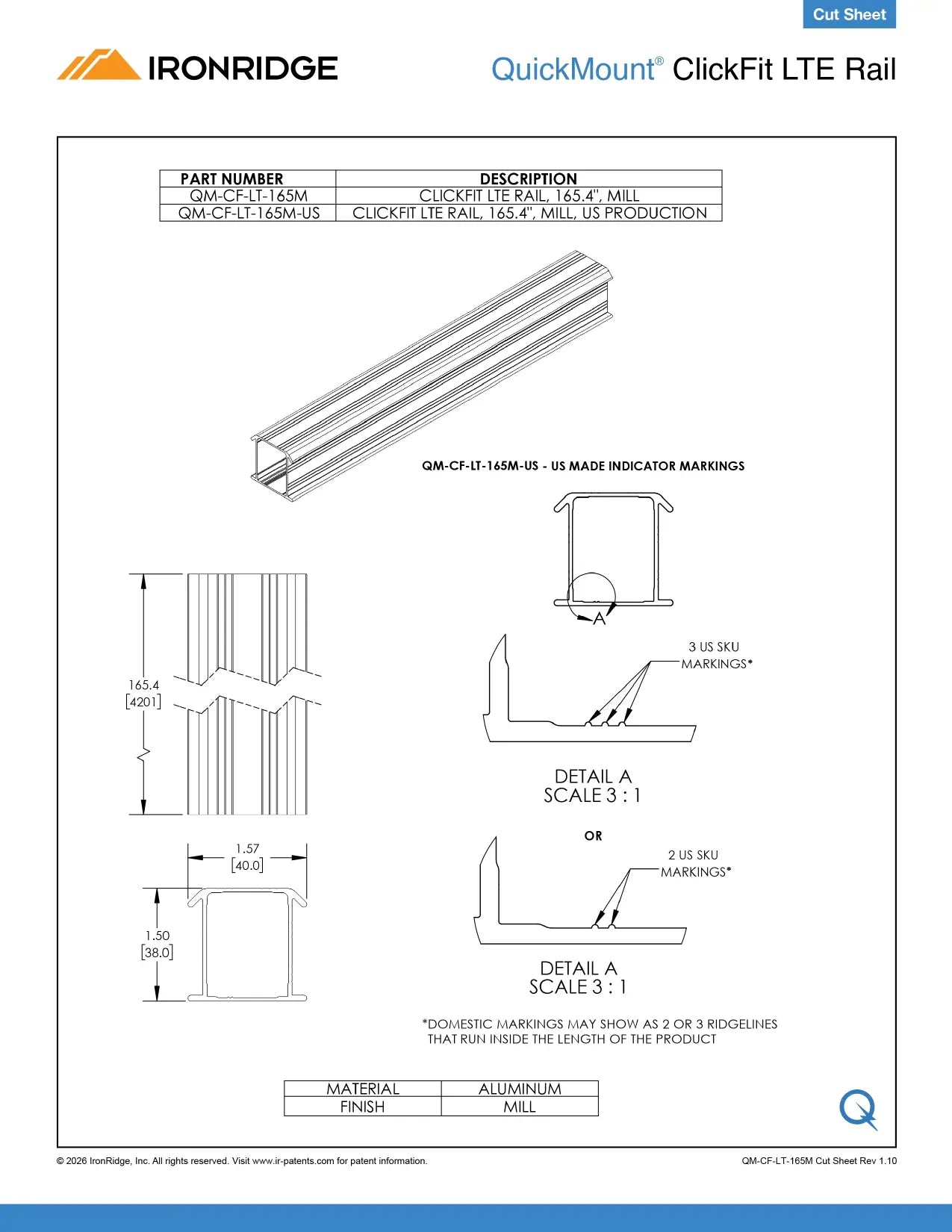

    Cut Sheet

    ✔️ Download Cut Sheet

    Warranty

    ✔️ 25-year warranty

Download Cut Sheet of LTE Rail
