Description

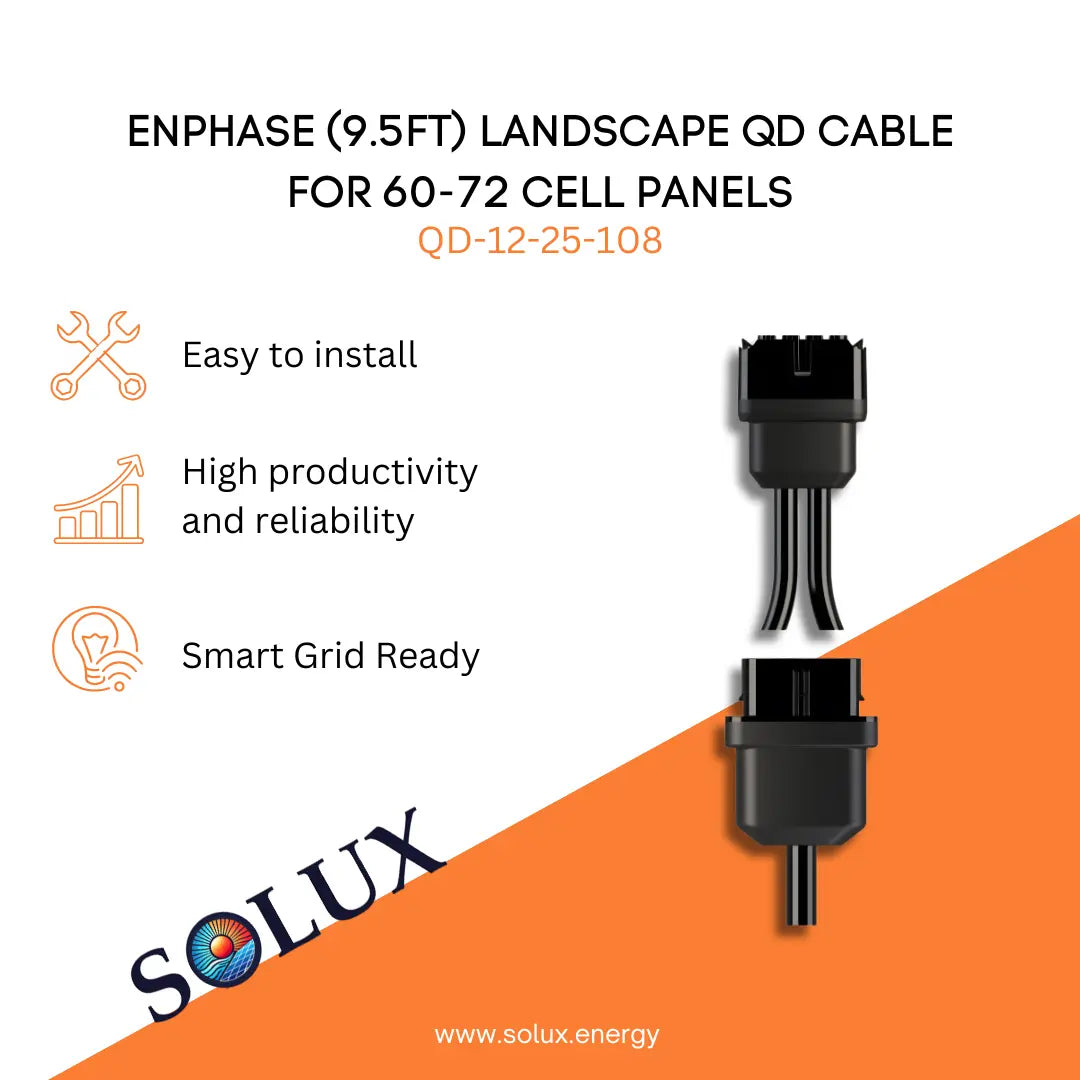

Enphase (9.5ft) Landscape QD Cable for 60-72 cell panels - 108 Connectors
The QD-12-25-108 is an AC connectorized trunk cable manufactured by Enphase Energy for commercial solar PV systems using IQ Commercial microinverters (e.g., IQ8 series). It is a continuous 12-AWG cable with pre-installed connectors that allow microinverters to plug directly into the AC branch circuit, enabling faster and simpler installation in solar arrays.
Technical Specifications:
- QD cable (Large Landscape) (4x12AWG) for 60-72 cell.
- Connector spacing is 2.9m (9.5ft). · 2.5m (8.2ft) max spacing between microinverters.
- 108 4-pin male connectors plug directly into the IQ8 Commercial Microinverters.
- 17 additional center taps spaced every 6 connectors. Centre tap connectors spaced at half-spacing to maintain connector spacing.
- Cable Type: QD connectorized AC trunk cable
- Conductor Size: 12 AWG
- Shipping Weight: 222 lb
- Shipping Dimensions: 38.5 x 22.75 x 21.25 in
- Case Qty: 6
- Number of Conductors: 4 conductors
- Voltage Rating: 600 V cable / up to 277 VAC connectors
- Connector Type: 4-pin male connectors
-
Downloads

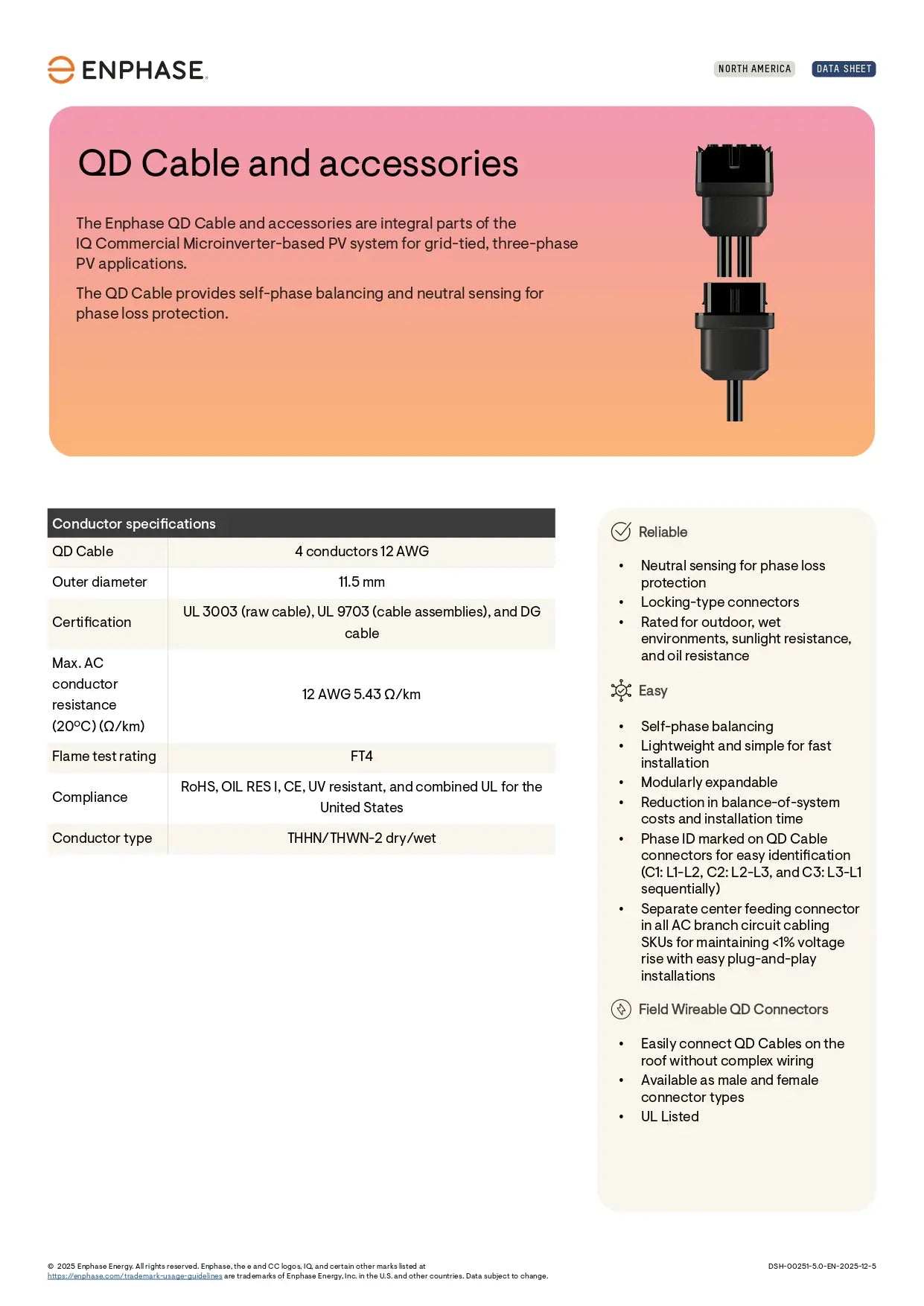

Datasheet
✔️ Datasheet
Quick Installation Guide
No Quick Installation guide available. Email support@solux.energy for file request.
Warranty
No Warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
