Enphase QD-12-25-108 2.9m (9.5ft) Landscape QD Cable for 60-72 cell panels - 108 Connectors

Enphase QD-12-25-108 2.9m (9.5ft) Landscape QD Cable for 60-72 cell panels - 108 Connectors

The QD-12-25-108 is an AC connectorized trunk cable manufactured by Enphase Energy for commercial solar PV systems using IQ Commercial microinverters (e.g., IQ8 series). It is a continuous 12-AWG cable with pre-installed connectors that allow microinverters to plug directly into the AC branch circuit, enabling faster and simpler installation in solar arrays.

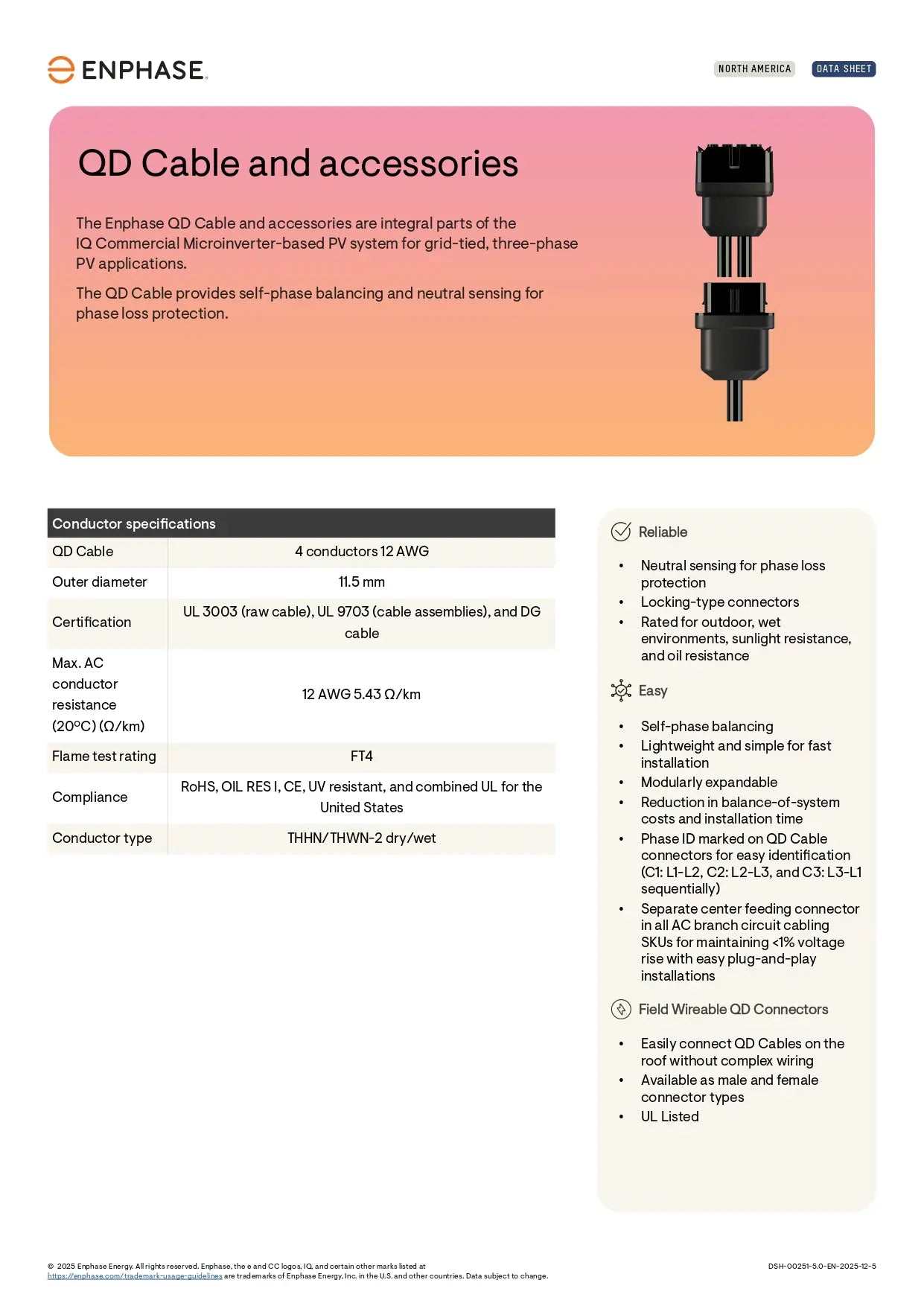

Technical Specifications:

• QD cable (Large Landscape) (4x12AWG) for 60-72 cell.
• Connector spacing is 2.9m (9.5ft). · 2.5m (8.2ft) max spacing between microinverters.

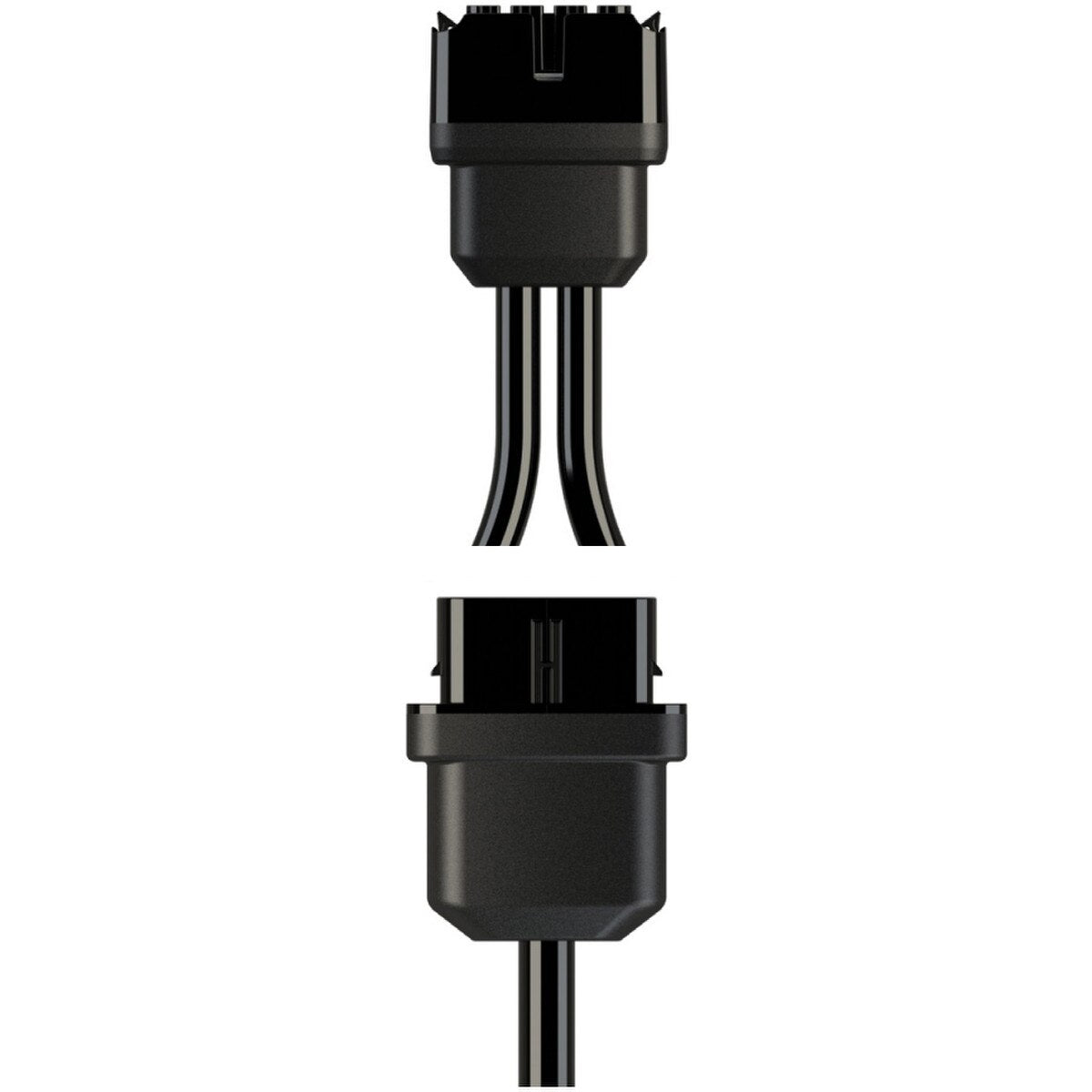

• 108 4-pin male connectors plug directly into the IQ8 Commercial Microinverters.
• 17 additional center taps spaced every 6 connectors. Centre tap connectors spaced at half-spacing to maintain connector spacing.
• Cable Type: QD connectorized AC trunk cable
• Conductor Size: 12 AWG
• Shipping Weight: 222 lb
• Shipping Dimensions: 38.5 x 22.75 x 21.25 in
• Case Qty: 6
• Number of Conductors: 4 conductors
• Voltage Rating: 600 V cable / up to 277 VAC connectors
• Connector Type: 4-pin male connectors
