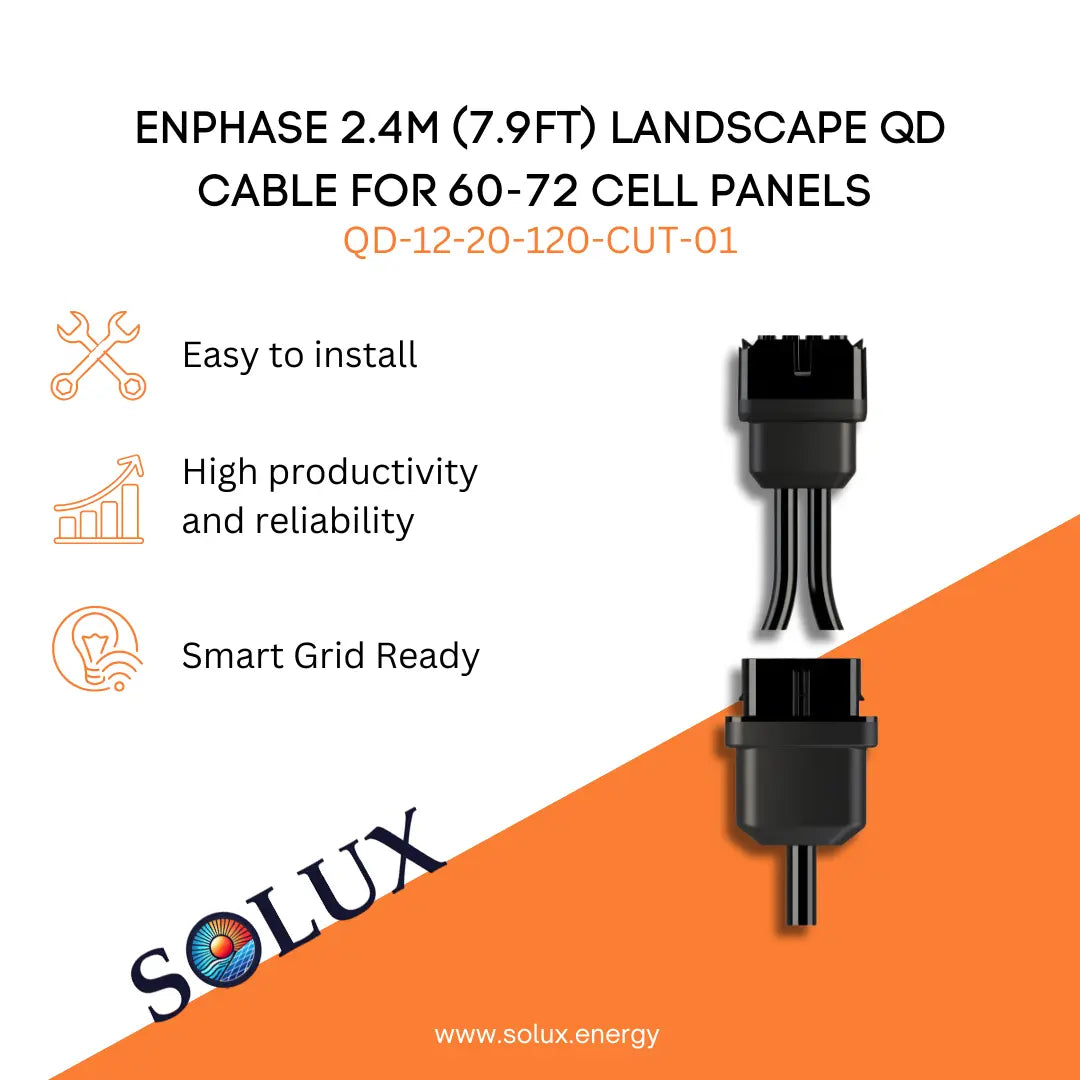

Enphase 2.4m (7.9ft) Landscape QD Cable for 60-72 Cell Panels
The Enphase QD-12-20-120-CUT-01 is a connectorized AC trunk cable designed for commercial solar photovoltaic (PV) systems that use Enphase IQ8 Commercial Microinverters. It is a pre-assembled 12-AWG cable with integrated connectors spaced along the cable to directly plug microinverters into an AC branch circuit. This design enables faster installation, automatic phase balancing, and reliable power distribution in three-phase grid-tied solar systems.
Technical Specification:
- Conductor Size: 12 AWG, 4 conductors
- Conductor Type: THHN/THWN-2 (dry/wet rated)
- Shipping Weight: 1.75
- Shipping Dimensions: 24 x 8 x 3 in
- Case Qty: 6
- Connector Type: 4-pin male microinverter connectors
- Voltage Rating: 600 V cable / 277 VAC connector
- Cable Outer Diameter: ~11.5 mm
-
Downloads

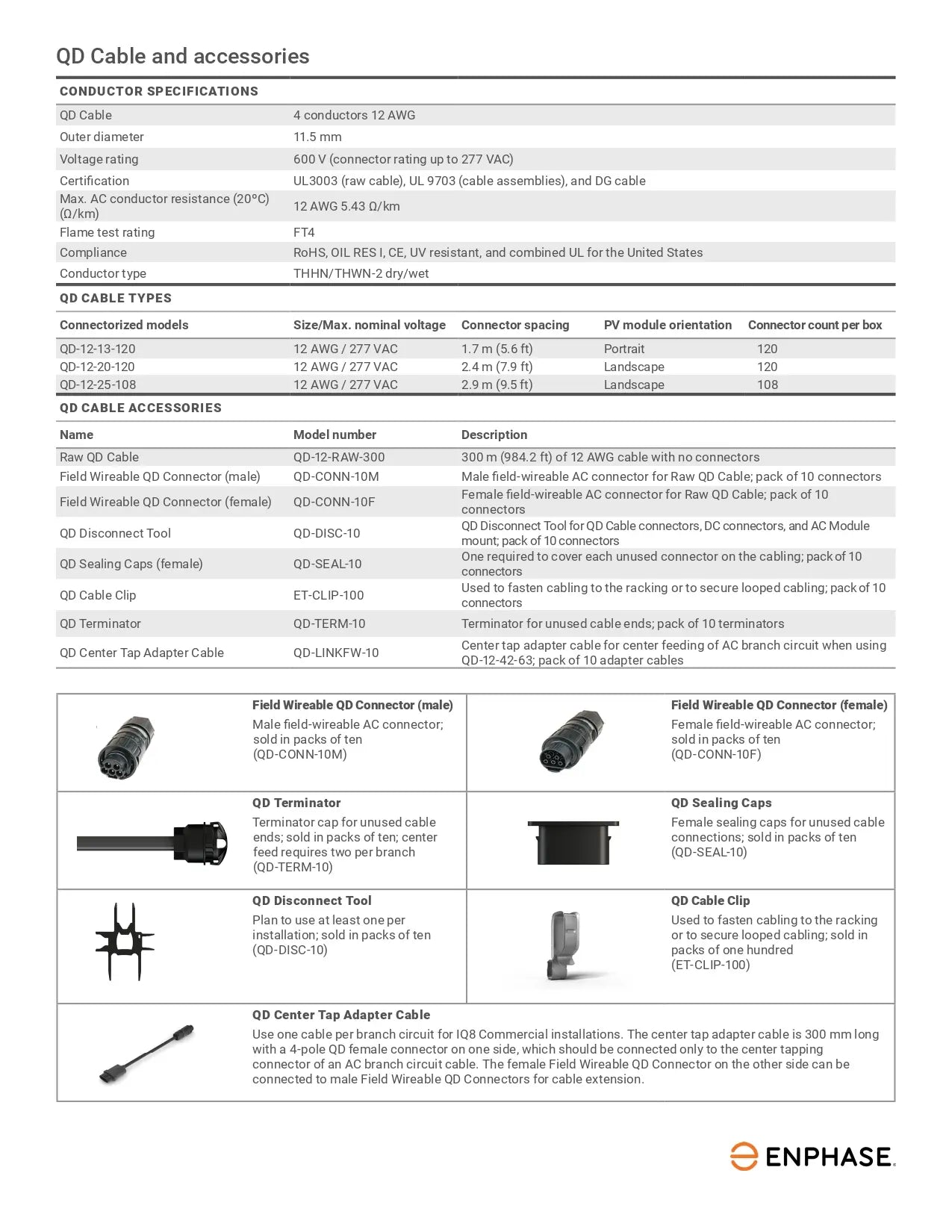

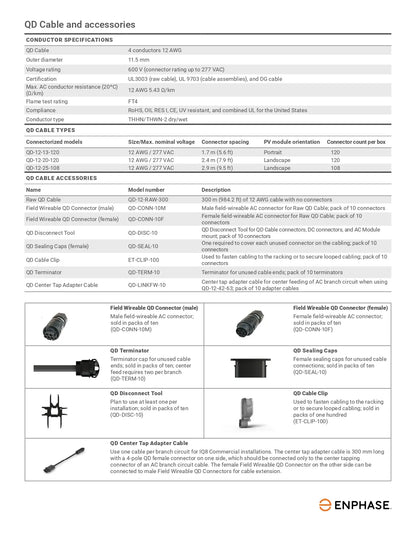

Datasheet
✔️ Datasheet
Quick Installation Guide
No Quick Installation guide available. Email support@solux.energy for file request.
Warranty
No Warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
