Description
Enphase QD-12-20-120-CUT-01 2.4m (7.9ft) Landscape QD Cable for 60-72 cell panels - 1 cable
The Enphase QD-12-20-120-CUT-01 is a connectorized AC trunk cable designed for commercial solar photovoltaic (PV) systems that use Enphase IQ8 Commercial Microinverters. It is a pre-assembled 12-AWG cable with integrated connectors spaced along the cable to directly plug microinverters into an AC branch circuit. This design enables faster installation, automatic phase balancing, and reliable power distribution in three-phase grid-tied solar systems.
Technical Specification:
- Conductor Size: 12 AWG, 4 conductors
- Conductor Type: THHN/THWN-2 (dry/wet rated)
- Shipping Weight: 1.75
- Shipping Dimensions: 24 x 8 x 3 in
- Case Qty: 6
- Connector Type: 4-pin male microinverter connectors
- Voltage Rating: 600 V cable / 277 VAC connector
- Cable Outer Diameter: ~11.5 mm
-
Resources

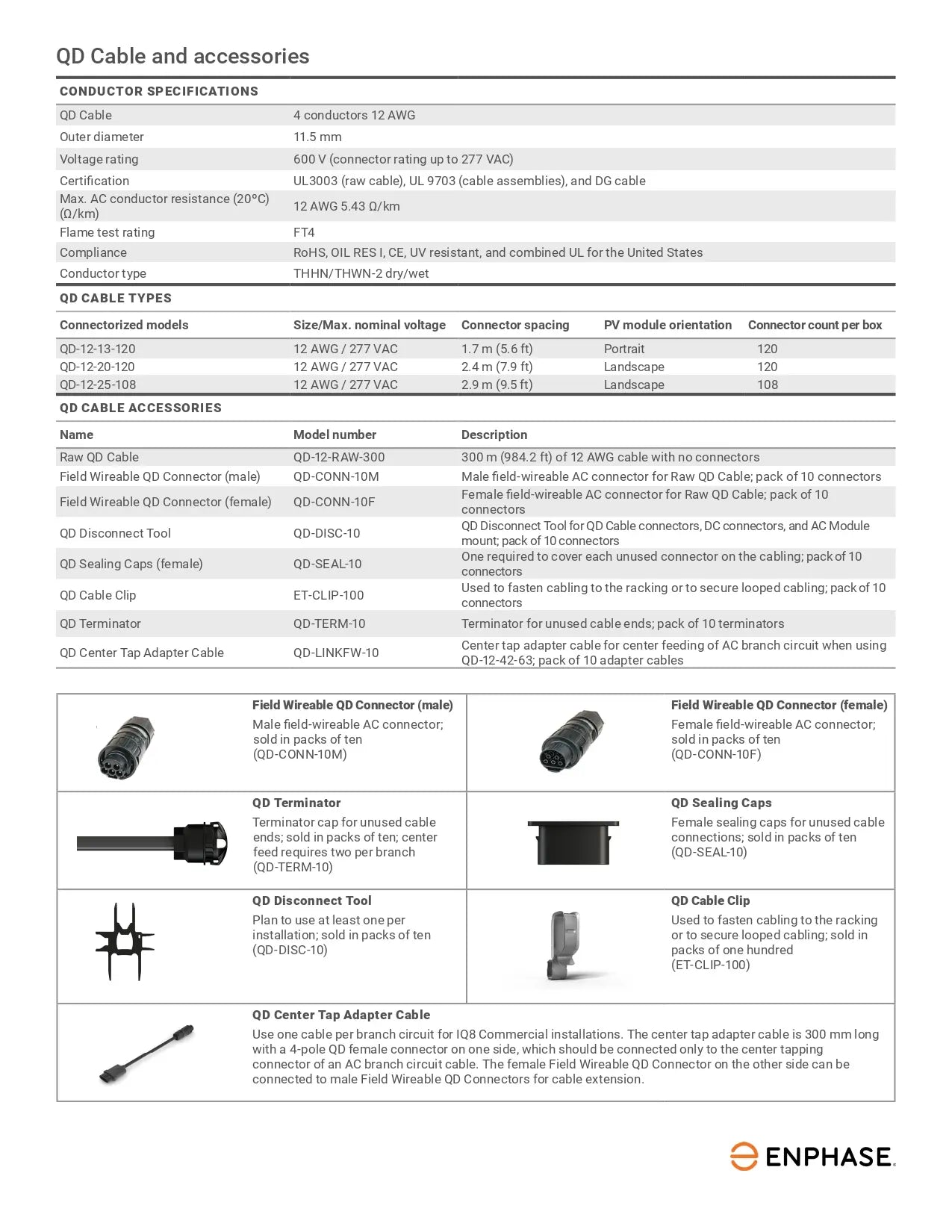

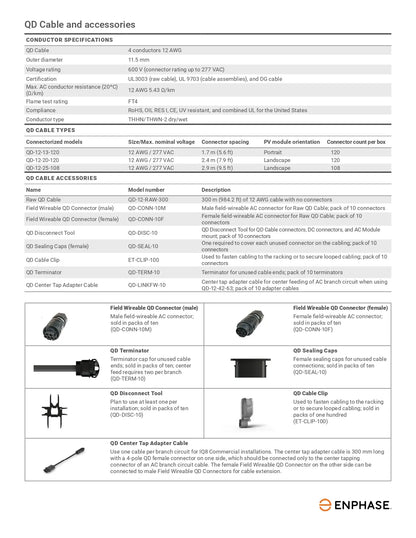

Datasheet
✔️ Datasheet
Quick Installation Guide
No Quick Installation guide available. Email support@solux.energy for file request.
Warranty
No Warranty file resource available. Email support@solux.energy for file request.
