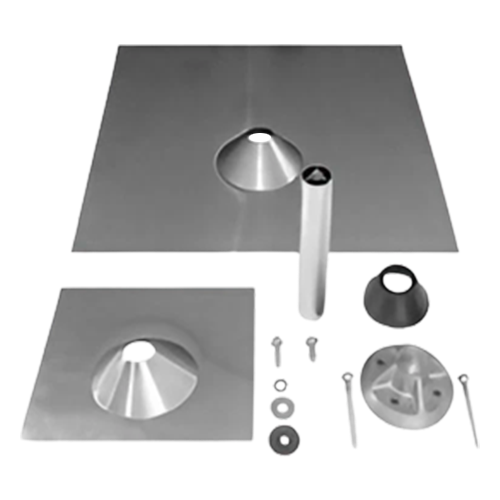

QBase Universal Tile Mount, 6.5" Post - 7" Net, 18" x 18", Mill

Quick Mount PV QMUTM-A-12 18x18-inch QBase Universal Tile Mount w/ Mill Finish (12 units)

The QBase Universal Tile Mount uses the QBase foundation and two spun aluminum cone flashings for installing solar panels on tile roofs with superior strength and waterproofing. The installer can conform the secondary top flashing to fit virtually any roof tile, flat or curved.

The primary flashing at the roof deck forms a waterproof shield isolating all penetrating fasteners from water intrusion. The top flashing is malleable, so it works equally well for curved and flat tile roofs. Both flashings feature a spun aluminum cone, with no seams to fail in extreme climates. The reinforced QBase makes an extraordinarily strong foundation. Ideal for both retrofit and new roof solar panel installations.

• Application: Designed for mounting solar racking systems on curved and flat tile roofs (W-tile, S-tile, and flat tile profiles) without cutting or drilling through tiles.
• Waterproofing: Uses a flexible, formable aluminum flashing base and sub-flashing post to create a waterproof seal at the roof deck level.
• Structural Support: Transfers load directly to the roof rafters through a sturdy base plate and threaded post assembly.
• Compatibility: Fully compatible with IronRidge XR Series racking rails (XR10, XR100, XR1000) and standard rail systems using L-Foot attachments.
• Material: Heavy-duty, weather-resistant aluminum plate and cast components with stainless steel hardware.
