QBase 12.5" Post (incl. post to rack h/w), Mill

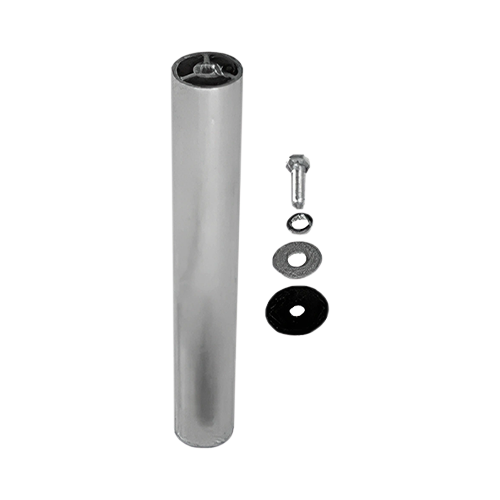

Quick Mount PV QM-QBP-12.5-M1 12.5-inch QBase Post Style Mount w/ Mill Finish

The QBase Mount is a strong and versatile base-and-post mounting system with various post height options. The components are available separately and combined to build a custom solution that best suits your project. (Formerly sold as QMLSH and QMQDM kits or BTO)

The QBase Mount base is made of super-strong cast aluminum, with four gussets to support 8 post heights from 3.25 to 17.5"-for a wide variety of roof types and installations. QBase Mount's versatility and superior strength will provide decades-long confidence.

• Application: Engineered for mounting solar racking arrays or tilt-leg systems on composition/asphalt shingle roofs, providing high vertical elevation to clear thick insulation or roof build-ups.
• Extended Post Height: Features an extra-tall 12.5-inch QBase post for specialized roof profiles requiring significant standoff height.
• Waterproofing: Uses Quick Mount PV's double-seal water protection technology, combining an aluminum flashing plate with an EPDM sealing washer to direct water away from roof penetrations.
• Structural Base: Features a robust cast-aluminum baseplate that fastens directly to roof rafters using lag screws.
• Compatibility: Integrates seamlessly with IronRidge XR Series rails (XR10, XR100, XR1000), tilt frame assemblies, and standard L-Foot hardware.
• Material: Constructed from durable 6000-series structural aluminum and stainless steel fasteners.
