Description

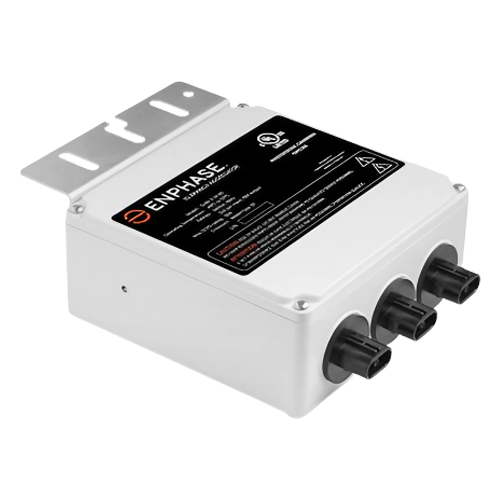

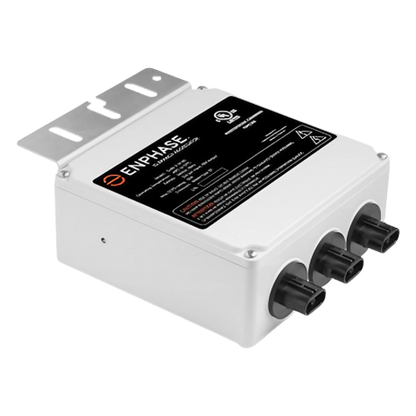

Enphase Q-BA-3-1P-60 Single Phase Branch Aggregator

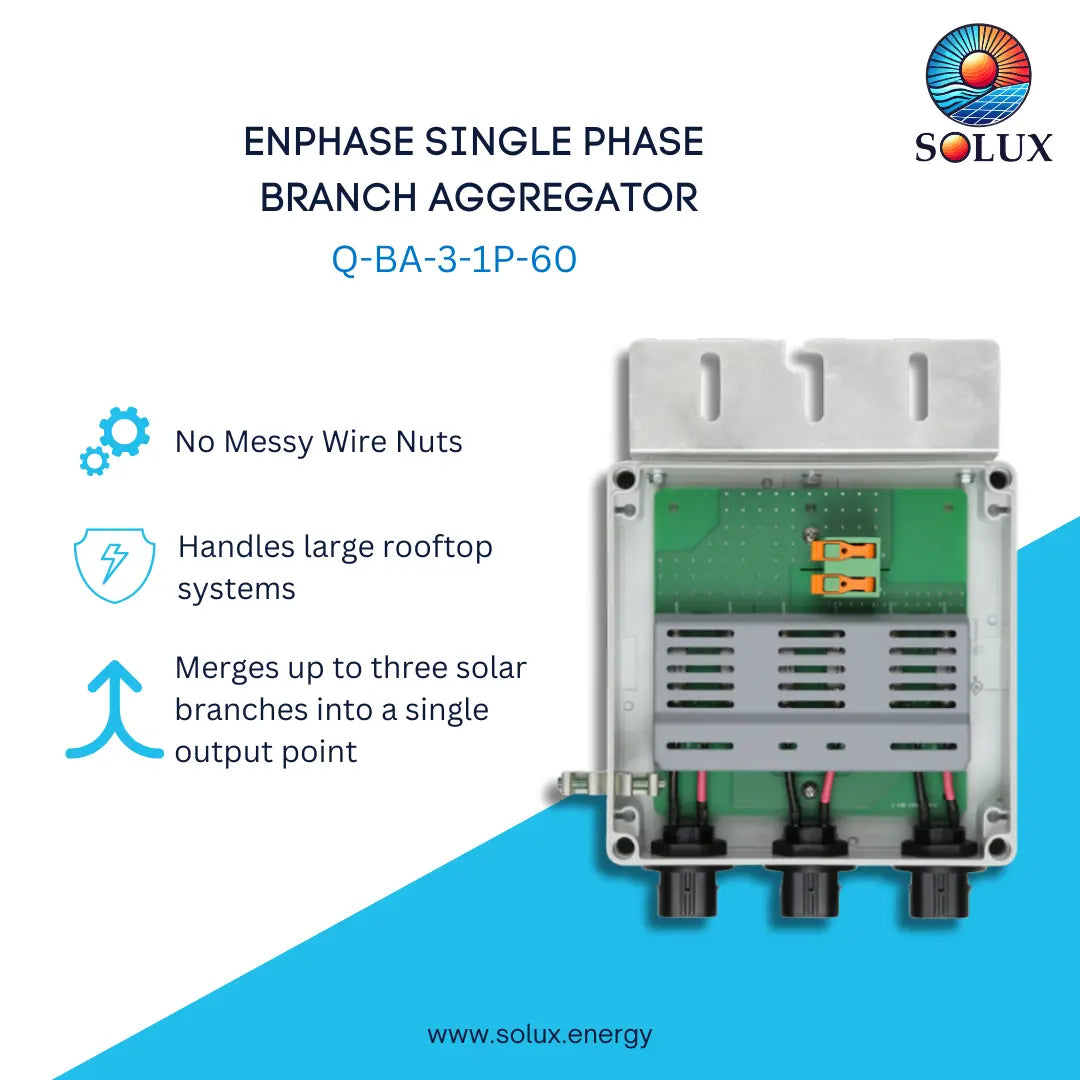

Single phase branch terminator with 1-3 female inputs and one Q-BA-CAP. Using the Enphase Q Aggregator makes it simple to bring together up to three fully-populated 20A branches of microinverters, center feed branch connections to minimize voltage rise in a fully-populated branch or connect a remote part of the array using Enphase Q Field Wireable Connectors.
Technical Specifications:
- Model number: Q-BA-3-1P-60
- Dimensions: 190 mm (W) x 227 mm (D) x 80 mm (H) (7.5 in (W) x 9 in (D) x 3.2 in (H)
- Enclosure Rating: NEMA3 (up to 45° from horizontal)
- Temperature Range: -40° C to +55° C (-40° F to +122° F)
- Voltage R ating: 600V (connector rating 250 V)
- Cable Temperature Rating: 90° C (194° F)
-
Resources
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
