Yaskawa Solectria PVI-36-50-60TL-WB-AP25 Inverter Wiring Box

Yaskawa Solectria PVI-36/50/60TL Wiring Box with APsmart RSD

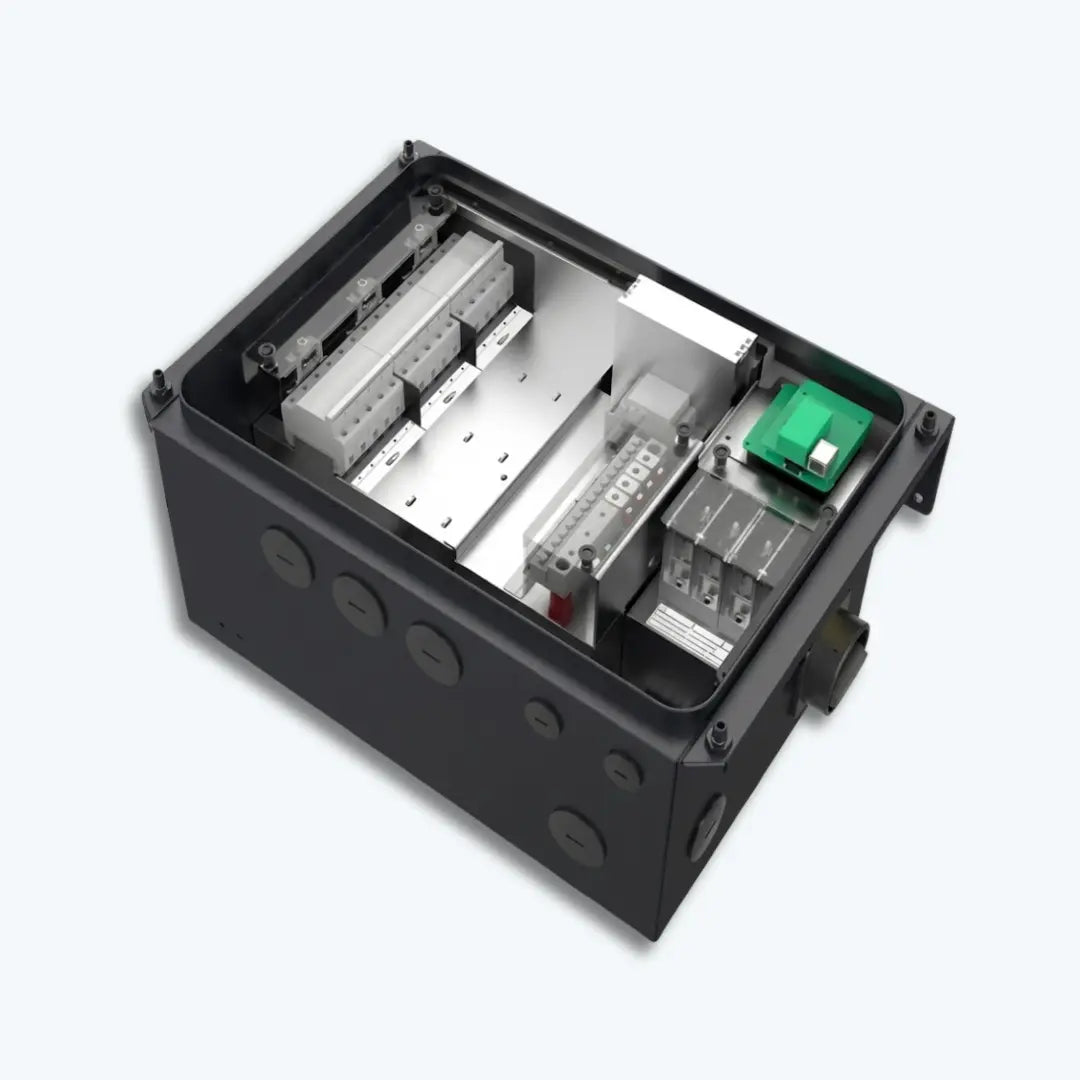

The Yaskawa Solectria PVI-36-50-60TL-WB-AP25 is a dedicated commercial inverter wiring and connection box. It connects directly to compatible Solectria PVI-36TL, PVI-50TL, and PVI-60TL commercial string inverters to streamline array connections.

Equipped with a built-in APsmart rapid shutdown transmitter, this unit ensures your commercial solar array meets code-compliant safety standards without needing external third-party transmitters. It serves as a central junction point with 3 independent MPPT zones and 15 fused input slots to keep DC wiring organized and protected. It links smoothly alongside commercial Solar Panels, ground or roof Racking systems, and grid-tied commercial Inverters.

 Please note: This product is a wiring box only and is not a standalone inverter.

Specifications:

• Manufacturer Part Number: PVI-36-50-60TL-WB-AP25
• Product Type: Inverter Wiring Box / Module-Level Rapid Shutdown Wiring Box

Mechanical:

• Compatible Inverters: Solectria PVI-36TL-480-V2, PVI-50TL-480, and PVI-60TL-480
• Fused Inputs: 15 fused positions
• MPPT Configuration: 5 fused inputs per MPPT zone
• Number of MPPT Zones: 3
• Fuse Rating: 25 A included
• Acceptable Fuse Range: 15–30 A
• Fuse Polarity: Positive polarity only
• Rapid Shutdown: Built-in APsmart transmitter
• Rapid Shutdown Compatibility: APsmart RSD-S and RSD-D receivers
