Yakasawa Solectria PVI-36-50-60-WB-AP Wiring Box

Yaskawa Solectria Wiring Box with APsmart Transmitter for PVI 36TL / 50TL / 60TL (PVI-36-50-60-WB-AP).

Must Order Inverter Top Box

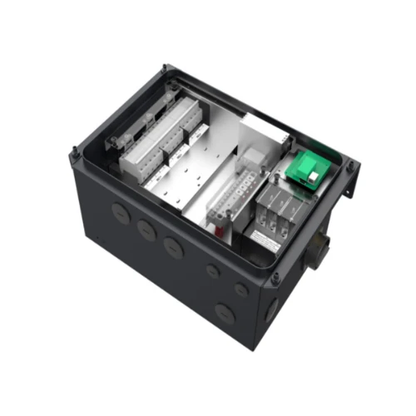

The Yaskawa Solectria Wiring Box with APsmart Transmitter (MPN: PVI-36-50-60-WB-AP) is a DC disconnect and string-fusing wiring enclosure designed for Yaskawa Solectria PVI 36TL, PVI 50TL, and PVI 60TL transformerless inverters. Serving as the lower DC subpanel, it is not a standalone inverter and must be paired with an inverter top box to create a complete system.

This wiring box houses 15 positive-polarity fused DC string inputs arranged as 5 inputs per MPPT zone with pre-installed 20A fuses. It features an integrated APsmart Power Line Communication (PLC) transmitter and bleed-down circuit, delivering module-level rapid shutdown compliance when paired with APsmart RSD-APS, RSD-APS-Q, and RSDAPSD20 receivers while maintaining a NEMA Type 4X rating when fully installed.

Specifications:

• Manufacturer Part Number: PVI-36-50-60-WB-AP
• Product type: Wiring Box
• Shipping Weight: 5 lb

Mechanical:

• Fused Inputs: 15
• Fuse Configuration: 5 per MPPT zone
• Included Fuse: 20 A
• Polarity: Positive polarity fused
• Rapid Shutdown: APsmart transmitter built in
• Enclosure: NEMA Type 4X when used as part of the specified inverter system
• Dimensions: Approx. 10 x 8 x 4 inches
