Solectria PVI-25TL-208 25.0kW 3-Ph Inverter

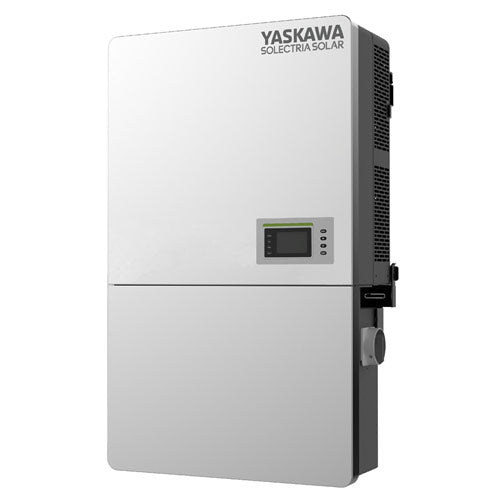

Yaskawa Solectria Solar’s PVI 25TL is a compact grid-tied, transformerless three-phase string inverter ideal for rooftop, ground mount and carport PV arrays. The PVI 25TL inverter comes standard with AC and DC disconnects, three MPPTs, a six-position fused wiring box with fusing only for the positive conductors (NEC 2017), remote diagnostics, remote firmware upgrades and various protection features. Included is a SunSpec-compliant powerline transmitter to allow customers to meet module-level rapid shutdown requirements easily.

•  PVI-25TL-208

• 3-Ph Grid Tied inverter,
• 25kW,
• 208VAC WYE,
• 60Hz,
• 1000VDC,
• 3 MPPT,
• 2 inputs per MPPT,
• AC/DC Disconnect,
• Arc-Fault Detection,
• NEMA 4X,
• UL1741-SA,
• Rule-21,
• 10 Yr Warr,
• [MUST ADD WIRING BOX]
