IronRidge PV Grounding Lug (PV-LUG-01-A1)

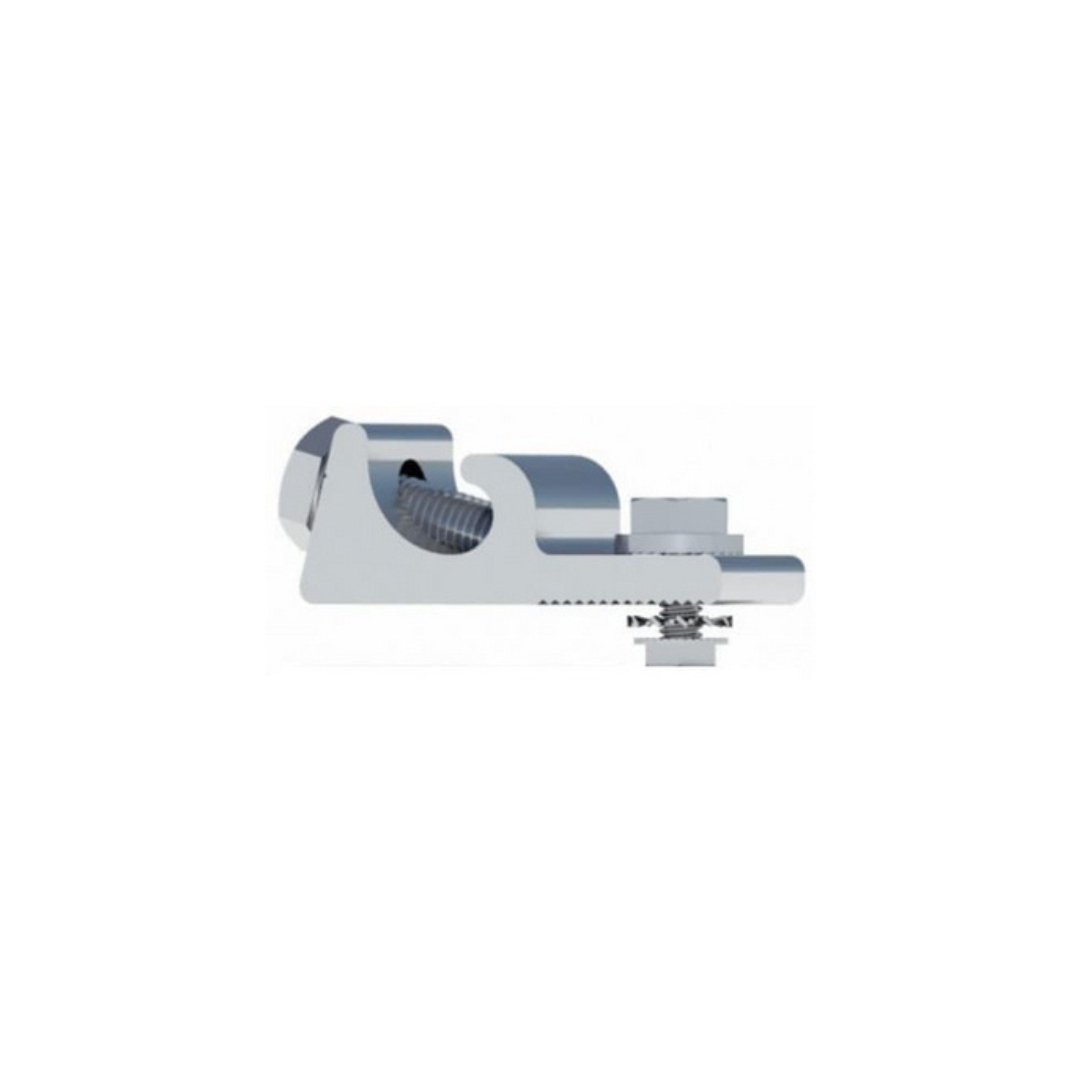

IronRidge PV Grounding Lug

At the core of the BX system is the Chassis, a ballasted mount made of BASF Ultramid. Ultramid polyamides (nylon) are exceptional for their high mechanical strength, rigidity and thermal stability. Moreover, Ultramid polyamides afford good impact resistance even at low temperatures, advantageous sliding friction properties and problem-free processing. Chassis come in 5° and 10° options.

• Model/Type: PV-LUG-01-A1
• Finish: Mill

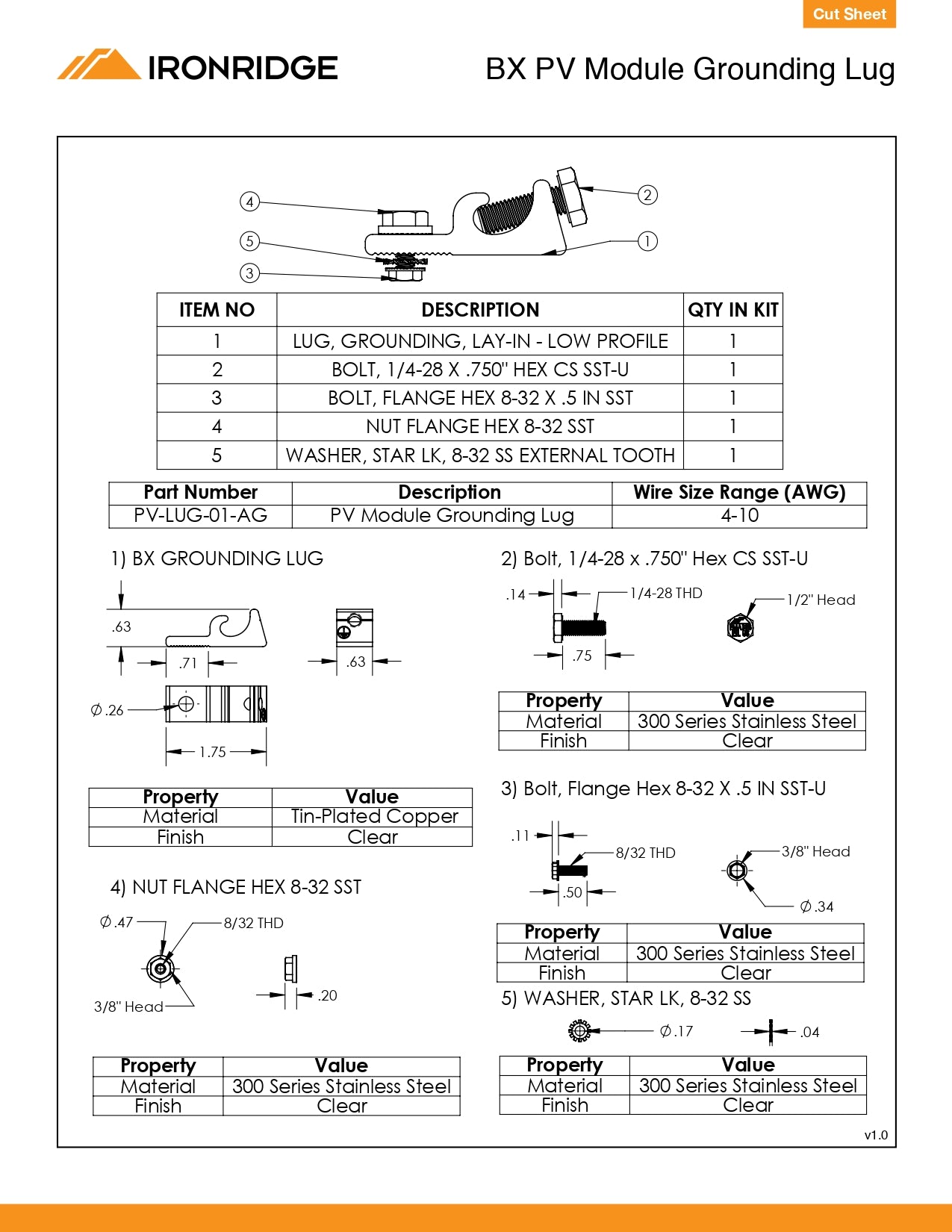

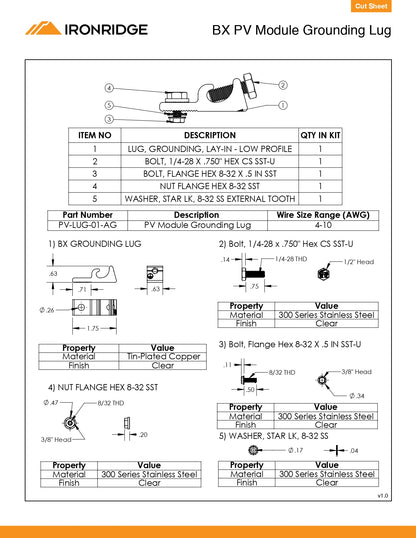

• Included Hardware: 1 × Grounding Lug + 1 × Hex bolt + 1 × Flange hex bolt + 1 × Flange hex nut + 1 × Star washer
• Durable & Certified: Designed for solar PV installations, this grounding lug is built to maintain a strong, durable connection between the module frames and the grounding conductor over many years. Its simple, solid construction ensures it can reliably handle mechanical stresses and vibration typical in roof or ground-mount systems.
• Water Protection & Fit: The grounding lug and its hardware are made from stainless steel (300-series) and tin-plated copper, giving it excellent corrosion resistance in outdoor environments. This helps it withstand rain, humidity, and general weather exposure without rusting or degrading quickly.
