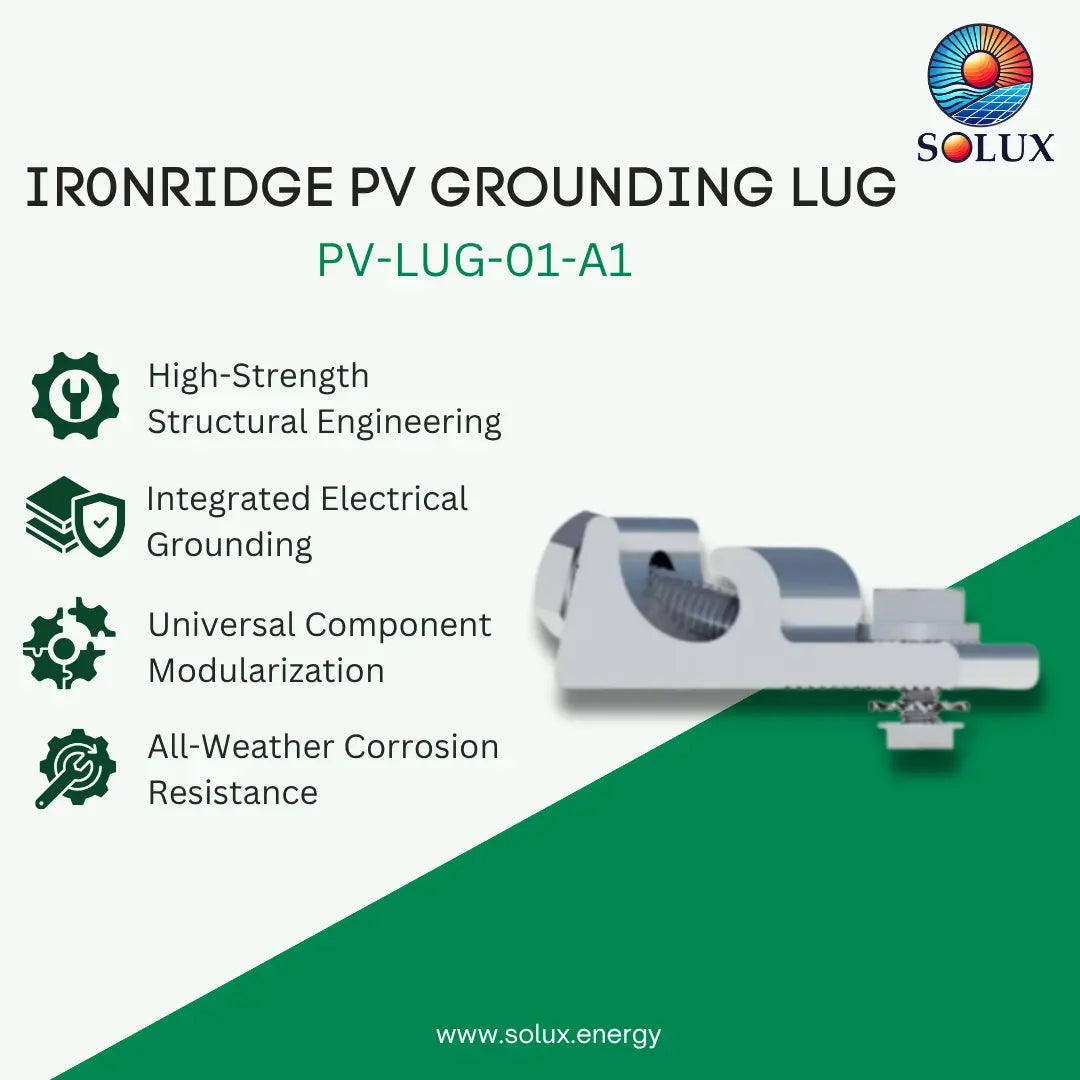

IronRidge PV-LUG-01-A1 PV Grounding Lug

IronRidge PV Grounding Lug Kit (PV-LUG-01-A1)

The IronRidge PV Grounding Lug (PV-LUG-01-A1) is a specialized electrical grounding component designed to create a continuous ground path across solar PV arrays. Engineered to connect equipment grounding conductors (EGC) directly to racking rails, module frames, or system chassis, this lug ensures full compliance with electrical safety codes for both rooftop and ground-mounted solar installations.

Manufactured from high-conductivity tin-plated copper and 300-series stainless steel hardware, the PV-LUG-01-A1 delivers superior corrosion resistance against rain, high humidity, and coastal weather exposure. Its low-profile, vibration-resistant construction maintains a tight, durable bond that withstands mechanical stresses and thermal movement over decades in service.

• Model/Type: PV-LUG-01-A1
• Finish: Mill
• Included Hardware: 1 × Grounding Lug + 1 × Hex bolt + 1 × Flange hex bolt + 1 × Flange hex nut + 1 × Star washer
• Durable & Certified: Designed for solar PV installations, this grounding lug is built to maintain a strong, durable connection between the module frames and the grounding conductor over many years. Its simple, solid construction ensures it can reliably handle mechanical stresses and vibration typical in roof or ground-mount systems.
• Water Protection & Fit: The grounding lug and its hardware are made from stainless steel (300-series) and tin-plated copper, giving it excellent corrosion resistance in outdoor environments. This helps it withstand rain, humidity, and general weather exposure without rusting or degrading quickly.
