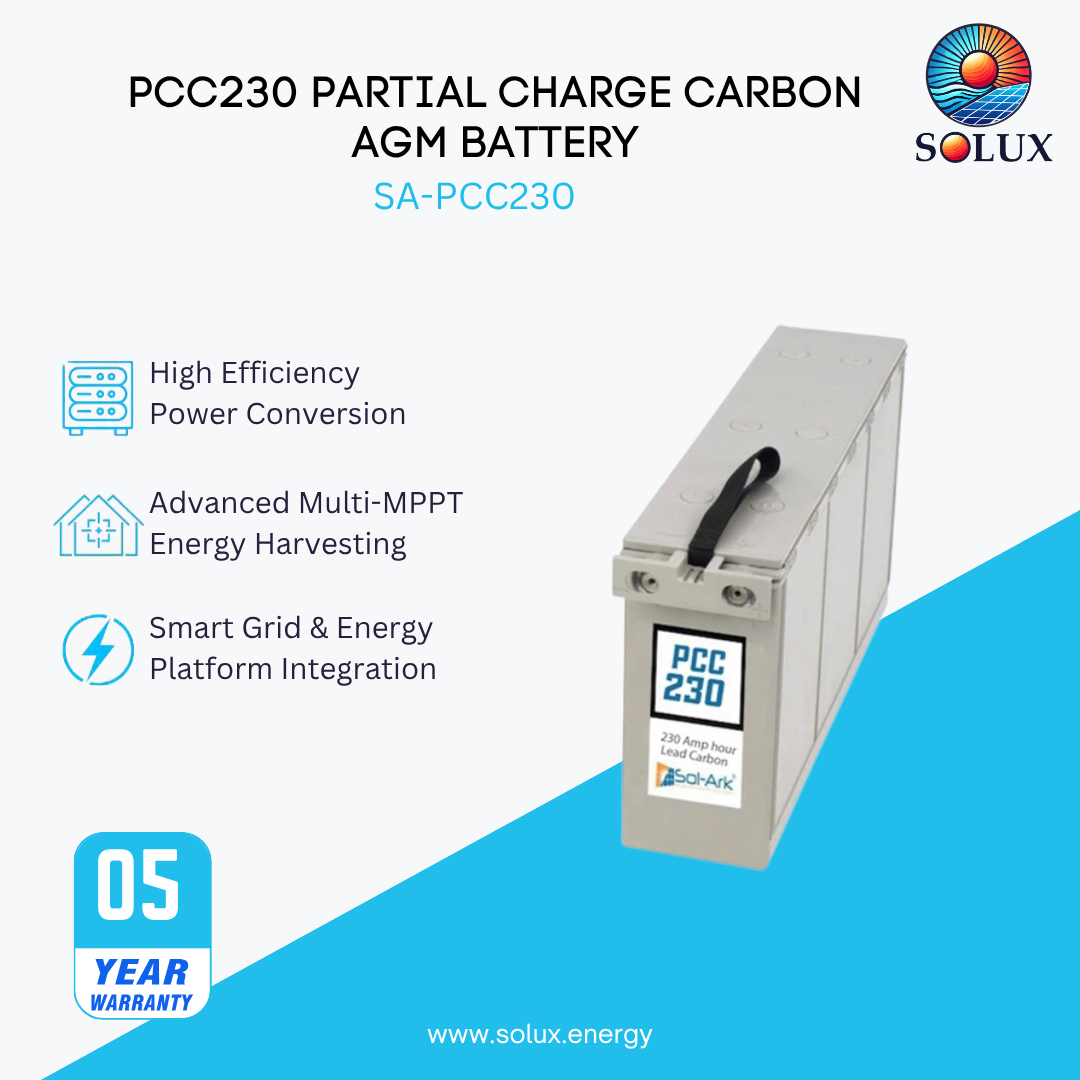

 The Sol-Ark SA-PCC230 is a 12V, 230Ah partial-charge-carbon AGM battery designed for solar energy storage. It stores electricity generated by solar panels for later use, including backup power, off-grid systems, and self-consumption applications. Its design supports frequent partial-state-of-charge operation.

Technical Specifications:

• Brand: Sol-Ark
• Model:  SA-PCC230
• Nominal voltage: 12V DC
• Capacity: 230Ah at the 24-hour rate
• Energy capacity: Approximately 2.8kWh
• Maximum continuous charge/discharge current: 140A (100A recommended)
• Peak output current: 230A
• Float voltage: 13.3V
• Absorption voltage: 14.2V
• Internal resistance: Approximately 3mΩ
• Dimensions (H × D × W): 12.7 × 22 × 6.1 inches
• Weight: Approximately 160lb (72.6kg)
• Certification: UL 1989
