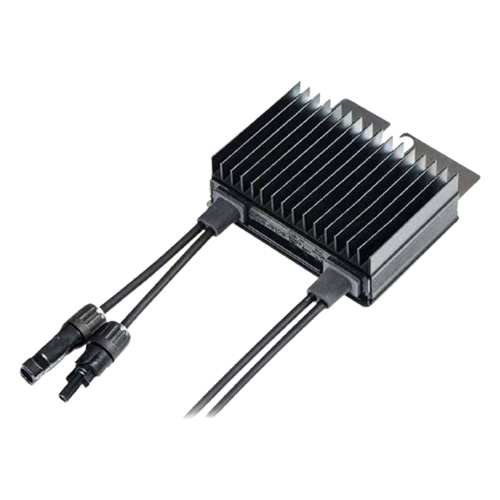

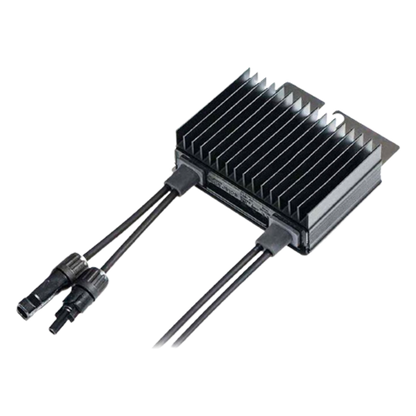

SolarEdge P600-2NM4ARL 600Watt 96VDC Power Optimizer with MC4 Connectors

SolarEdge P600-2NM4ARL 600W 96VDC Power Optimizer with MC4 Connectors

The SolarEdge P600 Power Optimizer is a high-efficiency DC-to-DC commercial optimizer engineered exclusively for pairing with SolarEdge three-phase inverters. Designed for commercial rooftop and ground-mount arrays, this dual-module unit features factory-installed MC4 connectors and supports up to 600W of total DC input power across two 60-cell PV modules connected in series.

Operating at a peak efficiency of 99.5%, the P600 provides module-level Maximum Power Point Tracking (MPPT) to maximize total energy output while offering detailed module-level telemetry. Equipped with automated SafeDC voltage reduction, the optimizer ensures compliance with NEC rapid shutdown and arc fault protection requirements to safeguard installation personnel and emergency responders.

Key Features

Simple, fast installation and fully compatible with thousands of different inverter models. Upgrade your home with a reliable solar optimizer for efficient, dependable solar power:

PV power optimization at the module-level. The most cost effective solution for commercial and large field installations.

• Manufacturer & Part Number: SolarEdge / P600-2NM4ARL
• Rated DC Input Power: 600 Watts
• Connector Type: Factory-Installed MC4 Connectors
• Superior Efficiency 99.5%
• Fast installation with a single bolt
• Specifically designed to work with SolarEdge inverters
• Advanced maintenance with module-level monitoring
• Module level voltage shutdown for installer and fire fighter safety
• Compliant with arcfault protection and rapid shutdown NEC requirements (when installed as part of the SolarEdge system)
