Description

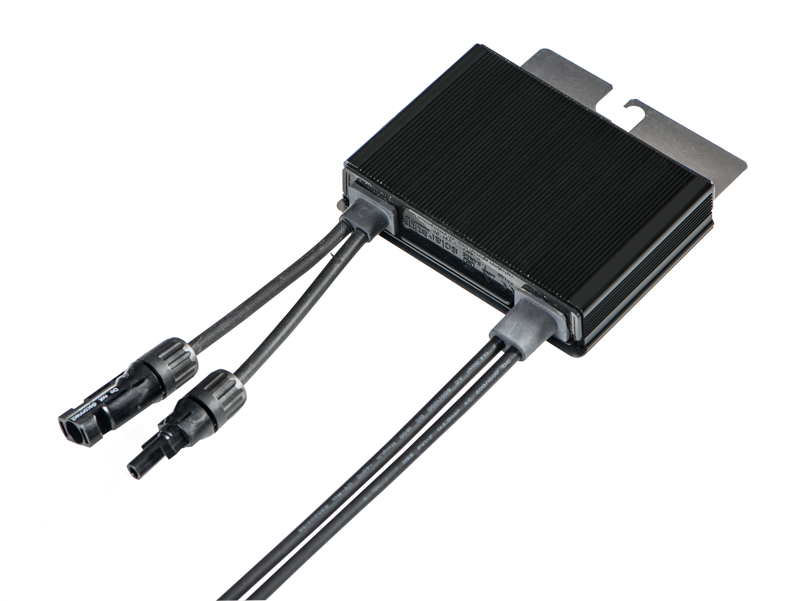

SolarEdge 505W Optimizer - 5 Series - SE-P505-4NM4MBM
Efficiency - Up to 25% more energy. Superior efficiency (99.5%). Mitigates all types of module mismatch losses, from manufacturing tolerance to partial shading. Flexible system design for maximum space utilization. Fast installation with a single bolt. Next generation maintenance with module-level monitoring. Module-level voltage shutdown for installer and firefighter safety.

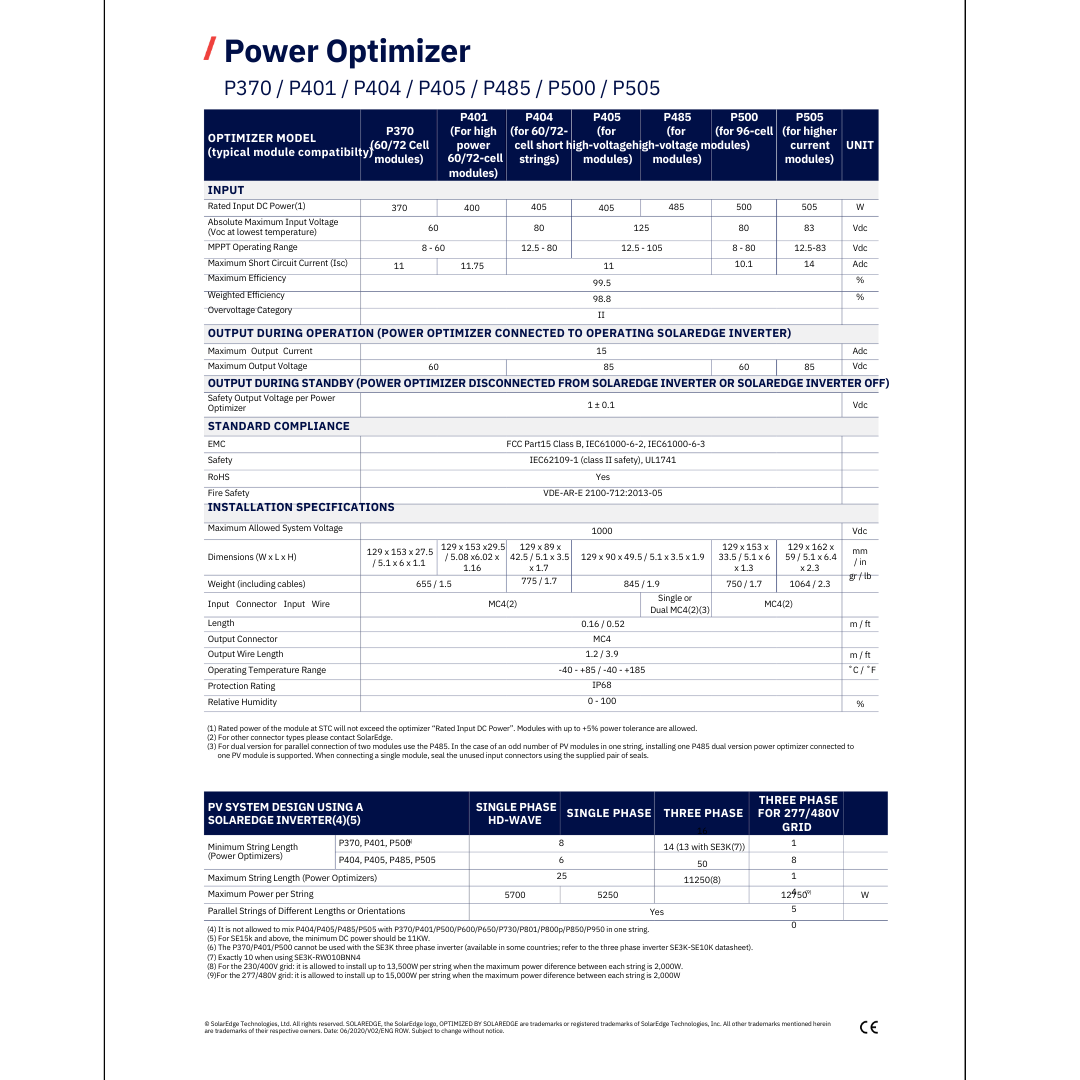

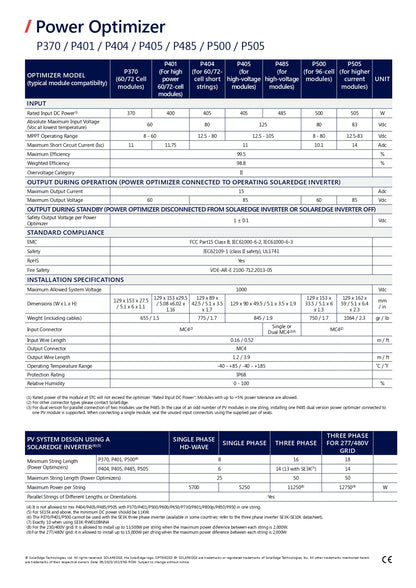

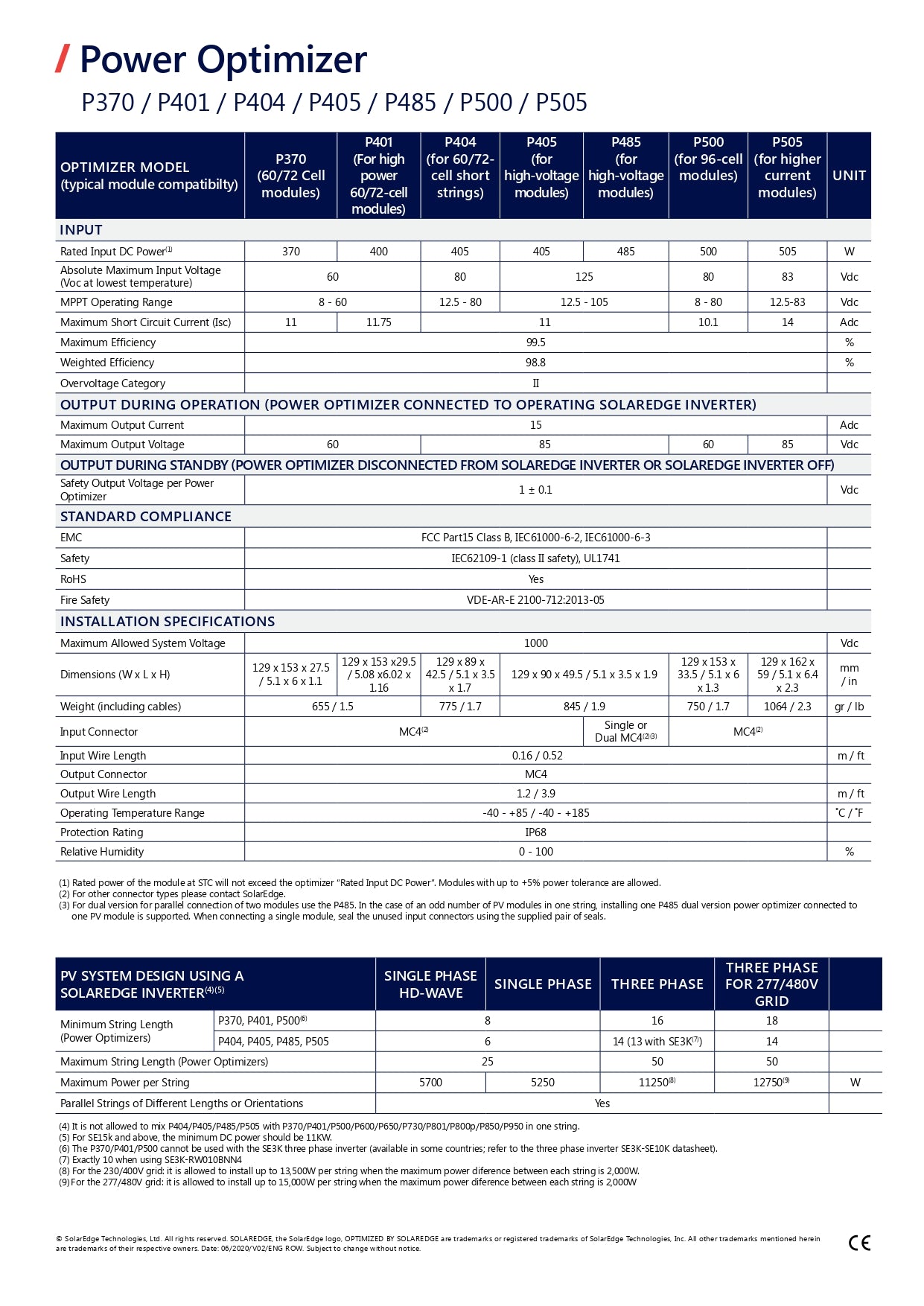

Technical Specifications
- Product Line: 5 Series
- Technology: Optimizer
- Dimensions: 5.4 x 6.4 x 2.3 Inches
- Weight: 2.3 lbs
- Maximum Allowed System Voltage: 1000 VDC
- Compatible Inverters: All SolarEdge Single Phase and Three Phase Inverters
- Input Connector: MC4 Compatible
- Output Wire Type/Connector: Double Insulated; MC4 Compatible
- Output Wire Length: 3.90 Feet
- Operating Temperature Range: -40 to +85°C
- Protection Rating: IP68/NEMA6P
- Relative Humidity: 0-100%
- EMC Compliance: FCC Part15 Class B, IEC61000-6-2, IEC61000-6-3
- Safety: IEC62109-1 (Class II Safety), UL1741
- RoHS Compliance: Yes
- Rated Input DC Power: 505 Watts
- Absolute Maximum Input Voltage: 83 VDC
- MPPT Operating Range: 12.5 - 83 Volts
- Maximum Short Circuit Current (Isc): 14 ADC
- Maximum DC Input Current: 17.5 ADC
- Maximum Efficiency: 99.5%
- Weighted Efficiency: 98.6%
-
