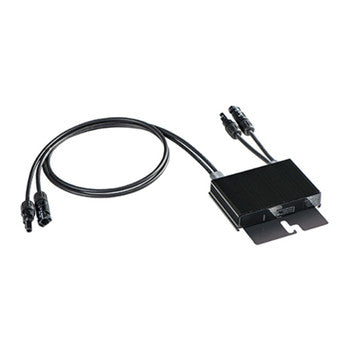

SolarEdge 485W Optimizer - 5 Series - P485-4NM4MRM
Efficiency - Up to 25% more energy. Superior efficiency (99.5%). Mitigates all types of module mismatch losses, from manufacturing tolerance to partial shading. Flexible system design for maximum space utilization. Fast installation with a single bolt. Next generation maintenance with module-level monitoring. Module-level voltage shutdown for installer and firefighter safety.

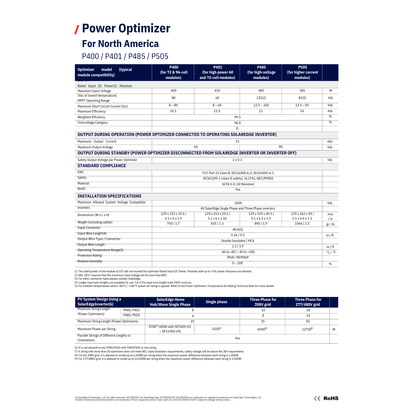

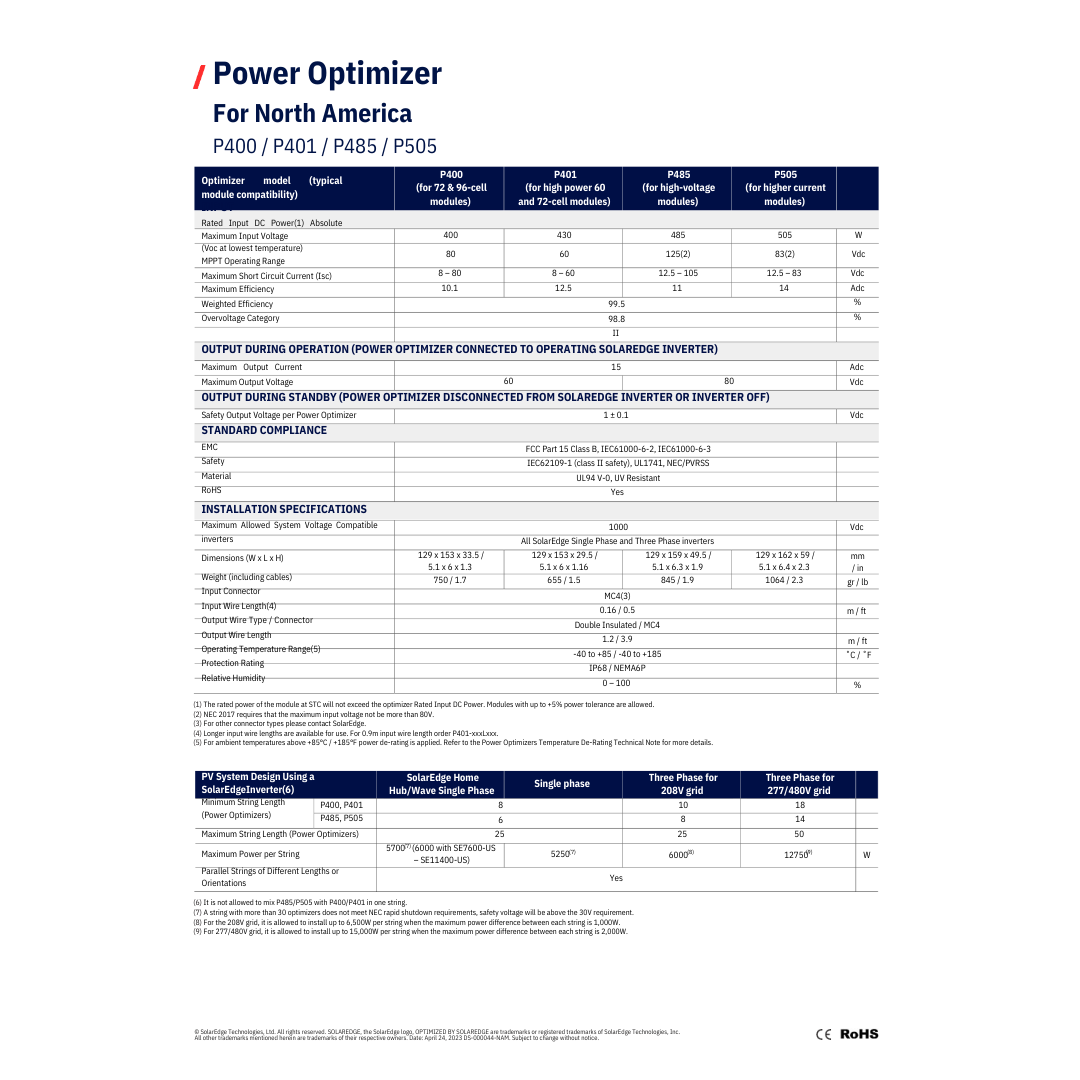

Technical Specifications
- Product Line: 5 Series
- Technology: Optimizer
- Dimensions: 5.1 x 6 x 1.1 Inches
- Weight: 1.5 lbs
- Compatible Inverters: All SolarEdge Single Phase and Three Phase Inverters
- Input Connector: MC4
- Minimum/Maximum String Length: Single Phase and HD-Wave: 8/25, Three Phase: 16/50, Three Phase 277/480V: 18/50
- Rated Input DC Power: 485 Watts
- Absolute Maximum Input Voltage: 125 VDC
- MPPT Operating Range: 12.5-105 Volts
- Maximum Short Circuit Current (Isc): 11 ADC
- Maximum Efficiency: 99.5%
- Weighted Efficiency: 98.8%
- Maximum Output Current: 15 ADC
- Maximum Output Voltage: 85 VDC
-
