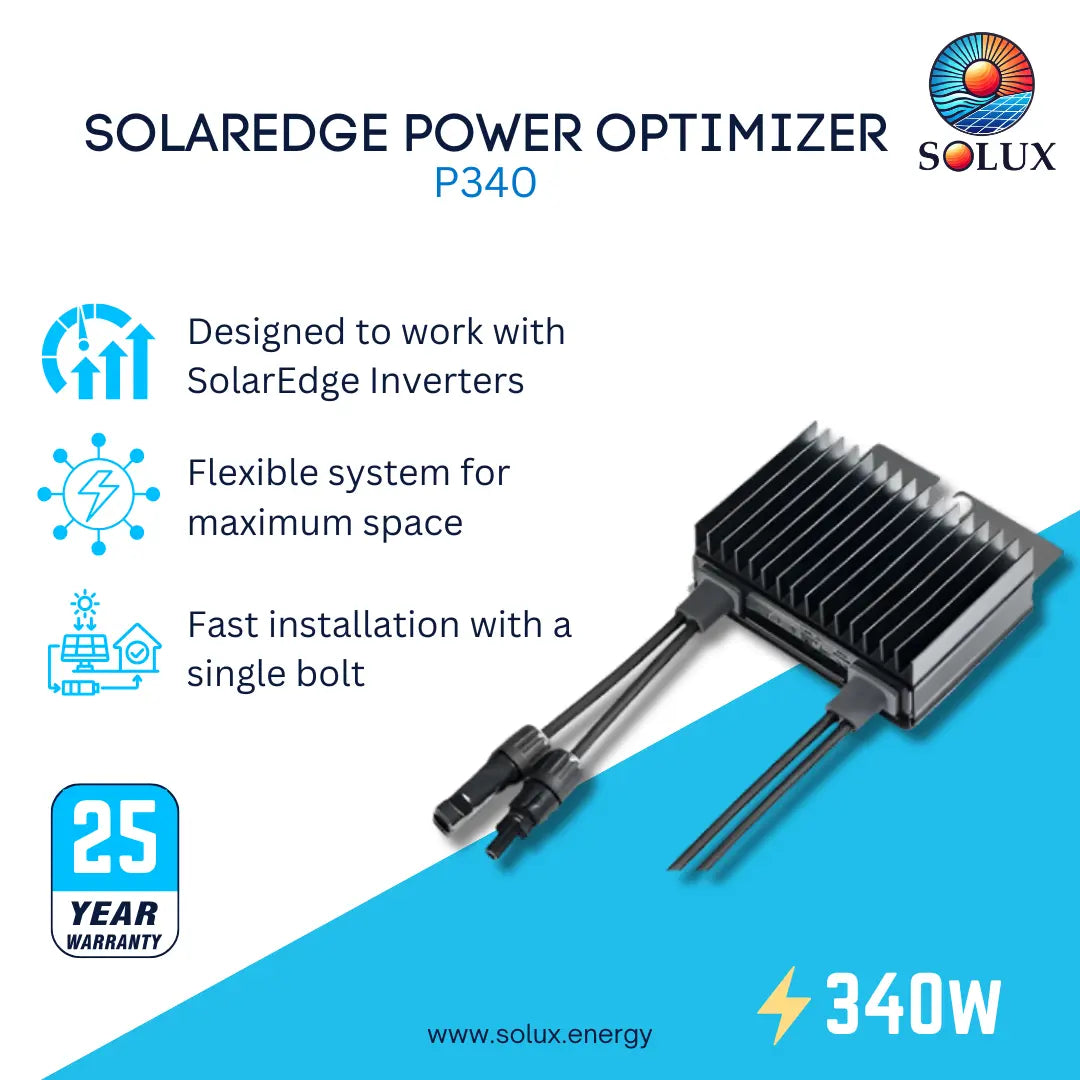

  • Solaredge Power Optimizer P340 by Solux, a 340W solar inverter optimizer, shown on a white and blue graphic background with product features and a 2-year warranty badge.
  • P400 power optimizer solaredge​
  • A product image of solaredge p340 power optimizer
1 3

SolarEdge P340 Power Optimizer - Clearance

$63.89 USD
$63.89 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Voltage: 60 VDC
✔️ Features: Module-level Maximum Power Point Tracking (MPPT)
✔️ Warranty: 25 years

It performs Maximum Power Point Tracking (MPPT) at the individual module level, increasing energy harvest, improving system design flexibility, and enabling module-level monitoring and enhanced safety features.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    SolarEdge P340 Power Optimizer (MOQ: 20 Units) - Clearance

    The SolarEdge P340 Power Optimizer is a DC/DC converter designed to be connected to each solar module, transforming them into smart modules. This device enhances energy output from photovoltaic systems by constantly tracking the Maximum Power Point (MPPT) of each module individually, mitigating all types of mismatch losses, from manufacturing tolerance to partial shading. It is designed for use with modules up to 370W and works exclusively with SolarEdge inverters.

    Technical Specifications:

    • Rated DC Input Power: 340 Watts
    • Absolute Maximum Input Voltage: 48 VDC
    • MPPT Operating Range: 8 - 48 VDC
    • Maximum Efficiency: 99.5% (Peak) / 98.8% (Weighted)
    • Dimensions: 5.1" x 6" x 1.1"
    • Weight: 1.7 lbs (including cables)
    • Protection Rating: IP68 / NEMA6P
    • Required Quantity: This product has a Minimum Order Quantity (MOQ) of 20 units, which is also the standard case quantity.
    • Manufacturer Warranty: 25-Year Limited Product Warranty

  • Resources

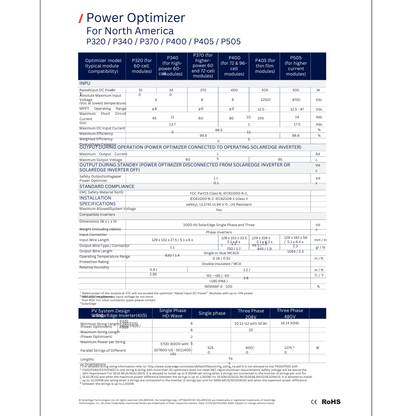

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No quick installation guide available. Email support@solux.energy for file request.


Download Spec Sheet

This device enhances energy output from photovoltaic systems by constantly tracking the Maximum Power Point (MPPT) of each module individually, mitigating all types of mismatch losses, from manufacturing tolerance to partial shading.
