Odyssey Battery ODS-AUX14 14Ah Extreme Series Specialty Battery
Manufactured with a Thin Plate Pure Lead (TPPL) design, ODYSSEY ODS-AUX14 battery can deliver twice the overall power and three times the life of conventional batteries. It offers deep cycle reserve power and durability to help you run your automotive auxiliary applications – even when your engine isn’t running.
Technical Specifications:
- Length: 5.90 in
- Width: 3.40 in
- Height (terminals included): 5.70 in
- Height (container): 5.70 in
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 565A
- Cold Cranking Amps (CCA): 220A
- HCA: 320A
- MCA: 300A
- 20Hr Nominal Capacity (Ah): 14Ah
- 10Hr Nominal Capacity (Ah): 13Ah
- Reserve Capacity Minutes: 18 mins
- Terminal: M6 Receptacle
- Torque Spec in-lbs (Nm max): 50 (5.6)
- Recommended Min. Charging Current (A):1.3A
- Operating Temperature Range: -40°F / -40°C to 113°F / +45°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241142617
-
Downloads

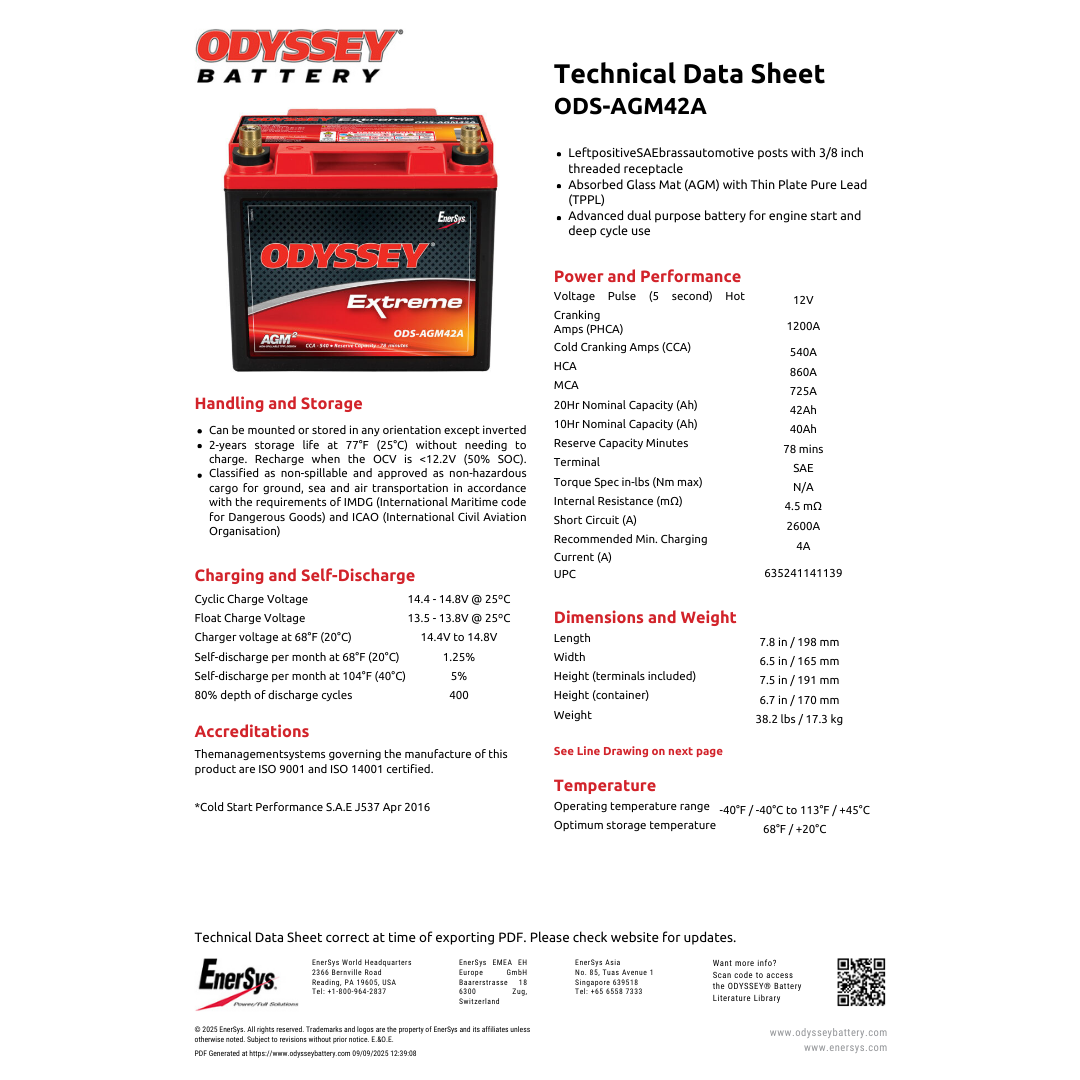

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
