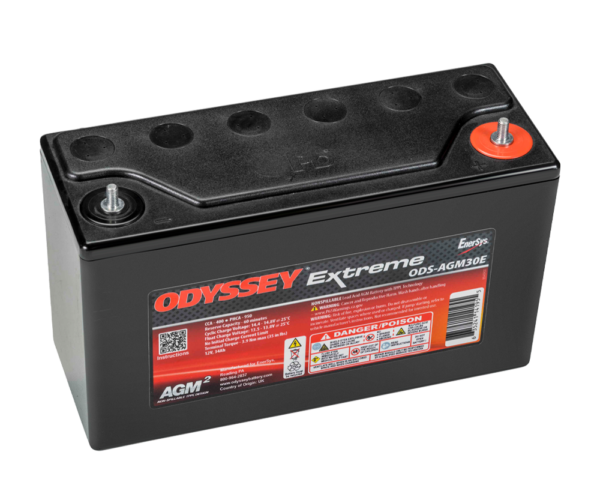

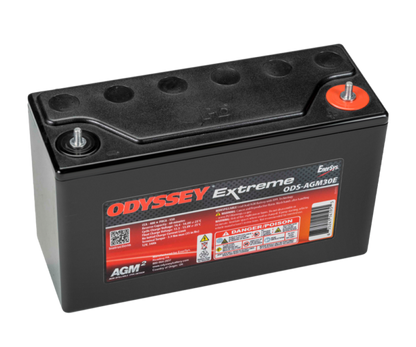

Odyssey Battery ODS-AGM30E 34Ah Extreme Series AGM Battery
The ODYSSEY battery can handle it. Featuring rugged construction and packed tightly with pure lead plates, the non-spillable AGM design ODYSSEY battery protects against the shock and vibration that can quickly destroy other batteries. And the pure lead plates mean more power-twice the overall power and three times the life of conventional batteries-up to 400 cycles at 80% depth of discharge!
Technical Specifications:
- Length: 9.80 in
- Width: 3.80 in
- Height (terminals included): 6.10 in
- Height (container): 5.80 in
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 950A
- Cold Cranking Amps (CCA): 400A
- HCA: 600A
- MCA: 500A
- 20Hr Nominal Capacity (Ah): 34Ah
- 10Hr Nominal Capacity (Ah): 32Ah
- Reserve Capacity Minutes: 60 mins
- Torque Spec in-lbs (Nm max): 35 (3.9)
- Terminal: M6 Stud
- Internal Resistance (mΩ): 7.1 mΩ
- Short Circuit (A): 1700A
- Recommended Min. Charging Current (A): 3.2A
- Operating Temperature Range: -40°F / -40°C to 113°F / +45°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241141955
-
Downloads

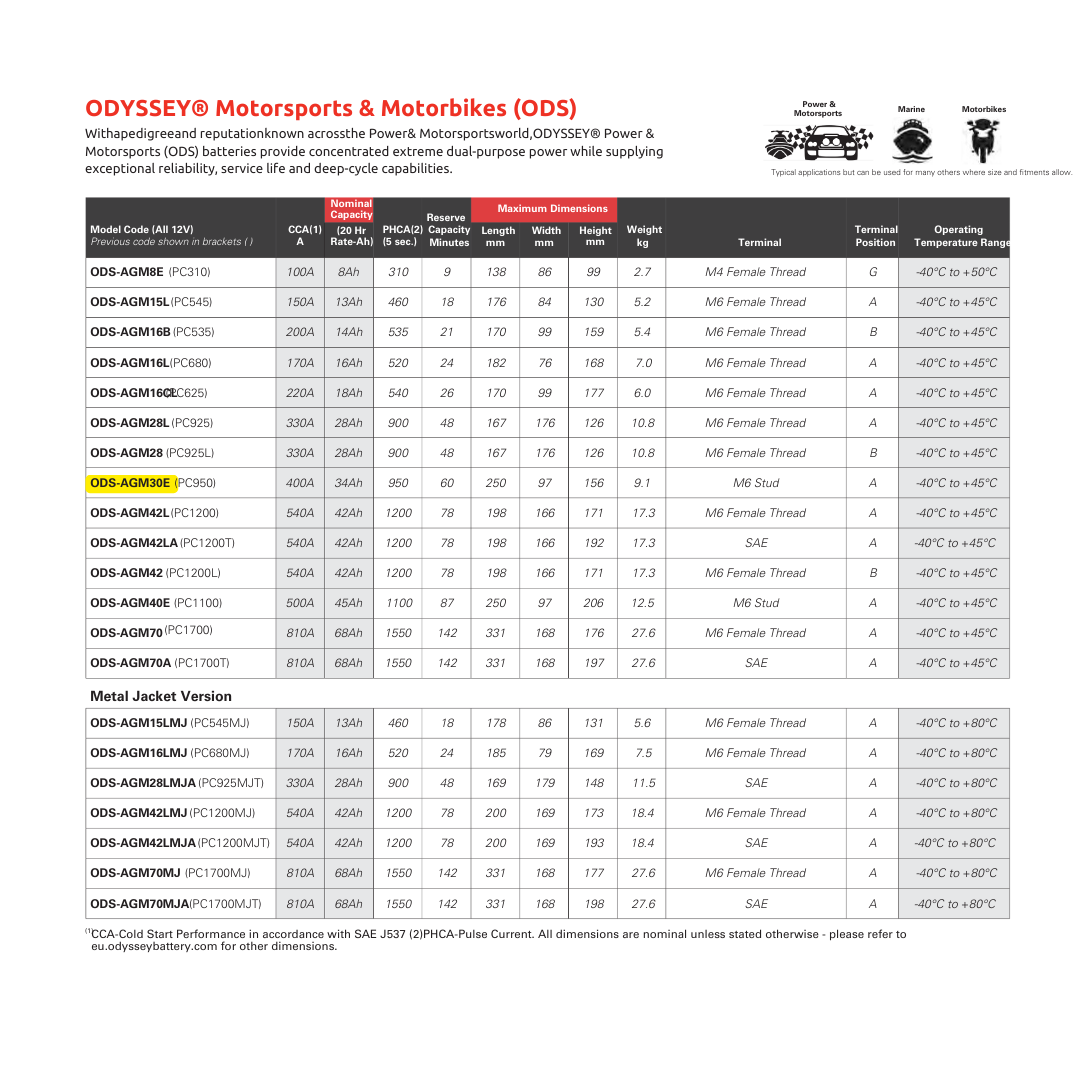

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
