Description

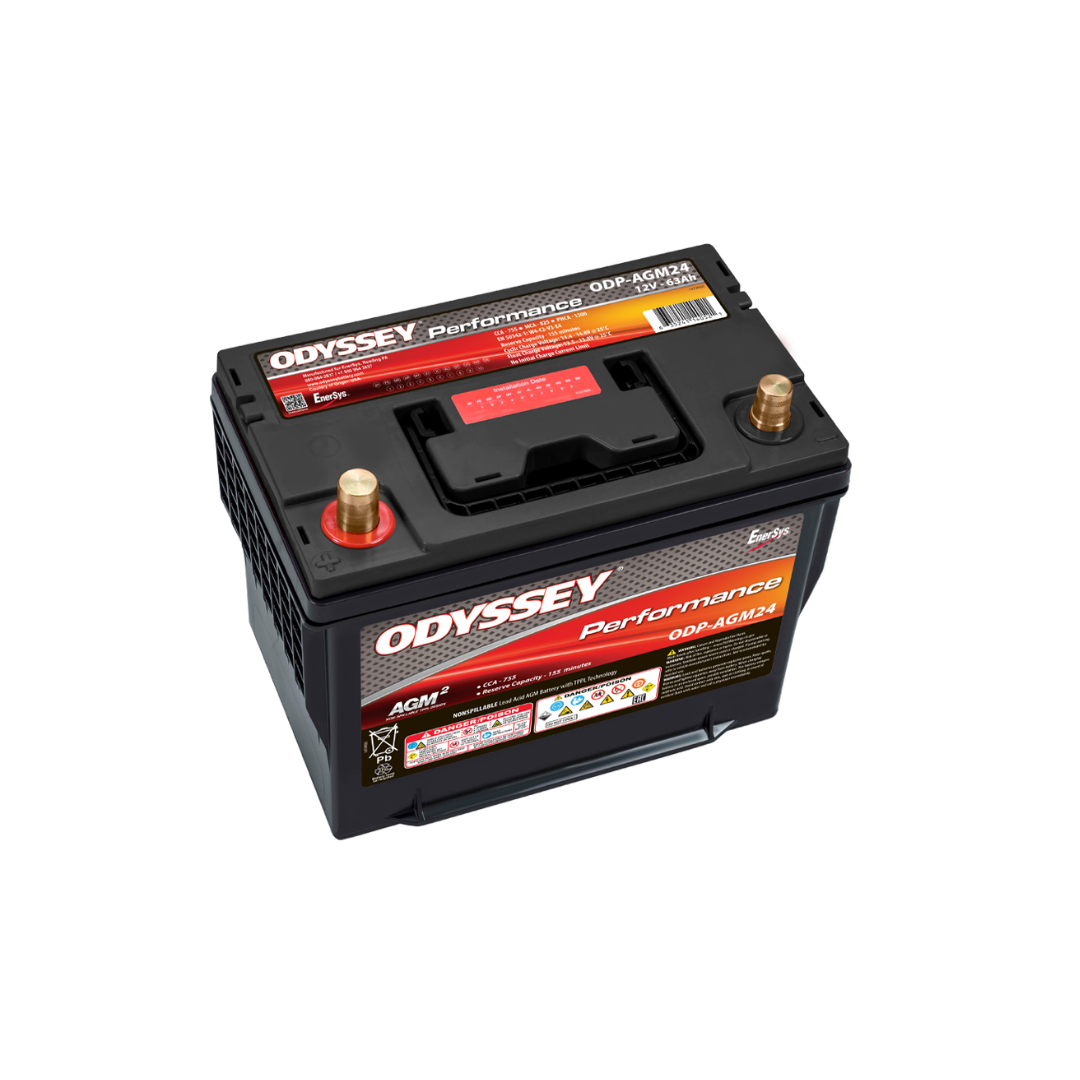

ODYSSEY Performance Battery
Technical Specifications:
- Length: 10.90 in
- Width: 6.80 in
- Height (terminals included): 8.80 in
- Height (container): 8.20 in
- Weight: 51.40 lbs
- Voltage: 12
- Pulse (5 second) Hot Cranking Amps (PHCA): 1300
- Cold Cranking Amps (CCA): 755
- HCA: 950
- MCA: 825
- 20Hr Nominal Capacity (Ah): 63
- 10Hr Nominal Capacity (Ah): 58
- Reserve Capacity Minutes: 155
- Terminal: SAE
- Torque Spec in-lbs (Nm max): N/A
- Internal Resistance (mΩ): 4.2
- Short Circuit (A): 2150
- Recommended Min. Charging Current (A): 5.8
- Operating Temperature Range: -40°F / -40°C to 140°F / +60°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241140521
-
Downloads

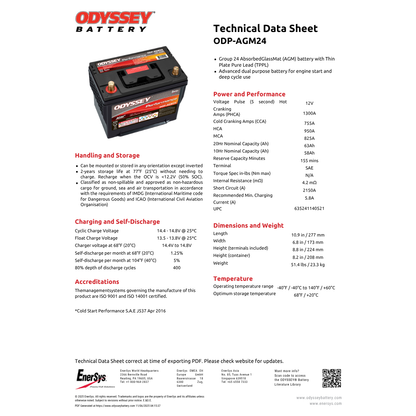

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
