Description

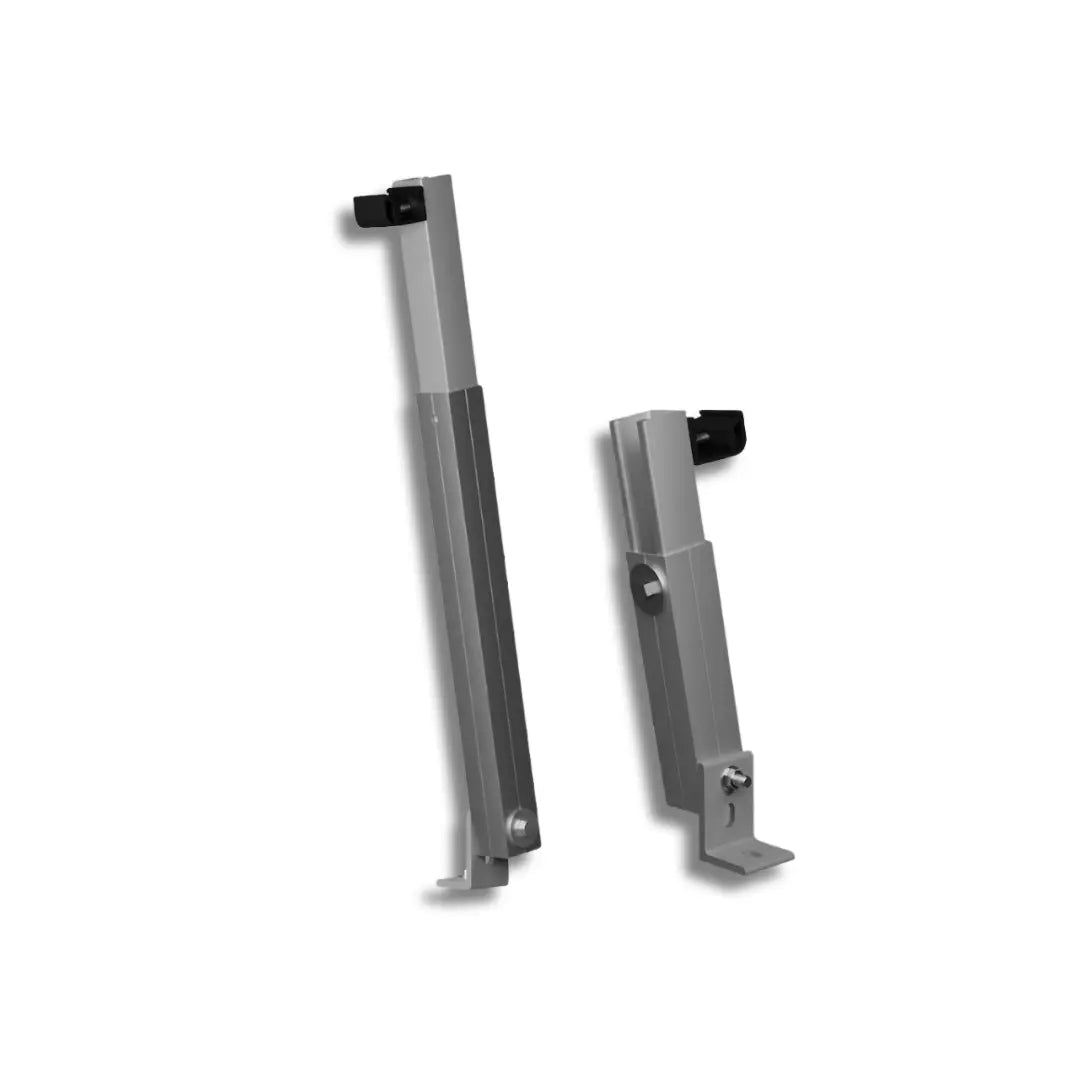

Unirac NXT Adjustable Tilt Leg Kit with Butyl Base
The Unirac NXT Adjustable Tilt Leg Kit with Butyl Base is a specialized solar mounting attachment engineered to elevate solar panels to an optimal tilt angle on flat or low-slope rooftops. Designed for direct compatibility with Unirac NXT UMOUNT and SOLARMOUNT rail systems, this kit features an integrated peel-and-stick butyl mastic pad base that compresses upon installation to create a watertight seal without requiring traditional metal flashing.
Constructed from lightweight, corrosion-resistant mill-finish extruded aluminum and secured with high-strength stainless steel hardware, the sliding leg design allows installation crews to adjust tilt angles easily on-site.
Available Measurement:

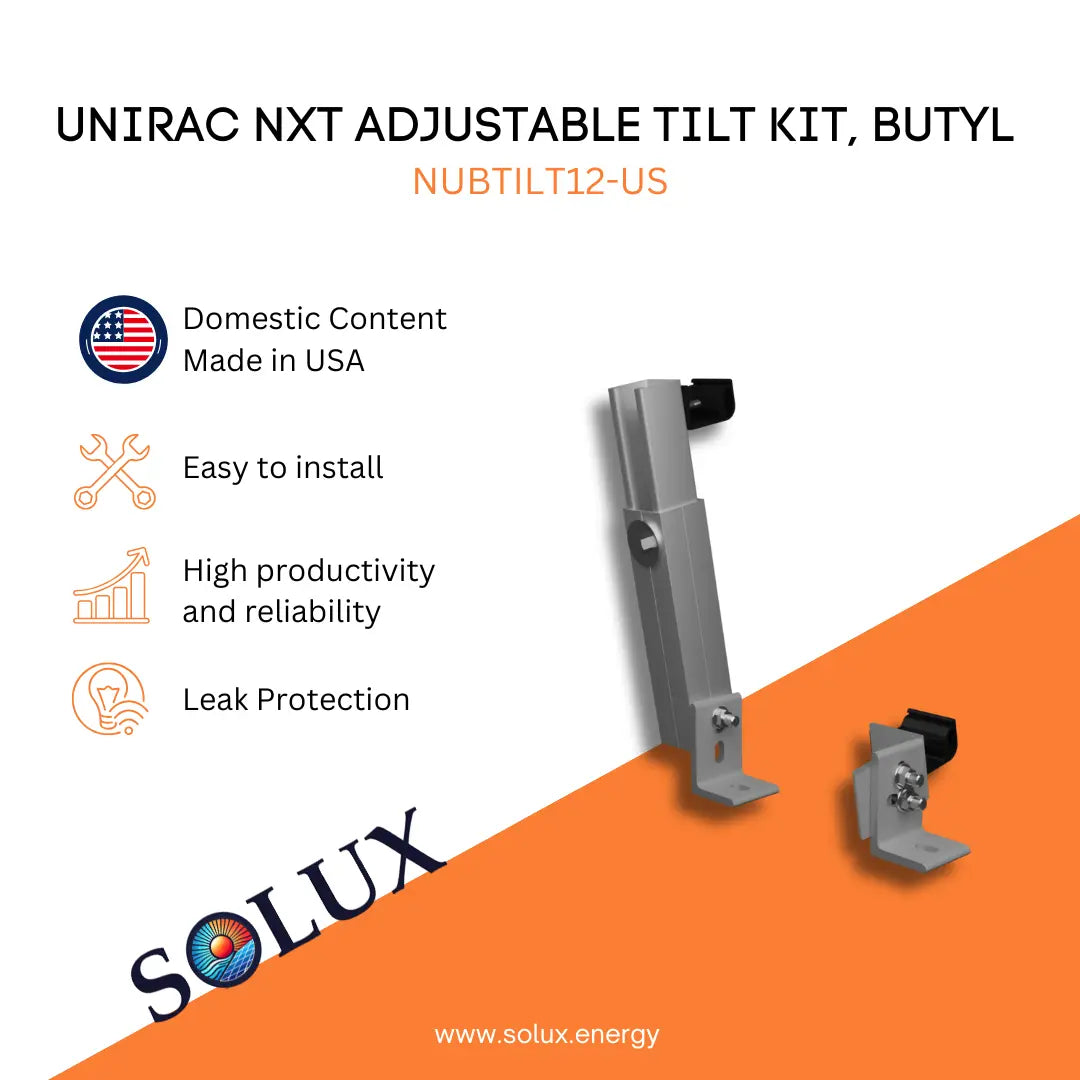

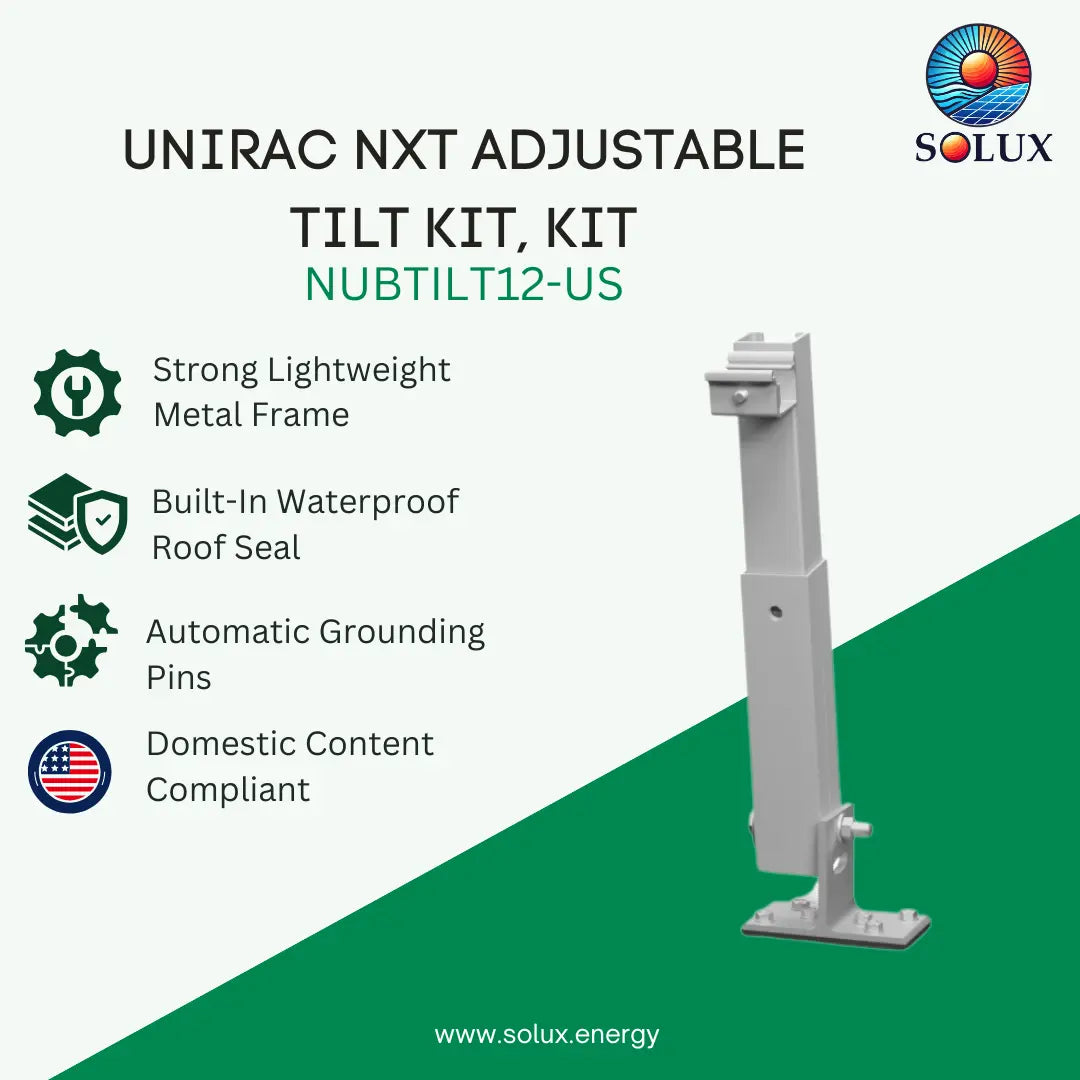

- Unirac NXT ADJ TILT KIT, 12": NUBTILT12-US

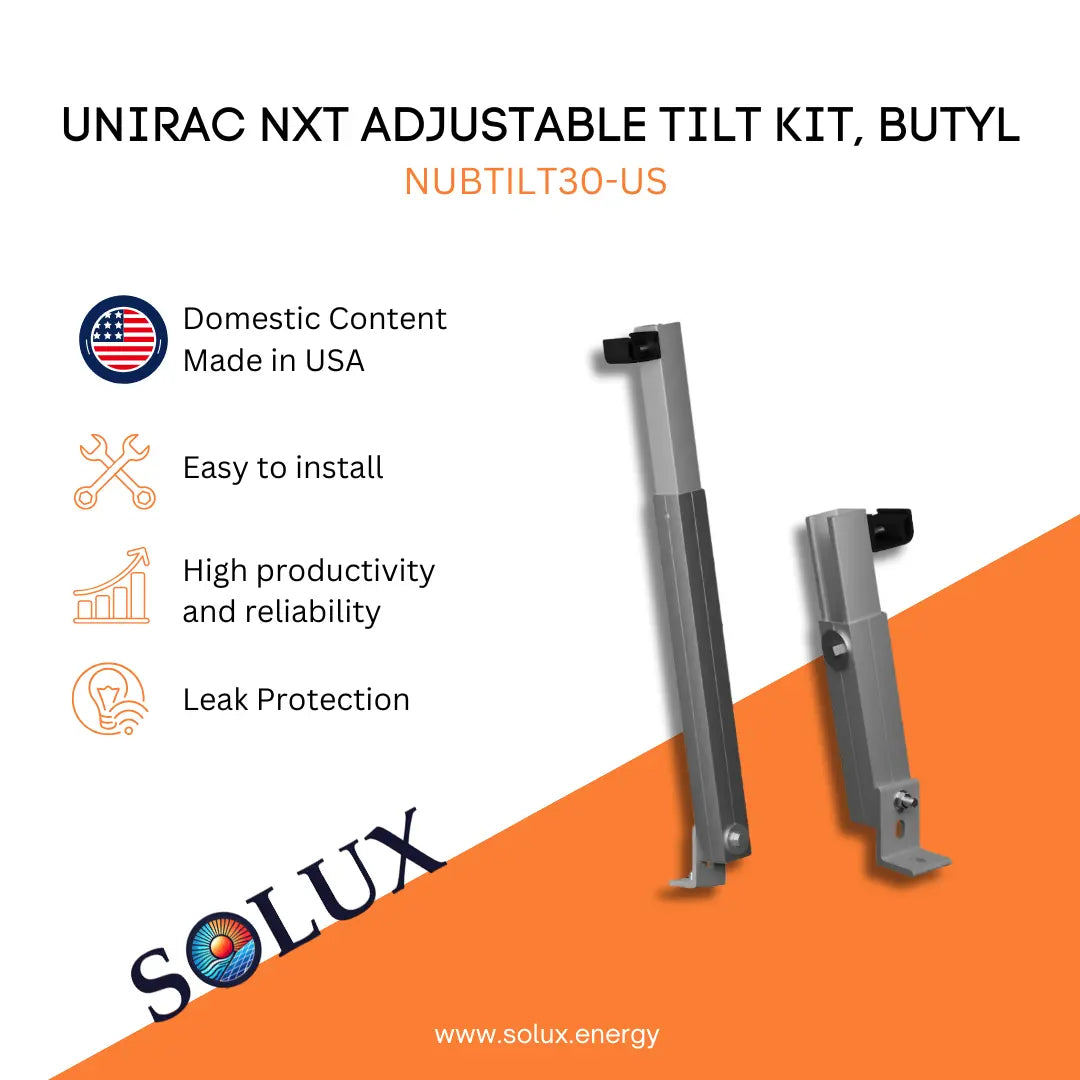

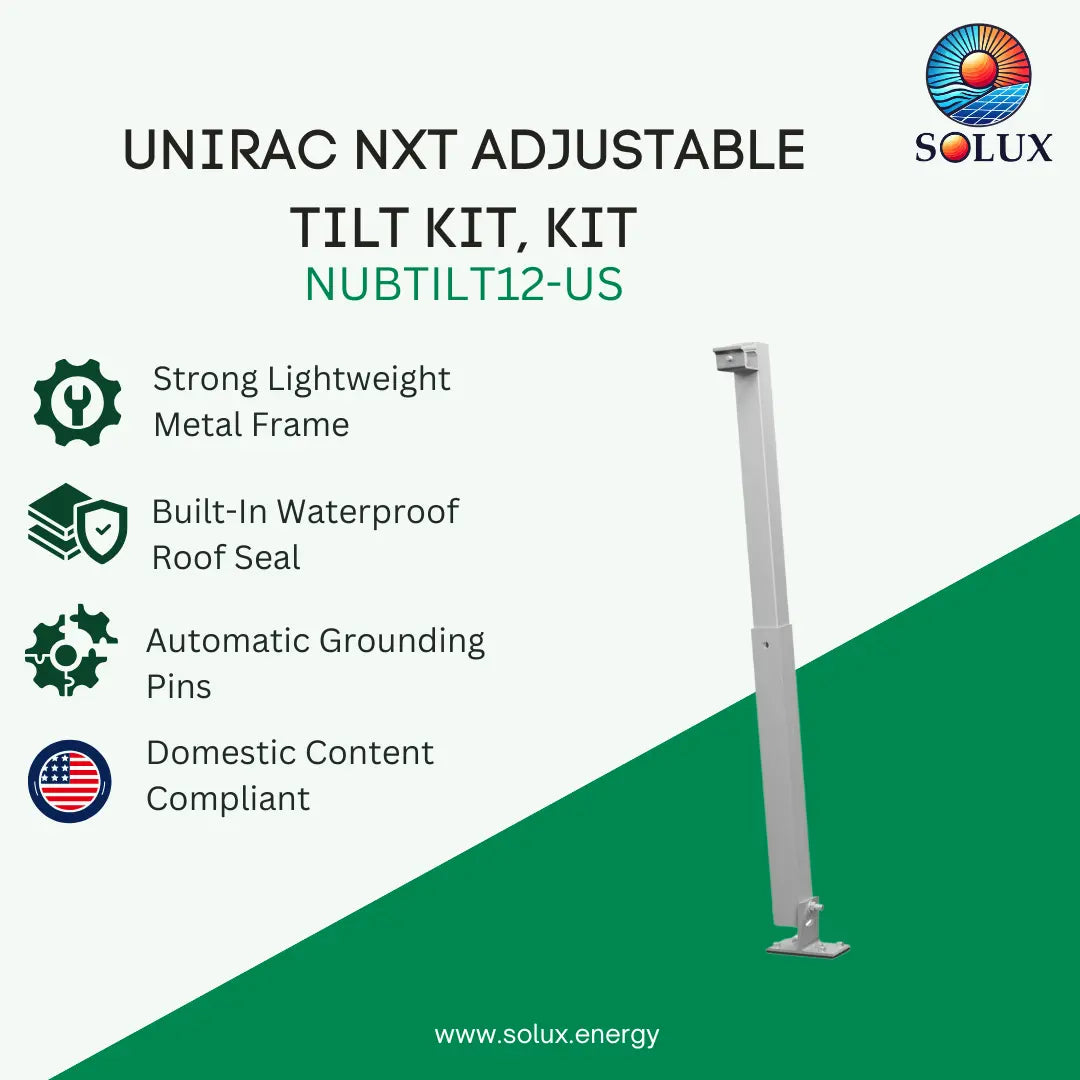

- Unirac NXT ADJ TILT KIT, 30": NUBTILT30-US
Technical Specification:
- Product Type: Adjustable PV tilt-leg kit
- Material: Aluminum & Steel / stainless steel fastening hardware
- Finish: Mill Finish Aluminum
- Application: Tilted installation of photovoltaic modules on rooftops
- Compatible System: NXT UMOUNT/SOLAR MOUNT
- Weight: 1 lb
-
Downloads

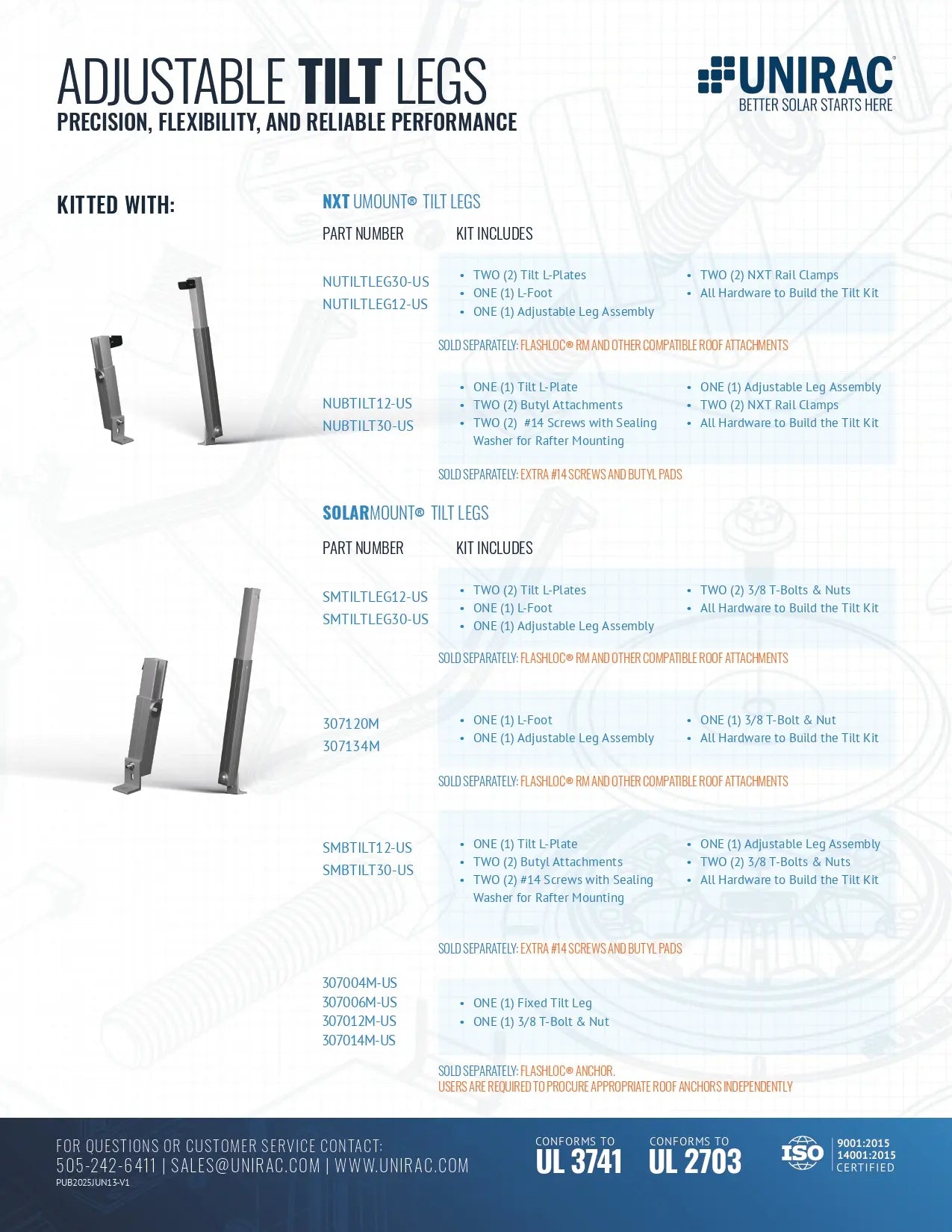

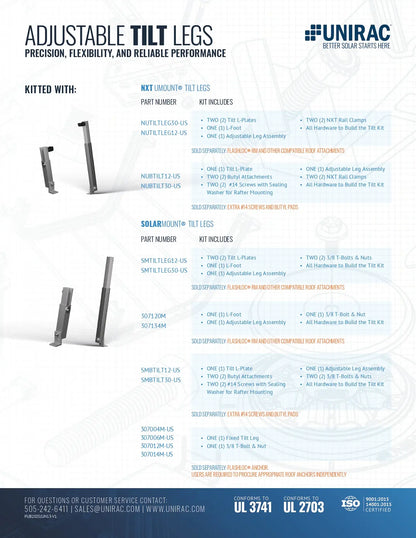

Datasheet
✔️ Datasheet
Quick Installation Guide
No Quick Installation Guide file resource available. Email support@solux.energy for file request.
Warranty
No Warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
